Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSF 1250 Bandit SUZUKI GSF1250SA L2 Bandit (E24) SUZUKI 42 - REAR COMBINATION LAMP

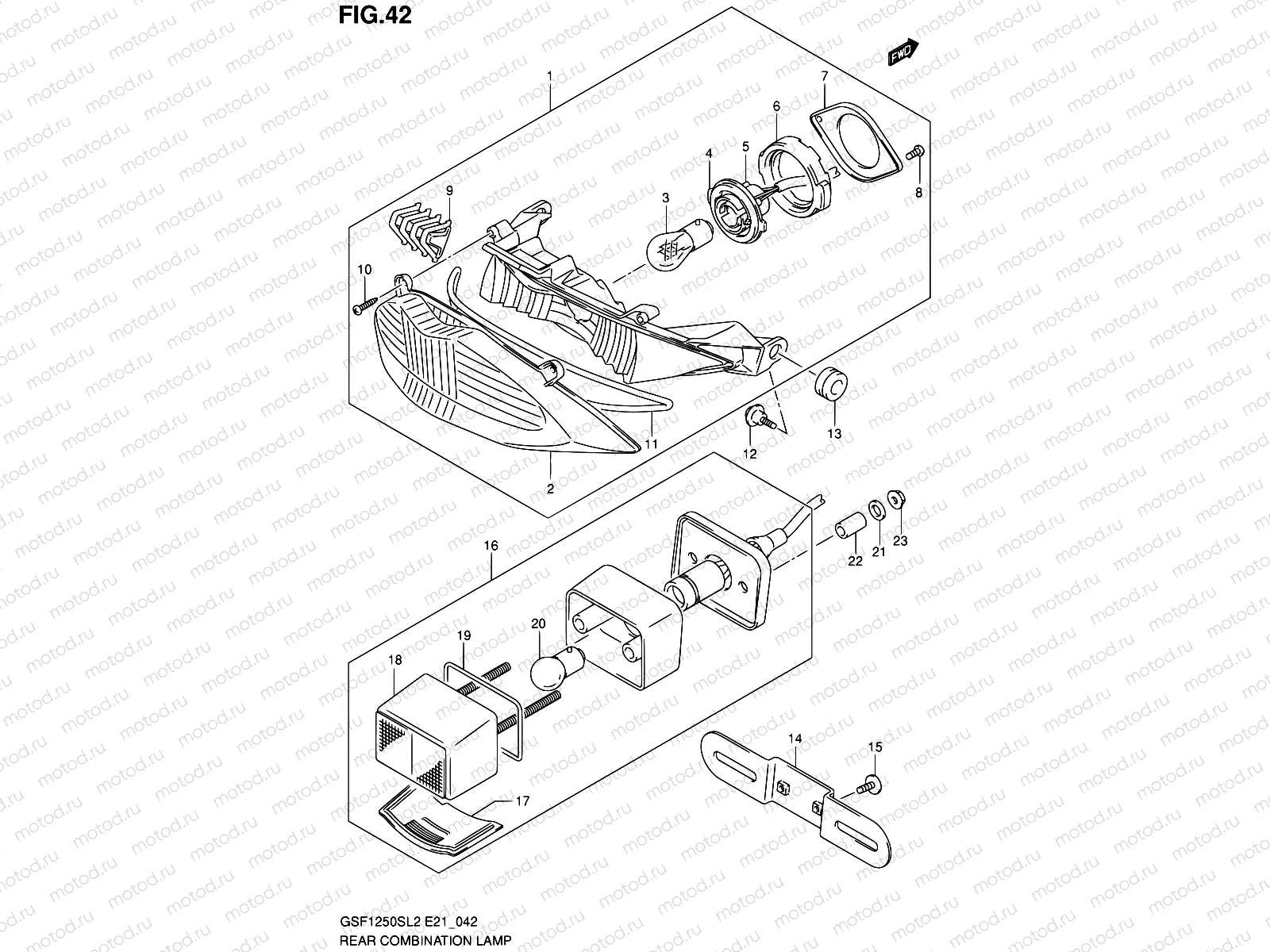

42 - REAR COMBINATION LAMP

42 - REAR COMBINATION LAMP

Например: 35710-38G41

1

35710-38G41

LAMP ASSY,RR COMBINATION

10 753 ₽/шт

2

35712-38G40

Линза

11 386 ₽/шт

3

40503-00838-069

P21/5w,5w, bay1 (12V 21/5W BAY15d)

4

35716-48B21

Пластина

888 ₽/шт

5

35718-38G00

SOCKET & CORD

2 151 ₽/шт

6

35765-48B21

CUSHION

860 ₽/шт

7

35736-48B21

PLATE NO.2

1 212 ₽/шт

8

03211-0412A

Болт

1 060 ₽/шт

9

35716-38G00

CUSHION

997 ₽/шт

10

03211-0416A

Болт

85 ₽/шт

11

35713-38G00

Прокладка

653 ₽/шт

12

09139-05080

SCREW(5X16.2)

1 680 ₽/шт

13

09320-10054

CUSHION

114 ₽/шт

14

35927-29F20

BRACKET,LICENSE PLATE

1 020 ₽/шт

15

09136-06004

БОЛТ

82 ₽/шт

16

35910-41G41

Фонарь подсветки номера

6 256 ₽/шт

17

35912-41G01

LENS,LICENSE LAMP

669 ₽/шт

18

35917-41G00

Крышка

6 885 ₽/шт

19

35913-41G00

Прокладка

567 ₽/шт

20

09471-12140-LCP

Bulb

21

09160-06077

Шайба (6.5X20X1.2)

102 ₽/шт

22

09180-06278

SPACER(6.5X9X33.3)

2 270 ₽/шт

23

08316-1006A

Гайка

85 ₽/шт
