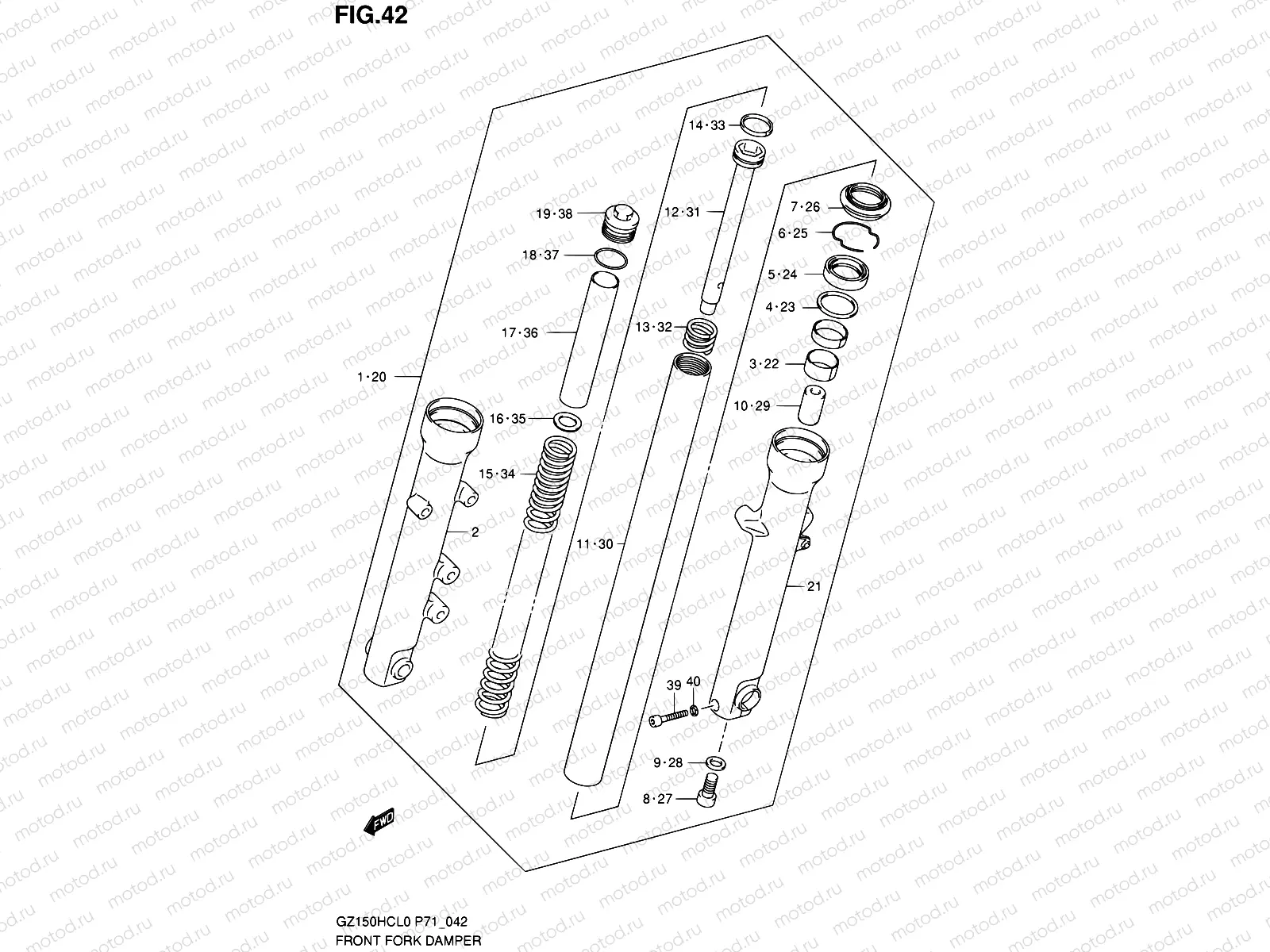

42 - FRONT FORK DAMPER

42 - FRONT FORK DAMPER
Например: 51103-25H00
1
51103-25H00
Damper assy, front fork rh
2
.tube, outer rh
3
.metal, slide
4
.washer
5
.seal, oil
6
.ring, snap
7
.seal, dust
8
.bolt
9
Gasket
10
.piece, oil lock
11
.tube, inner
12
.cylinder
13
.spring, rebound
14
.ring, piston
15
.spring, front
16
.washer
17
.spacer
18
.o ring
19
.cap
20
51104-25H00
Damper assy, front fork lh
21
.tube, outer lh
22
.metal, slide
23
.washer
24
.seal, oil
25
.ring, snap
26
.seal, dust
27
.bolt
28
Gasket
29
.piece, oil lock
30
.tube, inner
31
.cylinder
32
.spring, rebound
33
.ring, piston
34
.spring, front
35
.washer
36
.spacer
37
.o ring
38
.cap
39
.bolt, lh (8x35)
40
.washer, lh
