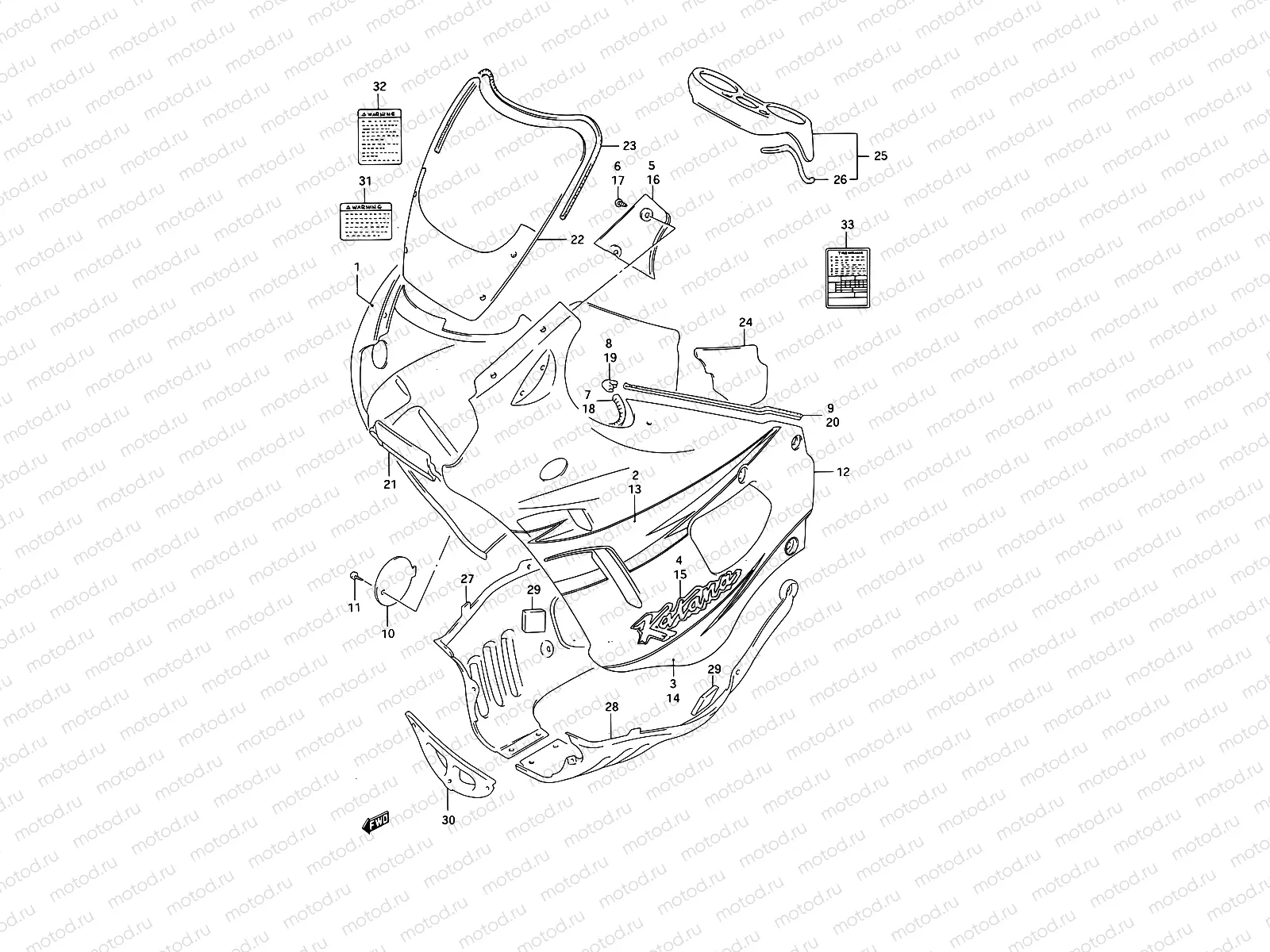

41G - COWLING BODY (MODEL T)

41G - COWLING BODY (MODEL T)

Например: 94401-21CH0-33J

1

94401-21CH0-33J

over assy, cowring rh (black)

1

94401-21CH0-Y98

over assy, cowling rh (green)

2

68685-21C10-Z57

.tape, side upper rh

2

68685-21C10-Z59

Tape,body cowl

3

68686-21C20-Z58

Tape,body cowl

3

68686-21C20-Z61

RH TAPE

4

68681-21C20-E7G

.emblem

4

68681-21C20-E7H

.emblem

5

94433-19C01-33J

over,meter r.s

5

94433-19C01-Y98

METER RH COVER

6

03541-0410A

Болт

85 ₽/шт

7

94631-49310

MOLD,COWLING

8 835 ₽/шт

8

94438-19C00

Joint

9

94635-19C00

MOLDING

918 ₽/шт

10

94435-19C01-33J

LID,OIL

2 463 ₽/шт

10

94435-19C01-Y98

.lid, oil (green)

11

09139-06030

Винт (6X16)

194 ₽/шт

12

94402-21CH0-33J

over assy, cowling lh (black)

12

94402-21CH0-Y98

over assy, cowling lh (green)

13

68695-21C10-Z57

.tape, side upper lh

13

68695-21C10-Z59

LH TAPE

14

68696-21C20-Z58

.tape, side lower lh

14

68696-21C20-Z61

Tape,body cowl

15

68681-21C20-E7G

.emblem

15

68681-21C20-E7H

.emblem

16

94443-19C01-33J

over,meter l.s

16

94443-19C01-Y98

over,meter sid

17

03541-0410A

Болт

85 ₽/шт

18

94631-49310

MOLD,COWLING

8 835 ₽/шт

19

94438-19C00

Joint

20

94635-19C00

MOLDING

918 ₽/шт

21

94421-19C01-33J

PANEL,COWLING CTR

3 324 ₽/шт

21

94421-19C01

PANEL,COWLING CTR(NON PAINT)

2 581 ₽/шт

22

94610-20C60

Screen,wind

23

94631-18D01

Molding,windscr

24

94576-20C00

ushion

24

94586-20C00

RUBBER

25

94420-20C02

over cmp,meter

26

94635-20C00

MOLDING,METER COVER

27

94471-19C00-1TU

over,cwl.under

27

94471-19C00-33J

over under rh

28

94481-19C00-1TU

LH UNDER COVER

28

94481-19C00-33J

OVER,COWLING UNDER,L

17 243 ₽/шт

29

94915-44E00

CUSHION UNER COWL R

578 ₽/шт

30

94475-19C01

over cowling

31

68319-33E11

Ярлык предупреждающий

676 ₽/шт

32

68922-14F01

Label,screen

771 ₽/шт

32

68922-14F31

Label,screen

567 ₽/шт

33

68332-20C31
