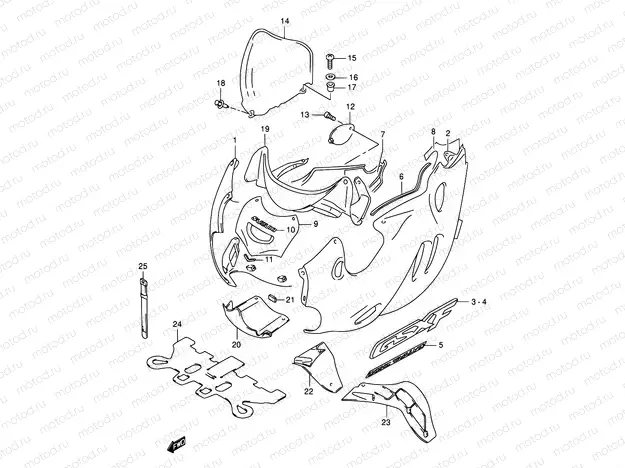

41E - COWLING BODY (MODEL K3)

41E - COWLING BODY (MODEL K3)
Например: 94403-08FF0-33J
1
94403-08FF0-33J
Cowling assy,si
1
94403-08FF0-YU8
COWLING ASSY,SIDE,R
65 450 ₽/шт
2
94404-08FF0-33J
Cowling assy,si
2
94404-08FF0-YU8
COWLING ASSY,SIDE,L
59 466 ₽/шт
3
68681-08F40
Emblem (RH)
4
68691-08F40
Emblem (LH)
5
94631-44110
MOLD,COWLING
4 845 ₽/шт
6
94439-08F00
SHIELD,COWLING COVER,R
6 530 ₽/шт
7
94449-08F00
SHIELD,COWLING COVER,L
6 530 ₽/шт
8
94410-08F00-33J
Panel,cowl ctr.
8
94410-08F00-YU8
Panel,cowl ctr
9
68185-05C10-YD8
Эмблема
1 333 ₽/шт
9
68185-05C10-33J
Emblem,suzuki
10
94413-08F00
CUSHION,CTR PANEL UPR
170 ₽/шт
11
94435-08F00-33J
LID,OIL
70 873 ₽/шт
11
94435-08F00
LID,OIL(NON PAINT)
2 326 ₽/шт
12
09139-06030
Винт (6X16)
194 ₽/шт
13
94611-08F00
WINDSCREEN
28 152 ₽/шт
14
09139-05025
БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ
162 ₽/шт
15
08322-0105B
Шайба
81 ₽/шт
16
94618-48H10
Nut
17
09409-08308-5ES
CLIP(GRAY)
178 ₽/шт
18
94421-08F00
Панель
12 317 ₽/шт
19
94412-08F00
PANEL,COWL CTR,LOWER(NON PAINT
2 737 ₽/шт
19
94412-08F00-YU8
PANEL,COWLING CTR LWR
7 625 ₽/шт
20
94413-08F00
CUSHION,CTR PANEL UPR
170 ₽/шт
21
94461-08F10
PANEL,COWLING INNER,R
8 367 ₽/шт
22
94462-08F10
Panel,cowl inne
23
94451-20C01
PLATE,AIR GUIDE
7 429 ₽/шт
24
09407-18402
Струбцина (L:165)
211 ₽/шт
24
09407-25401
Хомут
221 ₽/шт
