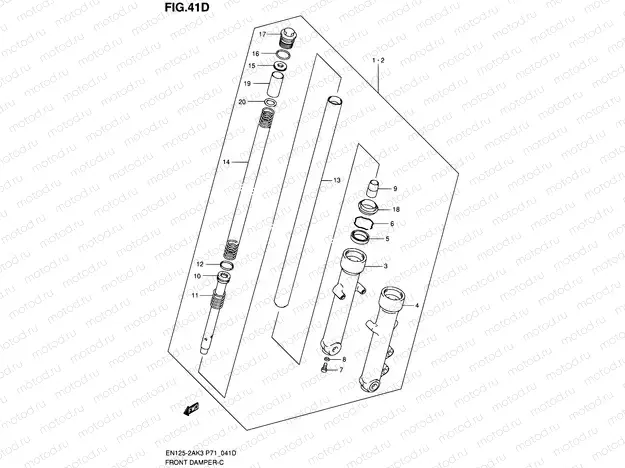

41D - FRONT DAMPER (EN125HUK4) : ORDER FROM DACHANGJIANG (CHINA)

41D - FRONT DAMPER (EN125HUK4) : ORDER FROM DACHANGJIANG (CHINA)

Например: 51103-H45F1-1000

1

51103-H45F1-1000

Damper assy, front fork rh

2

51104-H45F2-1000

Damper assy, front fork lh

3

51130-H45F0-0000

.tube, outer rh

4

51140-H45F5-0000

.tube, outer lh

5

51153-H45F0-0000

.oil seal

6

51156-H45F0-0000

.ring, oil seal stopper

7

51147-H45F0-0000

.bolt

8

51148-H45F0-0000

Gasket

9

51195-H45F0-0000

.piece, oil lock

10

51146-H45F0-1000

.cylinder

11

51177-H45F0-0000

.spring, rebound

12

51182-H45F0-0000

.ring

13

51110-H45F1-1000

.tube, inner

14

51171-H45F0-0000

.spring, main

15

51178-H45F0-0000

.plug

16

51181-H45F0-0000

.o ring

17

51351-H45F0-0000

.cap

18

51173-H45F0-0000

.seal, dust

19

51176-H45F3-0000

.spacer

20

51172-H45F0-0000

.washer
