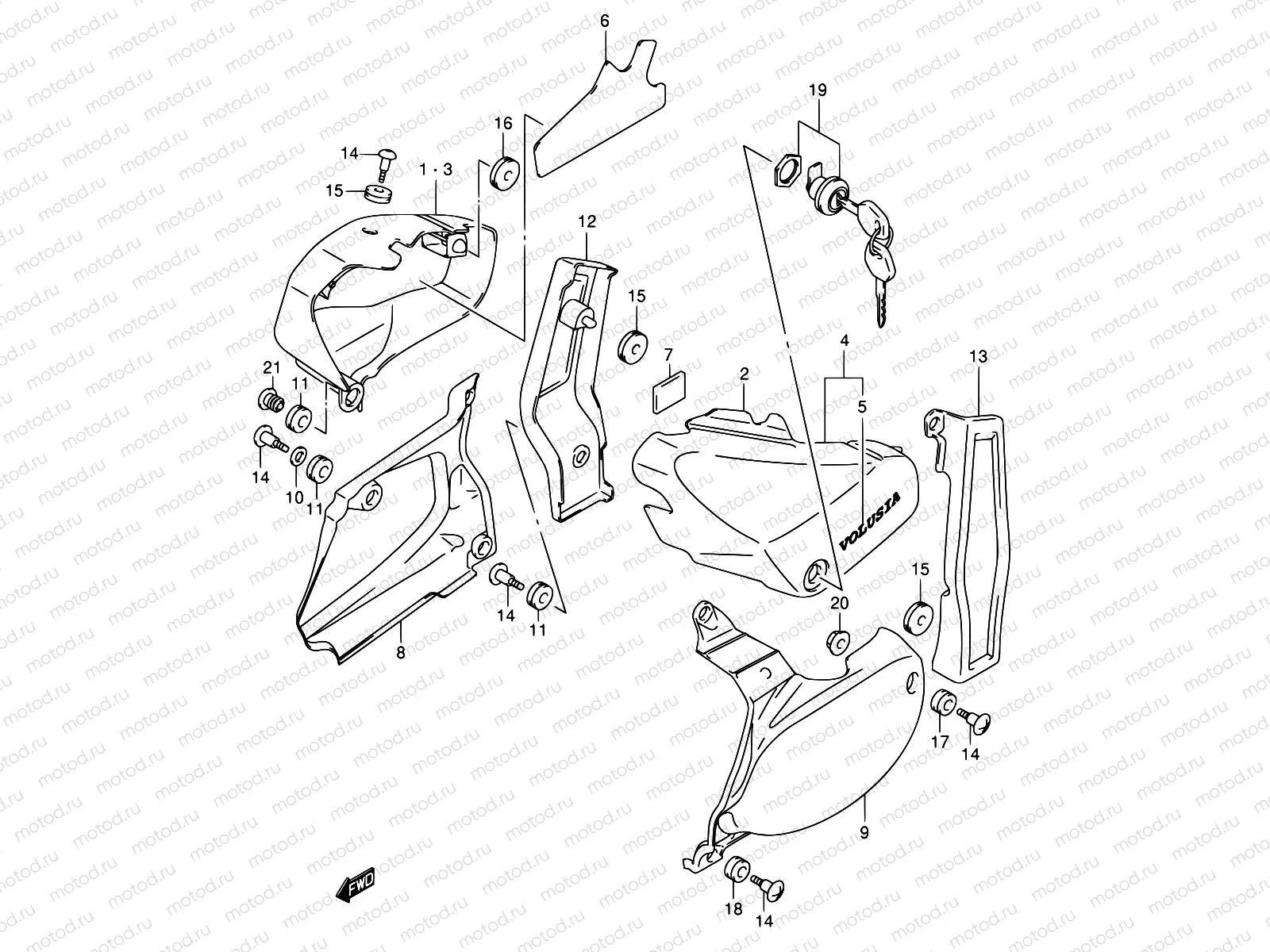

41C - FRAME COVER (MODEL K4)

41C - FRAME COVER (MODEL K4)

Например: 47110-41F31-YAY

1

47110-41F31-YAY

Cover comp,side

1

47110-41F30-YV2

Cover comp,side

1

47110-41F30-YAR

COVER,SIDE,R(BLUE)

19 550 ₽/шт

2

47211-41F01-YAY

Cover,side,l(bl

2

47211-41F01-YV2

Cover,side,l(si

2

47211-41F00-YAR

Cover,side,l

3

47110-41F00-YAU

Cover comp,side

4

47210-41F00-YAU

COVER COMP,SIDE,L

5

68131-41F00-AVY

EMBLEM,FRAME COVER

6

47166-41F00

SHIELD,FRAME COVER

891 ₽/шт

7

93676-80020

PAD,BALANCER UPPER,R

192 ₽/шт

8

47130-41F00

COVER,SIDE LWR,R

14 623 ₽/шт

9

47231-41F00

COVER,SIDE LWR,L

23 265 ₽/шт

10

09160-10123

Шайба

1 250 ₽/шт

11

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

12

47141-41F01-019

COVER,SIDE RR,R

6 999 ₽/шт

13

47241-41F00-019

COVER,SIDE RR,L

5 423 ₽/шт

14

09139-06126

БОЛТ МЕТАЛЛ (6х20)

194 ₽/шт

15

09320-08527

Cushion

1 640 ₽/шт

16

09320-08514

Damper

17

09320-09501

ДЭМПФЕР

1 250 ₽/шт

18

09320-09062

Damper

19

95700-07861

Lock Set,cover

10 892 ₽/шт

20

08319-31067

Гайка

153 ₽/шт

21

56524-23K10
