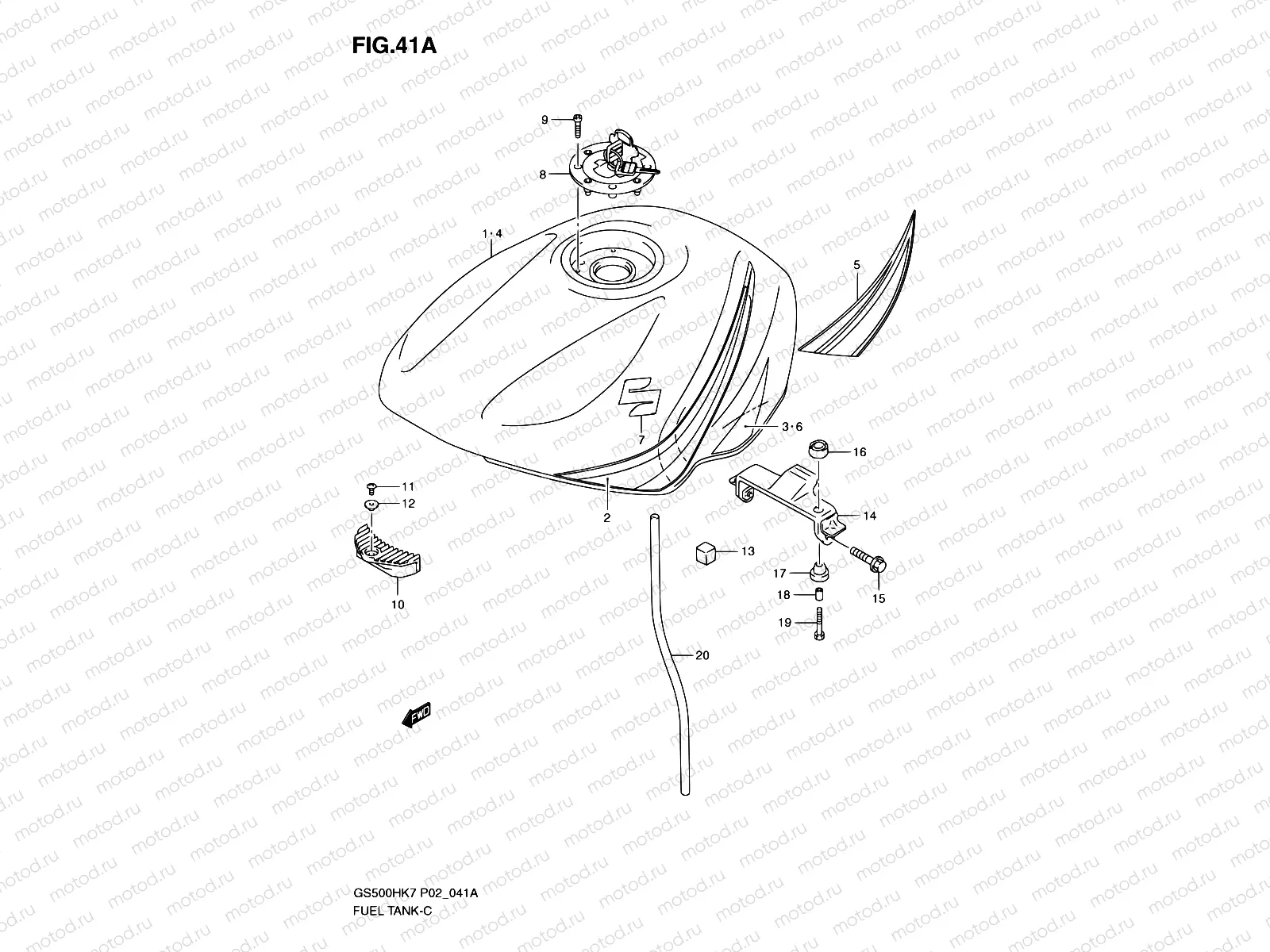

41A - FUEL TANK (MODEL K8)

41A - FUEL TANK (MODEL K8)

Например: 49100-01DA1-YHG

1

49100-01DA1-YHG

TANK ASSY,FUEL(GRAY)

120 054 ₽/шт

1

49100-01DA0-YKY

Fuel tank (Blue)

2

68110-01DE0-BVB

TAPE SET,FUEL TANK

5 630 ₽/шт

2

68110-01DE0-DZD

TAPE SET,FUEL TANK

5 005 ₽/шт

3

68110-01DF0-BPK

TAPE SET,FUEL TANK LWR

5 005 ₽/шт

3

68110-01DF0-CWH

TAPE SET,FUEL TANK LWR

5 005 ₽/шт

4

49100-01DC0-YAY

TANK ASSY,FUEL

4

49100-01DC0-YKY

TANK ASSY,FUEL(BLUE)

90 508 ₽/шт

5

68110-01DG0-FKN

.tape set, upper

5

68110-01DG0-FKM

.tape set, upper

6

68110-01DF0-EPV

.tape set, lower

6

68110-01DF0-CWH

TAPE SET,FUEL TANK LWR

5 005 ₽/шт

7

68111-18G20

ЭМБЛЕМА "S"

1 857 ₽/шт

8

44201-33811

Fuel cap

9

09106-05017

БОЛТ

113 ₽/шт

10

44511-27E00

CUSHION,FUEL TANK FR

867 ₽/шт

11

02142-0510B

SCREW

85 ₽/шт

12

09169-05012

Шайба

1 370 ₽/шт

13

44541-01D01

amper (Fuel tank)

14

44550-01D01

Кронштейн, задний

2 678 ₽/шт

15

01551-0840B

Болт

1 920 ₽/шт

16

09320-14017

CUSHION

114 ₽/шт

17

09320-10038

CUSHION

115 ₽/шт

18

09180-06271

Кольцо/шайба

172 ₽/шт

19

09116-06214

BOLT(6X30)

146 ₽/шт

20

44423-01D00

Hose,water drai
