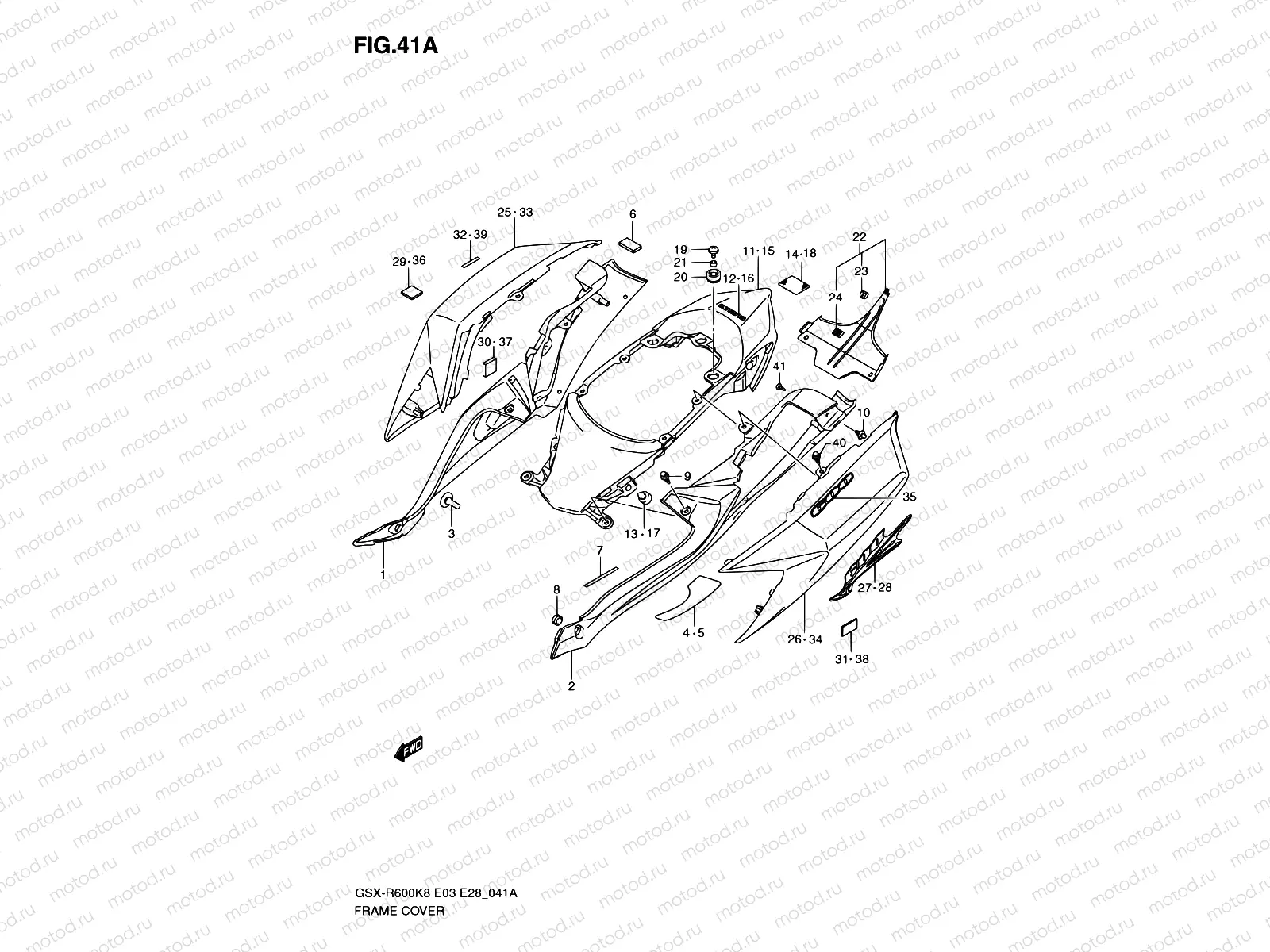

41A - FRAME COVER (MODEL K9)

41A - FRAME COVER (MODEL K9)

Например: 47110-37H00-019

1

47110-37H00-019

Cover comp,fram

1

47110-37H00-YPA

COVER,FRAME,R(WHITE)

14 975 ₽/шт

1

47110-37H00-YKV

Cover comp,fram

1

47110-37H00-YBD

COVER,FRAME,R(WHITE)

14 975 ₽/шт

2

47210-37H00-019

Cover comp,fram

2

47210-37H00-YPA

COVER,FRAME,L(WHITE)

14 975 ₽/шт

2

47210-37H00-YKV

COVER,FRAME,L(BLACK)

14 975 ₽/шт

2

47210-37H00-YBD

COVER,FRAME,L(WHITE)

14 975 ₽/шт

3

09321-06026

САЙЛЕНТБЛОК

170 ₽/шт

4

47112-37H00

TAPE,FRAME COVER,R

1 118 ₽/шт

5

47212-37H00

TAPE,FRAME COVER,L

1 118 ₽/шт

6

47114-37H00

CUSHION,FRAME COVER RR LWR

340 ₽/шт

7

47112-37H00

TAPE,FRAME COVER,R

1 118 ₽/шт

8

47113-37H00

CUSHION,FRAME COVER FR

921 ₽/шт

9

09409-06328

ХОМУТ МАЛЫЙ

291 ₽/шт

10

09409-06314-5PK

КЛИПСА КРЕПЁЖНАЯ, ПЛАСТИК

162 ₽/шт

11

47310-37HA0-YKV

COVER,FRAME CTR

28 152 ₽/шт

12

68131-37HA0-GTT

EMBLEM,SUZUKI

845 ₽/шт

13

09321-10002

CUSHION

162 ₽/шт

14

44572-13G10

Защелка

816 ₽/шт

15

47310-37H00-5WX

COVER,FRAME CTR

28 152 ₽/шт

15

47310-37H00-YME

COVER,FRAME CTR

28 152 ₽/шт

15

47310-37H01-YSF

Cover,frame Ctr

28 152 ₽/шт

16

68131-21H00-YLC

EMBLEM,SUZUKI

845 ₽/шт

16

68131-21H01-019

Emblem,suzuki

845 ₽/шт

16

68131-21H00-YBD

Emblem (White)

17

09321-10002

CUSHION

162 ₽/шт

18

44572-13G10

Защелка

816 ₽/шт

19

09136-06056

Винт (6X16)

85 ₽/шт

20

47312-37H10

Cushion(10x24x1

21

09180-06283

Кольцо/шайба

162 ₽/шт

22

47910-37H00-YKV

COVER,FRAME RR CTR

6 491 ₽/шт

22

47910-37H00-YPA

COVER,FRAME RR CTR

6 491 ₽/шт

22

47910-37H00-YME

COVER,FRAME RR CTR

6 491 ₽/шт

22

47910-37H00-YSF

COVER,FRAME RR CTR

7 140 ₽/шт

23

47913-37H00

CUSHION,FRAME COVER RR CTR

383 ₽/шт

24

47912-37H00

Защелка

289 ₽/шт

25

47710-37HA0-019

COVER,FRAME RR,R

15 914 ₽/шт

25

47710-37HA0-YPA

COVER,FRAME RR,R

15 914 ₽/шт

26

47810-37HA0-019

COVER,FRAME RR,L

15 914 ₽/шт

26

47810-37HA0-YPA

COVER,FRAME RR,L

15 914 ₽/шт

27

68135-37HA0-GTR

PE,FRAME COVER RR,R

1 752 ₽/шт

27

68135-37HA0-GTS

PE,FRAME COVER RR,R

1 752 ₽/шт

28

68145-37HA0-GTR

PE,FRAME COVER RR,L

1 752 ₽/шт

28

68145-37HA0-GTS

PE,FRAME COVER RR,L

1 752 ₽/шт

29

47712-37H00

CUSHION,COVER

383 ₽/шт

30

47713-37H00

CUSHION,SIDE

414 ₽/шт

31

45516-01H00

CUSHION,SEAT TAIL COV LWR

274 ₽/шт

32

45517-16G00

TAPE,SEAT TAIL COVER

884 ₽/шт

33

47710-37H00-019

COVER,FRAME RR,R

15 914 ₽/шт

33

47710-37H01-YSF

Cover,frame Rr,r

13 255 ₽/шт

34

47810-37H00-019

COVER,FRAME RR,L

15 914 ₽/шт

34

47810-37H01-YSF

Cover,frame Rr,l

13 255 ₽/шт

35

68131-37H00-GTW

EMBLEM,FRAME COVER

712 ₽/шт

35

68131-37H01-LV8

Emblem,frame co

36

47712-37H00

CUSHION,COVER

383 ₽/шт

37

47713-37H00

CUSHION,SIDE

414 ₽/шт

38

45516-01H00

CUSHION,SEAT TAIL COV LWR

274 ₽/шт

39

45517-16G00

TAPE,SEAT TAIL COVER

884 ₽/шт

40

09409-06328

ХОМУТ МАЛЫЙ

291 ₽/шт

41

03541-0512A-000

Винт

81 ₽/шт
