Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI AN 650 Burgman SUZUKI AN650A K7 Burgman 650 (E02,E19,E24,E51) SUZUKI (VIN: JS1BU132) 41 - WIRING HARNESS (AN650K6/K7/K8/K9 E24)

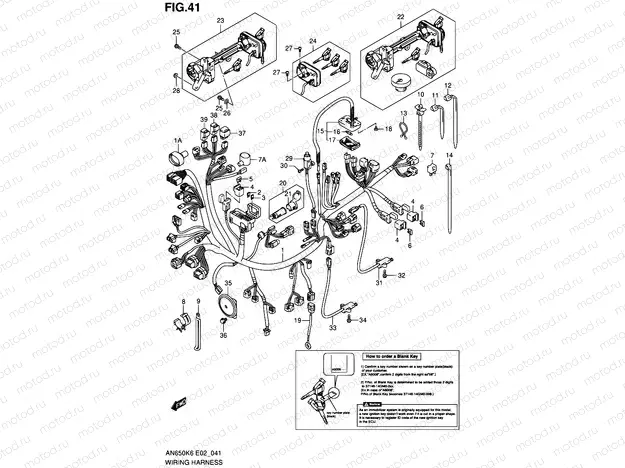

41 - WIRING HARNESS (AN650K6/K7/K8/K9 E24)

41 - WIRING HARNESS (AN650K6/K7/K8/K9 E24)

Например: 36610-19H42

1

36610-19H42

arness, wiring

1

36618-21E00

COVER

688 ₽/шт

2

09481-10504

Ограничитель,10A

1 250 ₽/шт

3

09481-15501-LCP

Fusible (10A)

4

36742-39D00

HOLDER,FUSE

1 052 ₽/шт

5

09481-10010-025

Fusible (10A)

6

09481-40101

FUSE(40A)

4 970 ₽/шт

7

32800-16A00

Диод

1 697 ₽/шт

7

36717-19H00

Boot

8

09403-20403

CLAMP

2 030 ₽/шт

8

09403-25401

CLAMP

2 030 ₽/шт

8

09403-30403

CLAMP

2 270 ₽/шт

9

09404-06039

Clamp(L:65)

194 ₽/шт

10

09407-11402

КОЛЬЦО

186 ₽/шт

10

09407-17402

CLAMP

210 ₽/шт

11

09407-22403

CLAMP(L:220)

1 370 ₽/шт

12

09407-14403

КЛЕММА

221 ₽/шт

12

09407-18402

Струбцина (L:165)

211 ₽/шт

12

09407-25401

Хомут

221 ₽/шт

13

09408-00012

Проводка

1 210 ₽/шт

14

09407-14407

ЗАЖИМ

221 ₽/шт

15

36210-10G00

LAMP ASSY,TRUNK BOX

4 966 ₽/шт

16

09471-12073-LCP

BULB 12V.5W AN650

17

36212-79001

Линза

2 989 ₽/шт

18

03541-0412B

Болт

85 ₽/шт

19

36851-10G00

Wire,oil pressu

20

39410-76F00-P4Z

Гнездо

2 522 ₽/шт

21

39441-76F00-P4Z

COVER

735 ₽/шт

22

37103-10816

Lock Set

54 978 ₽/шт

23

37120-10836

Lock assy,steer

24

37155-10GF3

Shutter, lock a

25

09139-06048

SCREW(6X20)

1 060 ₽/шт

26

09160-06109

Шайба

85 ₽/шт

27

37159-14G00

TORX BOLT(5X10)

446 ₽/шт

28

08316-1006B

Гайка

81 ₽/шт

29

37980-14F00

SWITCH ASSY,TRUNK BOX LAMP

4 966 ₽/шт

30

02112-0516B

Болт

1 090 ₽/шт

31

37840-10G01

Switch Assy,side Stand

8 041 ₽/шт

32

01550-0620B

БОЛТ

81 ₽/шт

33

37840-20E01

Switch Assy,side Stand

9 444 ₽/шт

34

01550-0620B

БОЛТ

81 ₽/шт

35

38500-10G00

Звуковой сигнал

4 927 ₽/шт

36

01550-0812B

Болт

97 ₽/шт

37

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

38

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

39

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт
