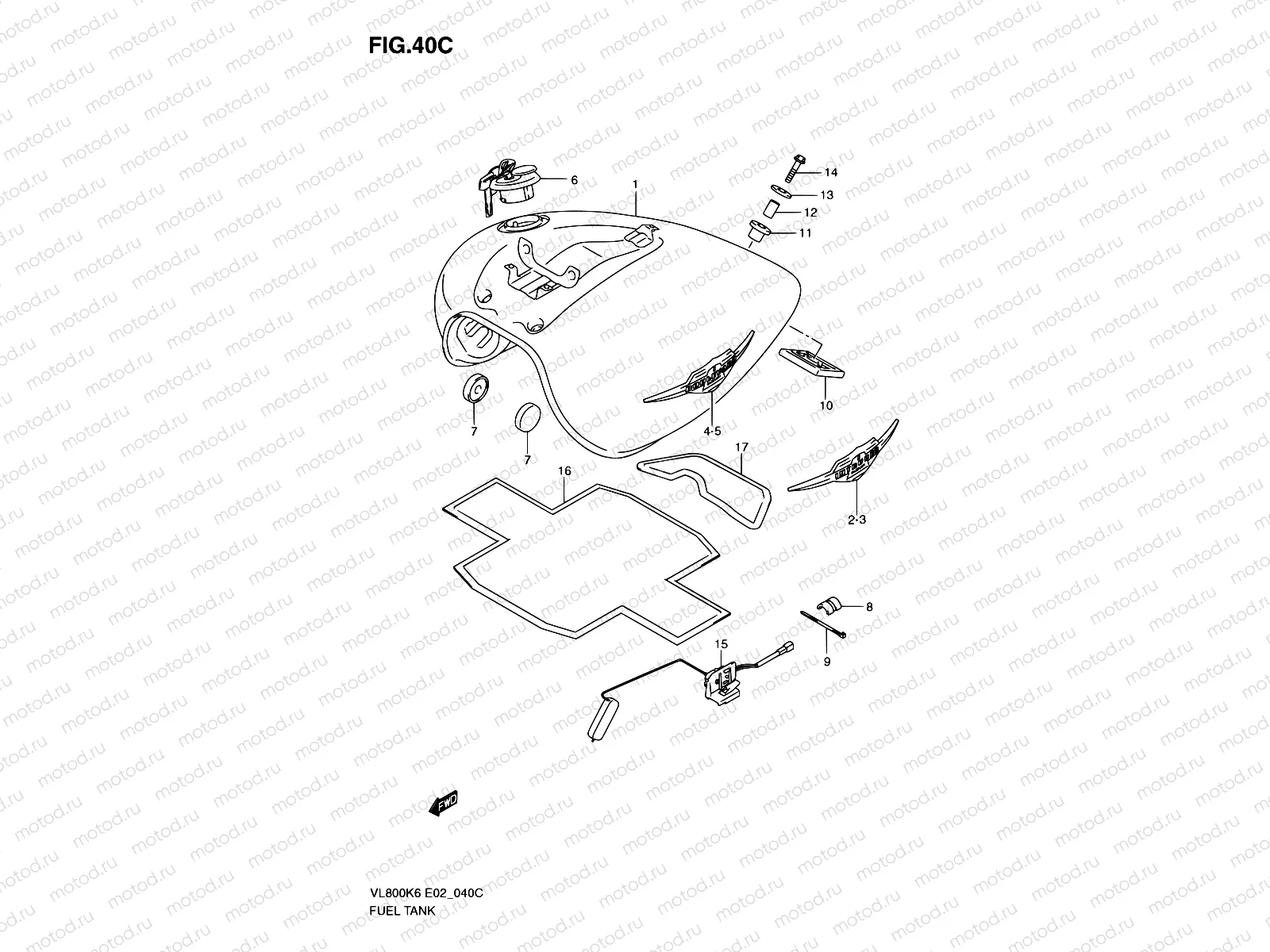

40C - FUEL TANK (MODEL K9)

40C - FUEL TANK (MODEL K9)

Например: 44100-43H10-YAY

1

44100-43H10-YAY

TANK ASSY,FUEL(BLACK)

83 028 ₽/шт

1

44100-43H10-YMK

TANK ASSY,FUEL(RED)

75 174 ₽/шт

1

44100-43HB0-YLF

uel tank (Gray)

1

44100-43HB0-YRE

Fuel tank (Green)

1

44100-43HA0-YLF

Tank assy, fuel

1

44100-43HA0-YRE

TANK ASSY,FUEL(GREEN)

109 956 ₽/шт

2

68111-41F41

EMBLEM,FUEL TANK,R

5 005 ₽/шт

3

68121-41F41

EMBLEM,FUEL TANK,L

5 005 ₽/шт

4

68111-41F31

EMBLEM,FUEL TANK,R

6 792 ₽/шт

5

68121-41F31

EMBLEM,FUEL TANK,L

6 792 ₽/шт

6

44200-41831

Cap Set,fuel Tank Filler

13 940 ₽/шт

7

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

8

44541-14F10

CUSHION,FUEL TANK LWR

438 ₽/шт

9

09407-25402

CLAMP(L:250)

238 ₽/шт

10

44542-41F01

Cushion,fuel Tank Rr Lwr

700 ₽/шт

11

44541-41F02

Cushion,fuel Tank Rear Upper

1 292 ₽/шт

12

09180-08227

ВТУЛКА КРЕПЛЕНИЯ ГЛУШИТЕЛЯ

204 ₽/шт

13

09160-08146

Шайба

162 ₽/шт

14

01550-0835A

Болт

119 ₽/шт

15

34810-41F11

GAUGE ASSY,FUEL LEVEL SENDER

7 077 ₽/шт

16

44192-39G00

SHIELD,FUEL TANK HEAT

7 703 ₽/шт

17

44191-43H00

SHIELD,FUEL TANK HEAT NO.2

4 457 ₽/шт
