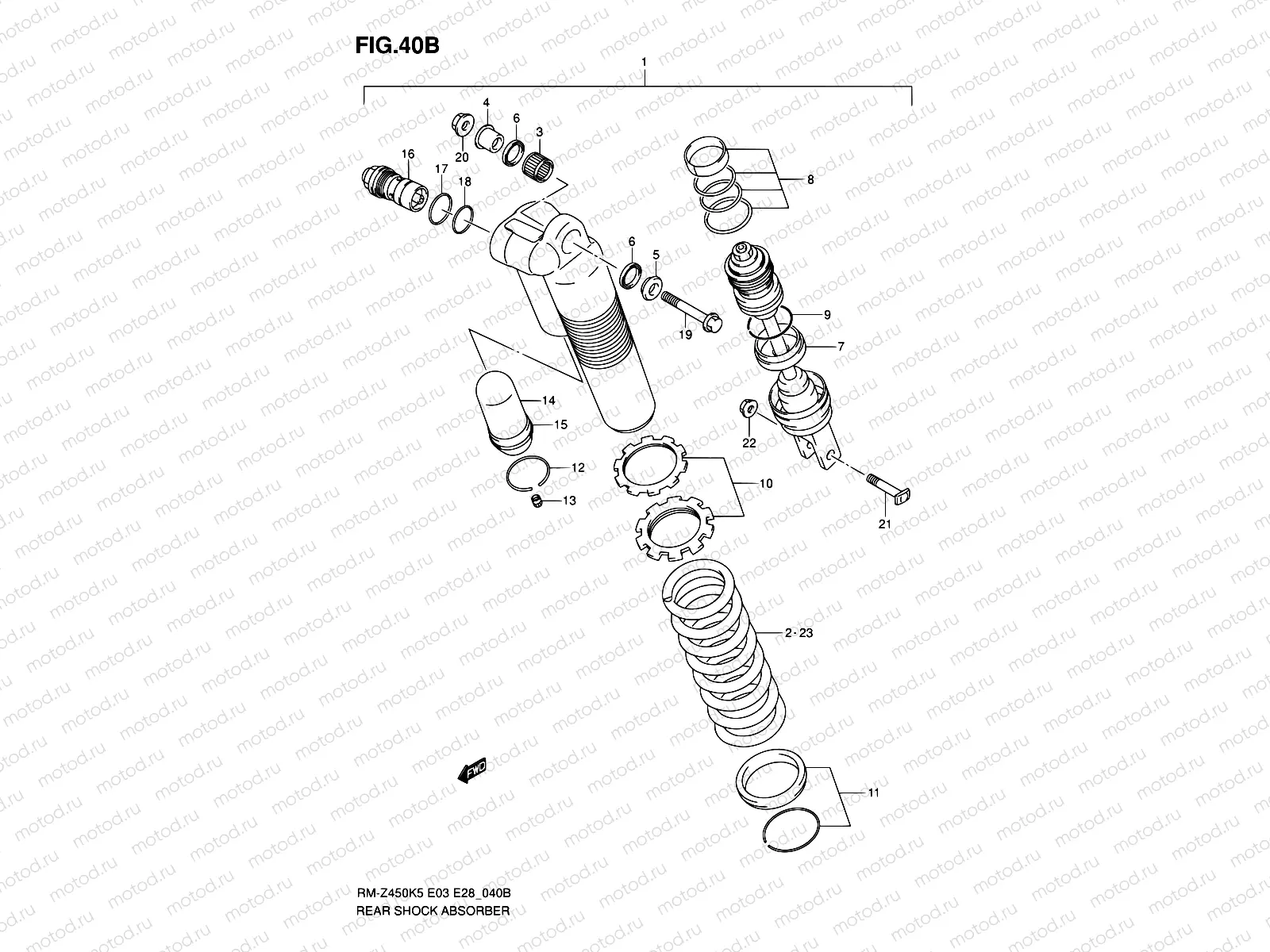

40B - REAR SHOCK ABSORBER (MODEL K7)

40B - REAR SHOCK ABSORBER (MODEL K7)
Например: 62100-35G80-YKS
1
62100-35G80-YKS
Absorber assy,r
1
62100-35G70-YKS
Absorber assy,r
2
62211-37FM0
Пружина
36 950 ₽/шт
3
09263-16033
BEARING(16X22X12)
1 034 ₽/шт
4
62684-36F00
SPACER,UPPER BRG,R
1 066 ₽/шт
5
62685-36F00
SPACER,UPPER BRG,L
775 ₽/шт
6
09284-16005
SEAL,OIL(16X22X2.5)
436 ₽/шт
7
62120-35G60
.rod, piston
8
62150-36EB0
O RING SET
4 118 ₽/шт
9
62279-36E80
Кольцо
442 ₽/шт
10
62190-36F00
Комплект регулятора ручки
6 530 ₽/шт
11
62220-36F00
SPRING SEAT SET
2 210 ₽/шт
12
62278-36E00
Кольцо стопорное
493 ₽/шт
13
51294-20400
CAP
368 ₽/шт
14
62273-36F00
BLADDER
4 457 ₽/шт
15
62275-36E00
CAP,CHAMBER
4 301 ₽/шт
16
62130-35G60
BOLT,PLUG
12 825 ₽/шт
17
62131-28E00
O RING
289 ₽/шт
18
51174-43D00
O RING,CTR BOLT UPR
340 ₽/шт
19
09103-10329
BOLT(10X60)
3 640 ₽/шт
20
09159-10115
Гайка
289 ₽/шт
21
62221-37F30
Болт нижней опоры
399 ₽/шт
22
09159-10067
Гайка, нижняя
3 710 ₽/шт
23
62211-37FK0
Пружина
30 694 ₽/шт
23
62211-37FJ0
Пружина
30 694 ₽/шт
23
62211-35G40
Пружина
30 694 ₽/шт
