Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 500 SUZUKI GS500FH L0 (P24) SUZUKI 40B - FRAME COVER (MODEL K9)

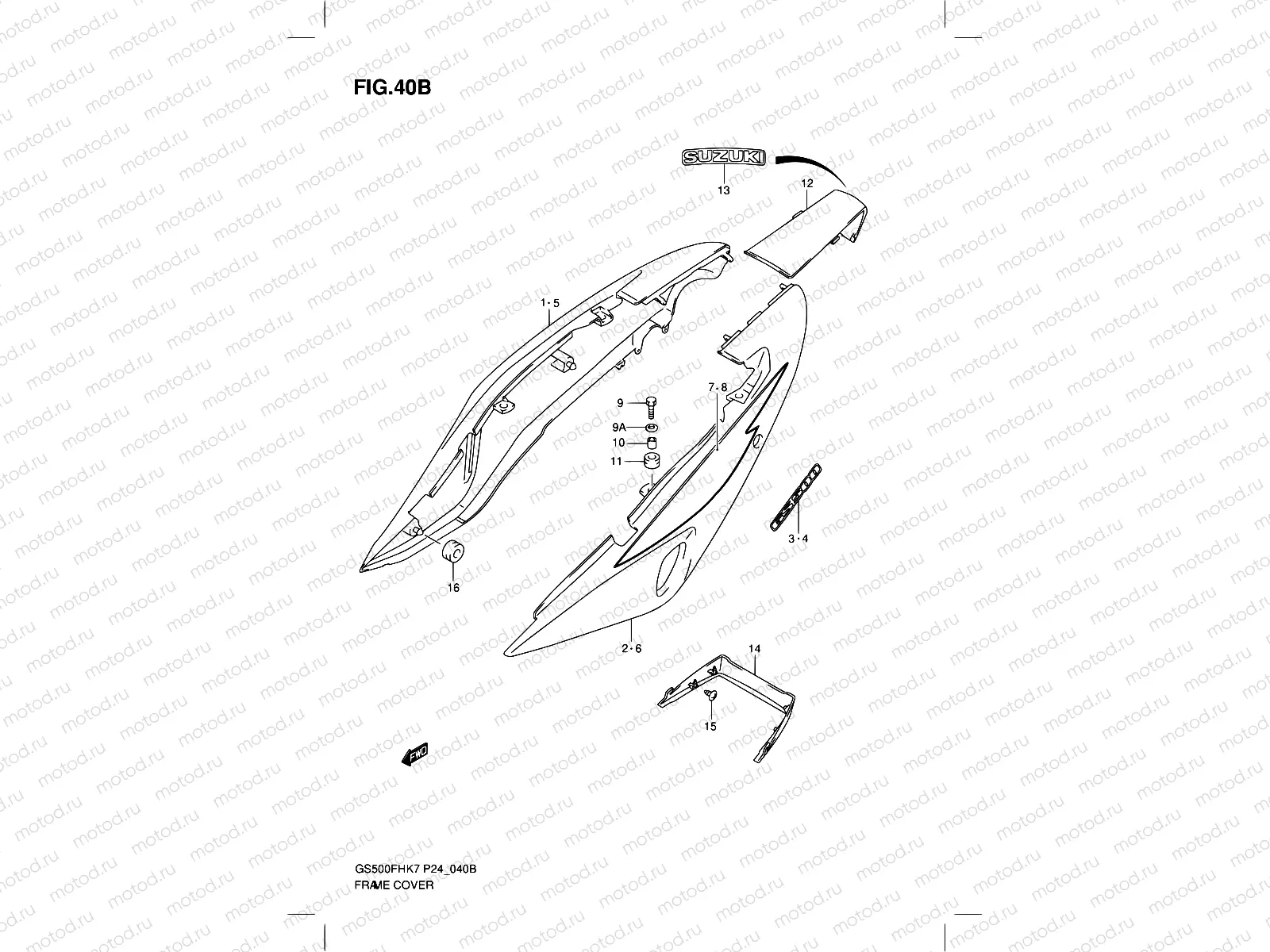

40B - FRAME COVER (MODEL K9)

40B - FRAME COVER (MODEL K9)

Например: 47111-01DA0-YAY

1

47111-01DA0-YAY

Cover, frame rh (black)

17 261 ₽/шт

2

47211-0BE00-NE2

COVER, FRAME LH (BLACK)

3

68131-01D50-GWT

ape, frame cover, r

4

68141-01D50-GWT

ape, frame cover, l

5

47111-01DA0-YBD

Cover, frame rh (white)

26 557 ₽/шт

5

47111-01DA0-YAY

Cover, frame rh (black)

17 261 ₽/шт

6

47211-0BE00-YBD

Cover, frame lh (white)

17 511 ₽/шт

6

47211-0BE00-NE2

COVER, FRAME LH (BLACK)

7

68135-01DL0-BPK

Tape,frame cove

4 830 ₽/шт

7

68135-01DL0-CWH

Tape,frame cove

4 993 ₽/шт

8

68145-01DL0-BPK

Tape,frame cove

4 830 ₽/шт

8

68145-01DL0-CWH

Tape,frame cove

4 993 ₽/шт

9

D1507-0620A

Bolt, gear shift

34 ₽/шт

9

D8322-9106B

Шайба

22 ₽/шт

10

09180-06283

Кольцо/шайба

162 ₽/шт

11

09320-09016

РЕЗИНКА

162 ₽/шт

12

47311-01DA0-YAY

Cover, center (black)

6 639 ₽/шт

12

47311-01DA0-YBD

Cover, center (white)

7 265 ₽/шт

13

68131-01DA0-YD8

Emblem"suzuki"s

4 830 ₽/шт

13

68131-01DA0-019

Emblem"suzuki"b

4 830 ₽/шт

14

47321-01DA0-291

Cover, lower

11 266 ₽/шт

15

03541-0410B

Болт

1 060 ₽/шт

16

09320-08527

Cushion

1 640 ₽/шт
