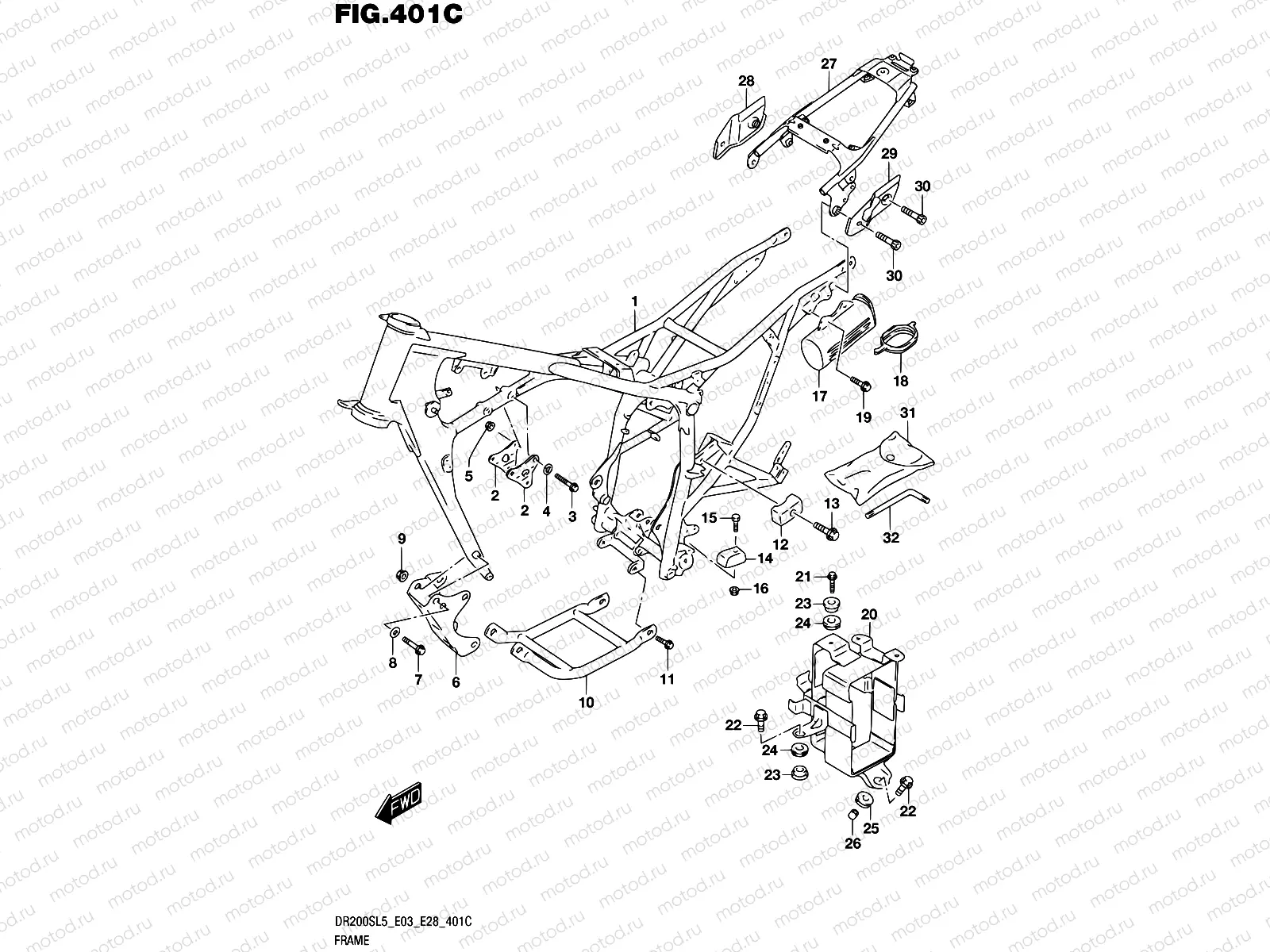

401C - FRAME (DR200SL5 E33)

401C - FRAME (DR200SL5 E33)
Например: 41100-44AP0-YPT
1
41100-44AP0-YPT
FRAME(GRAY)
142 545 ₽/шт
2
41991-42A00-291
PLATE,ENGINE MOUNT UPR
774 ₽/шт
3
09103-08332
BOLT(8X53)
2 310 ₽/шт
4
08321-0108A
Шайба блокирующая
85 ₽/шт
5
08319-3108A-000
Гайка
178 ₽/шт
6
41992-44AA1-YPT
LATE,ENG MTG LWR
3 421 ₽/шт
7
09103-08569
Vis
8
08321-0108A
Шайба блокирующая
85 ₽/шт
9
08319-3108A-000
Гайка
178 ₽/шт
10
42510-44AA0-YPT
ROTECTOR,ENGINE(GRAY)
10 635 ₽/шт
11
01551-1016A
Болт
1 840 ₽/шт
12
43911-44A00
GUIDE,CH CONTROL UPR
1 150 ₽/шт
13
01580-0635B
Болт
1 920 ₽/шт
14
43912-42AA0
GUIDE,CHAIN CONTROL LWR
1 462 ₽/шт
15
02112-06207
ШАЙБА
85 ₽/шт
16
08319-3106B
Гайка
1 490 ₽/шт
17
41551-38201
HOLDER,TOOL
2 111 ₽/шт
18
41552-37210
КРЫШКА ОТСЕКА ИНСТРУМЕНТОВ
969 ₽/шт
19
09116-06165
BOLT(6X16)
1 520 ₽/шт
20
41540-44AA0
HOLDER,BATTERY
7 116 ₽/шт
21
01550-0620B
БОЛТ
81 ₽/шт
22
09118-06086
Болт 6X25
1 680 ₽/шт
23
09169-06065
Шайба
2 150 ₽/шт
24
09320-08510
Втулка резиновая (8.5X20X8)
194 ₽/шт
25
09320-10501
САЙЛЕНТБЛОК
321 ₽/шт
26
09180-06285
Кольцо/шайба
170 ₽/шт
27
41200-49J00
RAIL,SEAT
11 847 ₽/шт
28
42651-49J00
Plate, rear frame, rh
29
42661-49J00
PLATE,REAR FRAME,L
1 478 ₽/шт
30
07130-0816B
БОЛТ
2 030 ₽/шт
31
09800-21104
Tool assy
32
09816-00059
HEXAGON SPANNER,5
391 ₽/шт
