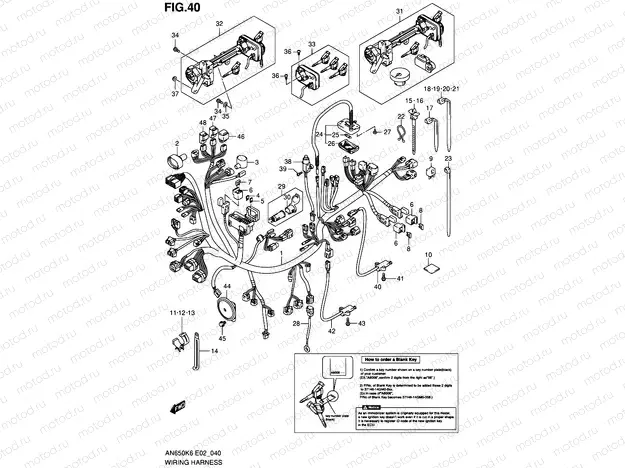

40 - WIRING HARNESS (AN650K6/K7/K8/K9/L0 E02/E19/P37)

40 - WIRING HARNESS (AN650K6/K7/K8/K9/L0 E02/E19/P37)

Например: 36610-19H12

1

36610-19H12

arness wire

1

36610-13J01

Harness wire

2

36618-21E00

COVER

688 ₽/шт

3

36717-19H00

Boot

4

09481-10504

Ограничитель,10A

1 250 ₽/шт

5

09481-15501-LCP

Fusible (10A)

6

36742-39D00

HOLDER,FUSE

1 052 ₽/шт

7

09481-10010-025

Fusible (10A)

7

09481-10015-025

Fusible (15A)

8

09481-40101

FUSE(40A)

4 970 ₽/шт

9

32800-16A00

Диод

1 697 ₽/шт

11

09403-20403

CLAMP

2 030 ₽/шт

12

09403-25401

CLAMP

2 030 ₽/шт

13

09403-30403

CLAMP

2 270 ₽/шт

14

09404-06039

Clamp(L:65)

194 ₽/шт

15

09407-11402

КОЛЬЦО

186 ₽/шт

16

09407-17402

CLAMP

210 ₽/шт

17

09407-22403

CLAMP(L:220)

1 370 ₽/шт

18

09407-14403

КЛЕММА

221 ₽/шт

19

09407-14403

КЛЕММА

221 ₽/шт

20

09407-18402

Струбцина (L:165)

211 ₽/шт

21

09407-25401

Хомут

221 ₽/шт

22

09408-00012

Проводка

1 210 ₽/шт

23

09407-14407

ЗАЖИМ

221 ₽/шт

24

36210-10G00

LAMP ASSY,TRUNK BOX

4 966 ₽/шт

25

09471-12073-LCP

BULB 12V.5W AN650

26

36212-79001

Линза

2 989 ₽/шт

27

03541-0412B

Болт

85 ₽/шт

28

36851-10G00

Wire,oil pressu

29

39410-76F00-P4Z

Гнездо

2 522 ₽/шт

30

39441-76F00-P4Z

COVER

735 ₽/шт

31

37103-10816

Lock Set

54 978 ₽/шт

31

37103-10833

Zár szett

32

37120-10836

Lock assy,steer

32

37120-10854

LOCK ASSY,STEERING SET

50 308 ₽/шт

33

37155-10GF3

Shutter, lock a

33

37155-10G01

SHUTTER,STEERING LOCK

14 858 ₽/шт

34

09139-06048

SCREW(6X20)

1 060 ₽/шт

35

09160-06109

Шайба

85 ₽/шт

36

37159-14G00

TORX BOLT(5X10)

446 ₽/шт

37

08316-1006B

Гайка

81 ₽/шт

38

37980-14F00

SWITCH ASSY,TRUNK BOX LAMP

4 966 ₽/шт

39

02112-0516B

Болт

1 090 ₽/шт

40

37840-10G01

Switch Assy,side Stand

8 041 ₽/шт

41

01550-0620B

БОЛТ

81 ₽/шт

42

37840-20E01

Switch Assy,side Stand

9 444 ₽/шт

43

01550-0620B

БОЛТ

81 ₽/шт

44

38500-10G00

Звуковой сигнал

4 927 ₽/шт

45

01550-0812B

Болт

97 ₽/шт

46

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

47

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

48

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт
