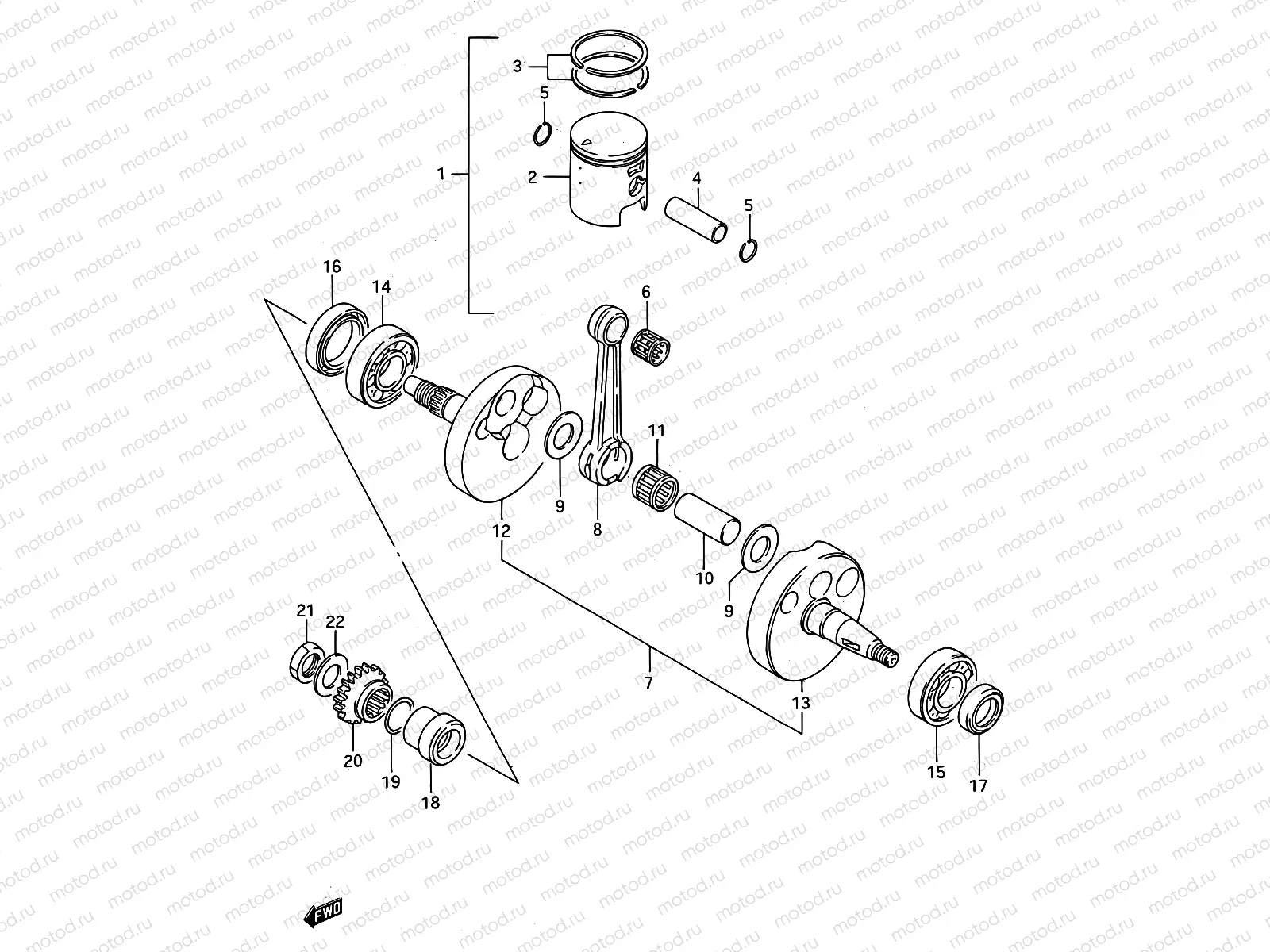

4 - CRANKSHAFT (MODEL G/H)

4 - CRANKSHAFT (MODEL G/H)
Например: 12102-02811
1
12102-02811
Piston (STD)
1
12101-02820-050
Piston kit (os:0.5)
1
12101-02820-100
Piston kit (os:1.0)
2
12110-02B01
Piston
2 882 ₽/шт
2
12110-02B01-050
Piston (os:0.5)
2
12110-02B01-100
Piston (os:1.0)
3
12140-02B10
Ring set,piston
3
12140-02B10-050
Ring set, piston (os:0.5)
3
12140-02B10-100
Ring set, piston (os:1.0)
4
12151-20910
Палец поршня
833 ₽/шт
5
09381-14001
КОЛЬЦО СТОПОРНОЕ
113 ₽/шт
6
09263-14016
ПОДШИПНИК
1 024 ₽/шт
7
12200-02B10
KRUKASSET
8
12161-02B00
Connecting rod
9
09160-18016
Шайба
5 000 ₽/шт
10
12211-02B42
Pin,crank
11
09263-18026-0C0
Bearing
12
12221-02B02
CRANK SHAFT,RH
13
12261-02B01
.crankshaft, lh
14
09262-20082
ПОДШИПНИК
1 535 ₽/шт
15
09262-20083
BEARING(20X47X14)
3 030 ₽/шт
16
09289-32003
SEAL,OIL(32X44X8)
938 ₽/шт
17
09283-18004
SEAL,OIL(18X30X8)
678 ₽/шт
18
12359-02B00
Spacer, pri drive gear
19
09280-20004
Кольцо крыльчатки
97 ₽/шт
20
21111-02B01
Gear, primary drive (nt:18)
21
09140-16027
Гайка
3 400 ₽/шт
22
09164-16002
Шайба
1 880 ₽/шт
