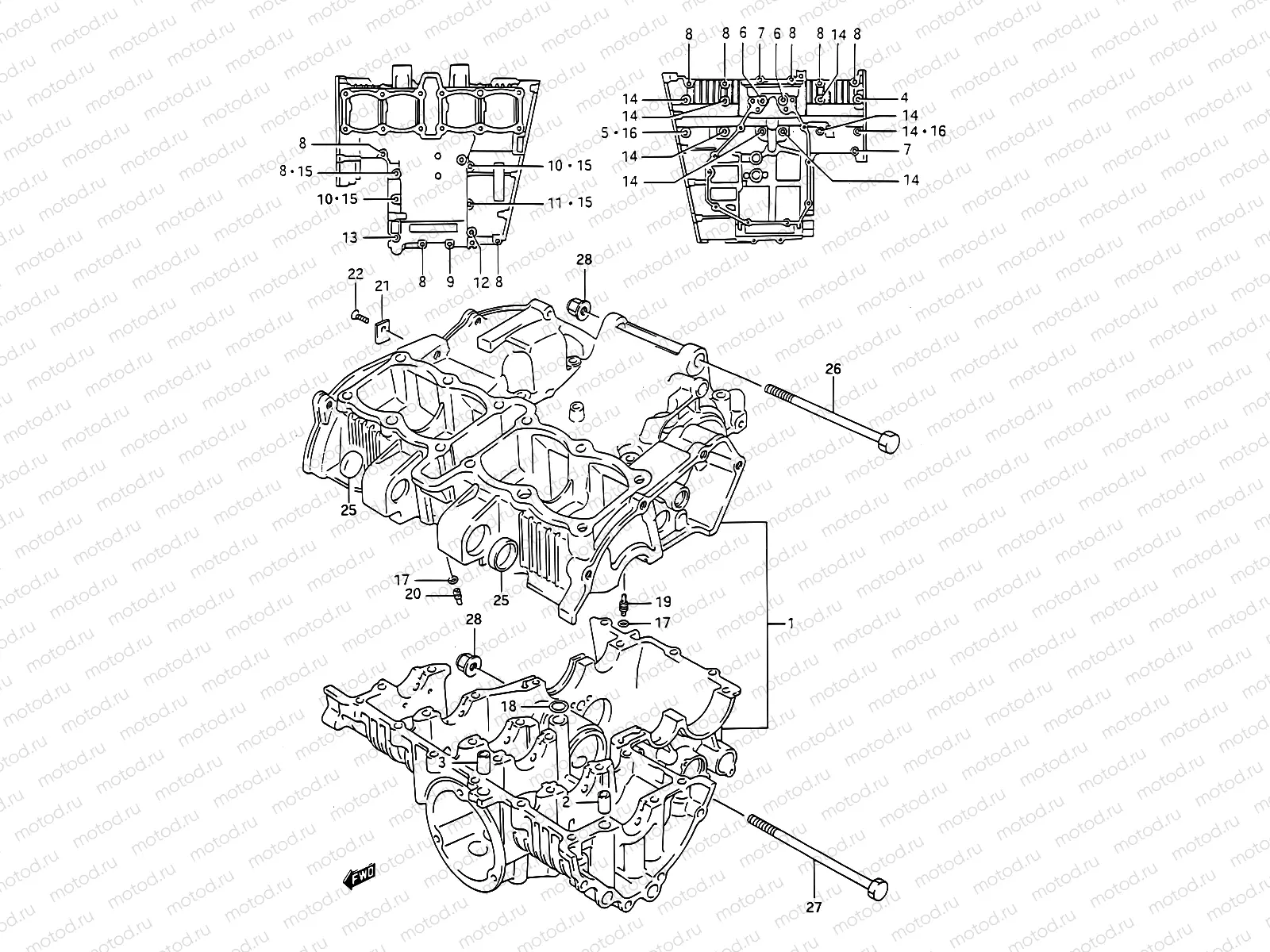

4 - CRANKCASE

4 - CRANKCASE
Например: 11300-10862
1
11300-10862
Crankcase set
2
09206-11017
PIN(8.4X11X20)
4 380 ₽/шт
3
09206-13004
ВТУЛКА
1 370 ₽/шт
4
09103-08239
.bolt (8x110)
5
09103-08179
BOLT(8X105)
3 400 ₽/шт
6
07130-0855B
Болт
2 310 ₽/шт
7
01550-0630A
БОЛТ
102 ₽/шт
8
01550-0635B
Болт
112 ₽/шт
9
01550-0645A
Болт
102 ₽/шт
10
01550-0655B
Болт
97 ₽/шт
11
01550-0665A
Болт
1 840 ₽/шт
12
01550-0670B
Болт
2 030 ₽/шт
13
01550-0855A
БОЛТ РЕССОРЫ, МЕТАЛЛ
129 ₽/шт
14
09103-08105
BOLT(8X95)
1 880 ₽/шт
15
09168-06018
Прокладка
119 ₽/шт
16
09168-08016
Прокладка
129 ₽/шт
17
09280-04004
O RING(D:1.2,ID:4.0)
194 ₽/шт
18
09280-13004
КОЛЬЦО УПЛОТНИТЕЛЬНОЕ, РЕЗИНА
178 ₽/шт
19
09493-80005
JET(8)
1 131 ₽/шт
20
09493-80007
JET,OIL
1 118 ₽/шт
21
11319-34200
.plate, oil gallery plug
22
02122-0616B
Болт
85 ₽/шт
23
12228-43414
PLATE,CRANK THRUST
307 ₽/шт
24
12228-43411
PLATE,CRANK THRUST
669 ₽/шт
24
12228-43412
PLATE,CRANK THRUST
669 ₽/шт
24
12228-43413
PLATE,CRANK THRUST
669 ₽/шт
24
12228-43414
PLATE,CRANK THRUST
307 ₽/шт
24
12228-43415
BEARING,THRUST
669 ₽/шт
24
12228-43416
PLATE,CRANK THRUST
669 ₽/шт
25
09241-25005
PLUG(OD:25)
2 270 ₽/шт
26
09103-10142
BOLT(10X135)
5 590 ₽/шт
27
09103-10241
BOLT(10X143)
4 850 ₽/шт
28
09159-10115
Гайка
289 ₽/шт
