Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI GW 250 Inazuma SUZUKI GW250 L4 Inazuma (P21) SUZUKI (VIN: LC6DC111) 4 - CRANKCASE

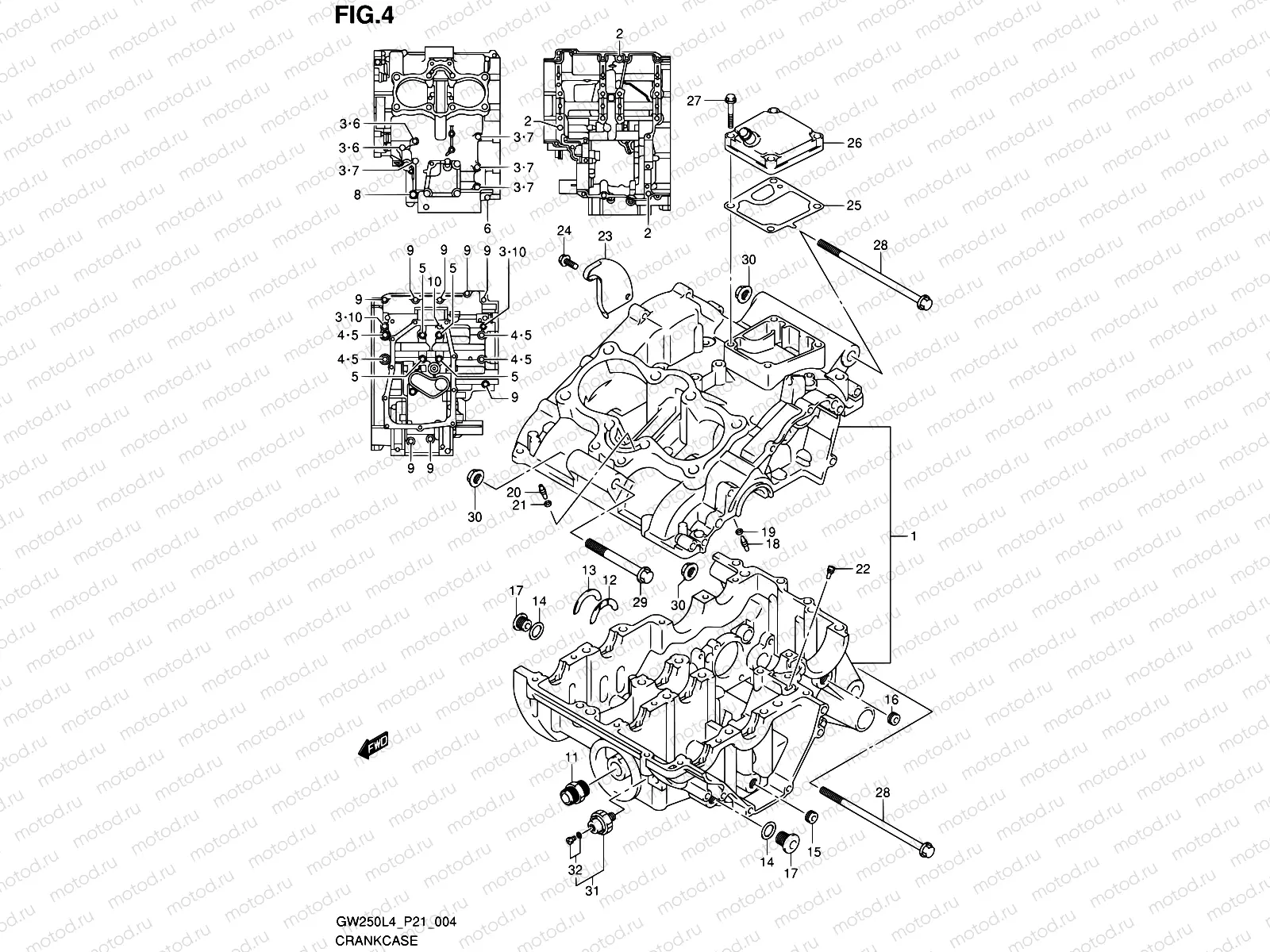

4 - CRANKCASE

4 - CRANKCASE

Например: 11300-48871

1

11300-48871

Картер

60 588 ₽/шт

2

04211-11169

PIN

113 ₽/шт

3

09168-06L04

GASKET(5.8X13X1.8)

550 ₽/шт

4

09168-08035

GASKET(8.2X14X1)

660 ₽/шт

5

09103-08133

BOLT(8X105)

2 540 ₽/шт

6

01547-0635A

БОЛТ

97 ₽/шт

7

01547-0655A

БОЛТ

1 410 ₽/шт

8

01550-0855A

БОЛТ РЕССОРЫ, МЕТАЛЛ

129 ₽/шт

9

01547-0635A

БОЛТ

97 ₽/шт

10

01547-0690B

БОЛТ

1 920 ₽/шт

11

16591-48H00

UNION,OIL FILTER STAND

215 ₽/шт

12

12228-17E00-0E0

BEARING,CRANK THRUST(YELLOW)

468 ₽/шт

13

12228-17E00-0F0

BEARING,CRANK THRUST(WHITE)

468 ₽/шт

13

12228-17E00-0G0

BEARING,CRANK THRUST(ORANGE)

594 ₽/шт

13

12228-17E00-0H0

BEARING,CRANK THRUST(PINK)

594 ₽/шт

13

12228-17E00-0J0

BEARING,CRANK THRUST(BROWN)

594 ₽/шт

13

12228-17E00-0K0

BEARING,CRANK THRUST(PURPLE)

594 ₽/шт

13

12228-17E00-0L0

BEARING,CRANK THRUST(NO COLOR)

594 ₽/шт

14

09168-14L01

GASKET(13.8X18.8X4.8)

85 ₽/шт

15

11322-48H00

PLUG,OIL GALLERY

274 ₽/шт

16

11322-48H00

PLUG,OIL GALLERY

274 ₽/шт

17

09248-14013

ШЛАНГ

2 310 ₽/шт

18

11390-48H00

JET,PISTON COOLING

543 ₽/шт

19

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

20

11329-48H00

JET,OIL GALLERY CYLINDER

282 ₽/шт

21

09280-04004

O RING(D:1.2,ID:4.0)

194 ₽/шт

22

11313-48H00

JET,T/M COOLING

254 ₽/шт

23

11317-48H00

PLATE,OIL SEPARATOR

231 ₽/шт

24

01547-0612A

БОЛТ

81 ₽/шт

25

11318-48H00

GASKET,BREATHER COVER(NA)

258 ₽/шт

26

11330-48H00

Cover,breather

27

01547-0630A

БОЛТ

97 ₽/шт

28

09103-10115

BOLT(10X155)

7 980 ₽/шт

29

09103-10445

BOLT(10X85)

2 890 ₽/шт

30

09159-10L06

Гайка

740 ₽/шт

31

37820-33D10

Датчик давления масла

4 764 ₽/шт

32

37822-33D00

BOLT,OIL PRESSURE SWITCH

339 ₽/шт
