Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI RM 85 SUZUKI RM85L K6 (P03,P28) SUZUKI 3A - EXHAUST VALVE (MODEL K5/K6)

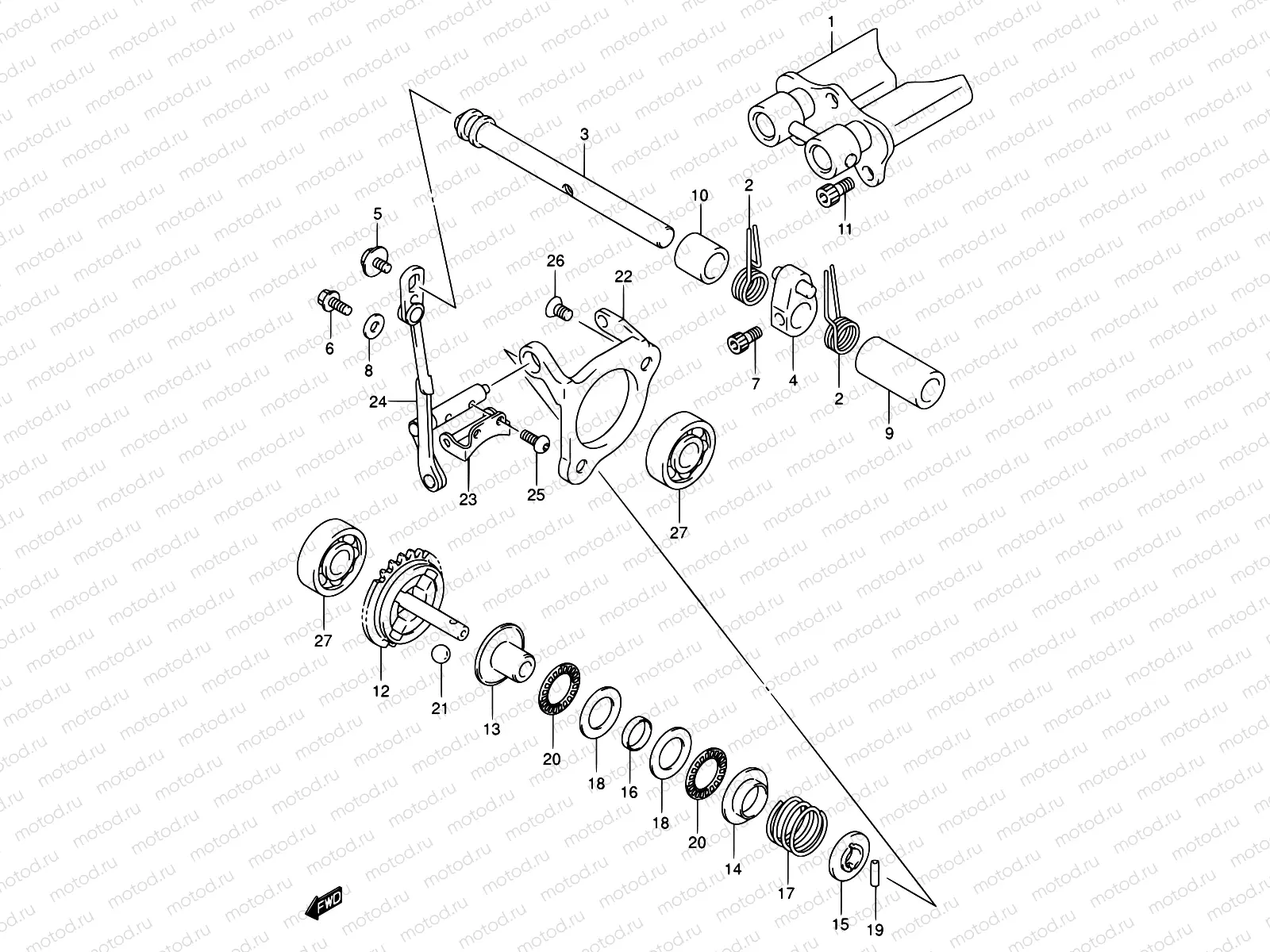

3A - EXHAUST VALVE (MODEL K5/K6)

3A - EXHAUST VALVE (MODEL K5/K6)

Например: 11250-03B10

1

11250-03B10

VALVE ASSY,EXHAUST VALVE

21 896 ₽/шт

2

11257-36F11

SPRING,EXHAUST VALVE SHAFT ARM

391 ₽/шт

3

11259-03B10

SHAFT,EXHAUST VALVE

3 558 ₽/шт

4

11270-36F10

ARM,EXHAUST VALVE SHAFT

3 480 ₽/шт

5

09103-05022

BOLT(5X10)

1 060 ₽/шт

6

09103-06256

BOLT(6X10)

1 250 ₽/шт

7

09106-04003

BOLT(4X8)

1 060 ₽/шт

8

09160-06128

Шайба

1 170 ₽/шт

9

09180-08138

SPACER(8.4X12X13)

1 330 ₽/шт

10

09180-08189

SPACER(8.5X12X11)

1 490 ₽/шт

11

07130-0512B

БОЛТ

102 ₽/шт

12

12670-03810

GOVERNOR SET,EXHAUST

5 670 ₽/шт

13

12672-36F10

GOVERNOR,DRIVEN

1 924 ₽/шт

14

12674-36F10

STOPPER,GOVERNOR SPRING NO.1

1 415 ₽/шт

15

12675-36F11

STOPPER,GOVERNOR SPRING NO.2

1 048 ₽/шт

16

12676-36F10

SPACER,GOVERNOR

884 ₽/шт

17

12677-03B00

SPRING,GOVERNOR

258 ₽/шт

18

09181-15223

SHIM(15X28X1)

194 ₽/шт

19

09261-03017

СТЕРЖЕНЬ

97 ₽/шт

20

09263-15003

Подшипник 15X28X2

532 ₽/шт

21

06111-12004

BALL

119 ₽/шт

22

12681-03B00

ASE,ACTUATOR

3 617 ₽/шт

23

12682-36F21

ARM,ACTUATOR

493 ₽/шт

24

12689-03B10

ACTUATOR,EXHAUST VALVE

3 128 ₽/шт

25

09106-04004

BOLT(4X8)

1 060 ₽/шт

26

09120-05003

SCREW(5X10)

97 ₽/шт

27

09262-08005

BEARING(8X22X7)

743 ₽/шт
