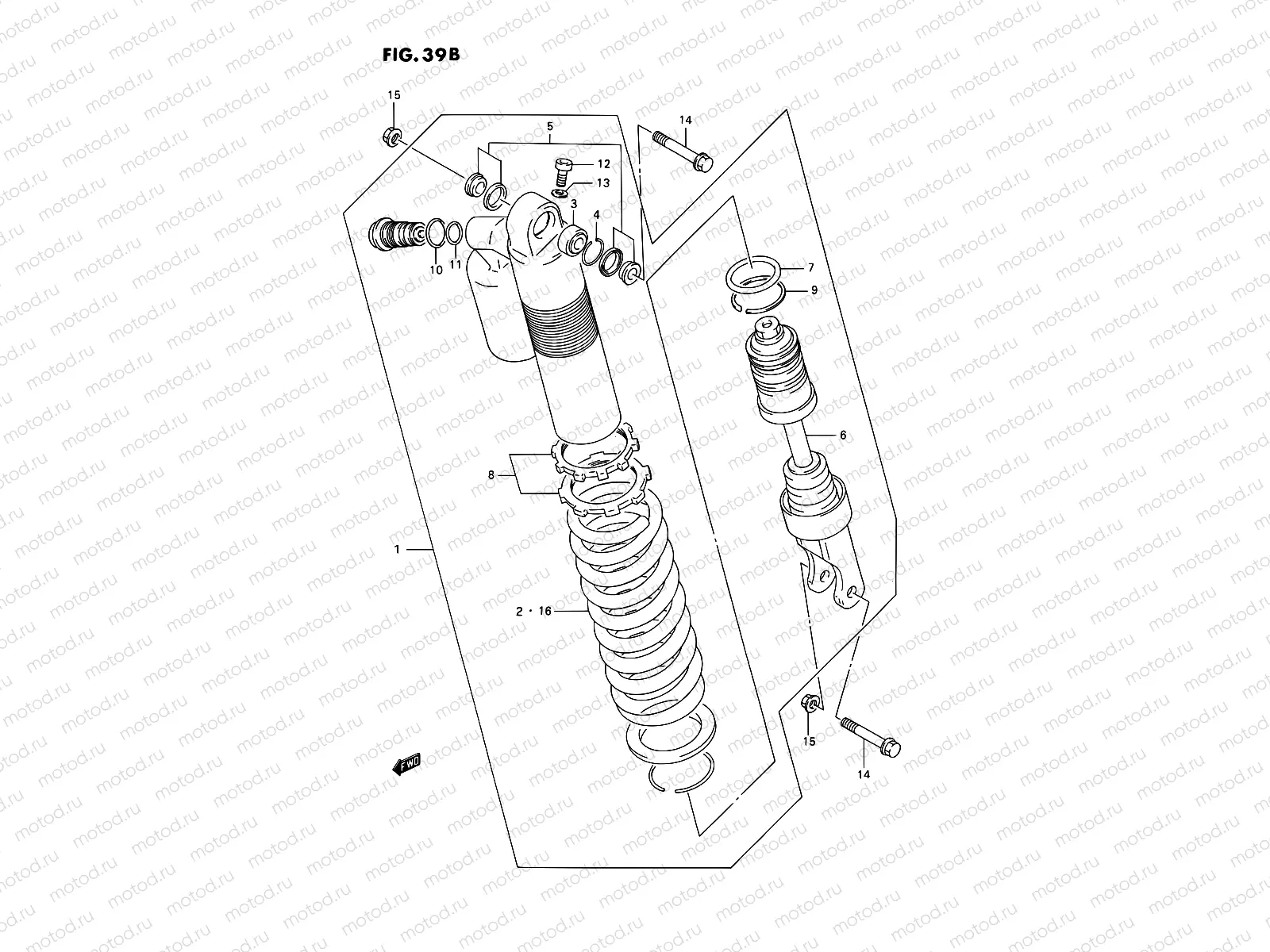

39B - SHOCK ABSORBER (MODEL P/R/S/T)

39B - SHOCK ABSORBER (MODEL P/R/S/T)
Например: 62100-29E51-163
1
62100-29E51-163
Absorber assy, rear shock (yellow)
2
62211-28C70-1TS
pring (hard,k=5.2)
3
62175-43D00
BEARING,RR CUSHION LEVER RR
5 982 ₽/шт
4
62277-27C40
Кольцо стопорное
187 ₽/шт
5
62680-28E00
COLLAR SET,RR SHOCK ABSORBER
3 519 ₽/шт
6
62120-29E50
.rod, piston
7
62153-43B00
O RING
827 ₽/шт
8
62190-28E00
Adjuster set
9
62279-27C40
Кольцо
170 ₽/шт
10
62131-27C40
O RING
340 ₽/шт
11
51175-03B30
O RING
301 ₽/шт
12
62281-27C40
Vis
13
51183-31030
Прокладка
210 ₽/шт
14
62311-28E00
BOLT,RR SHOCK ABSORBER
414 ₽/шт
15
09159-10115
Гайка
289 ₽/шт
16
62211-28C80-163
16
62211-27C90
Spring (soft) (k=5.0)
