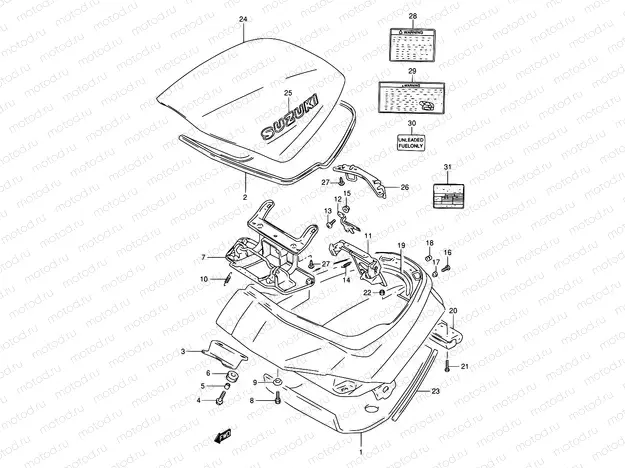

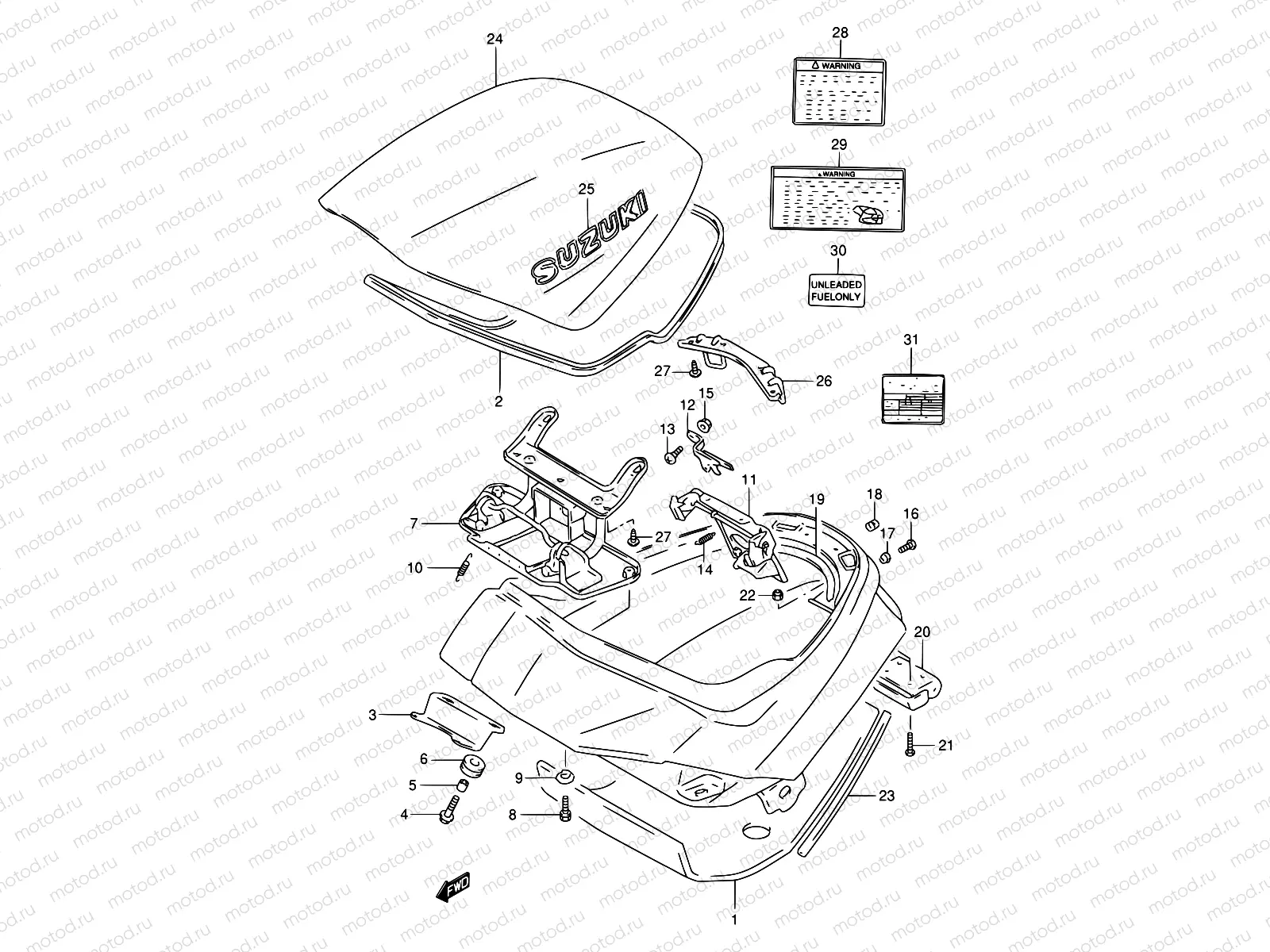

39A - TRUNK (MODEL N)

39A - TRUNK (MODEL N)
Например: 93100-24D30-19A
0
93100-24D30-19A
Trunk assy (red)
1
93115-24D01
.seat, trunk outer
2
93131-24D01
.molding
3
93136-24D00
PLATE,TRUNK FR
1 361 ₽/шт
4
09118-06034
.bolt
5
09180-06138
SPACER(6.3X9.1X11.5)
1 560 ₽/шт
6
09320-08510
Втулка резиновая (8.5X20X8)
194 ₽/шт
7
93140-24D01
.hinge, trunk front
8
01570-06167
БОЛТ
72 ₽/шт
9
09169-06045
Шайба
1 060 ₽/шт
10
09443-11026
.spring
11
93310-24D02
.clamp, trunk
12
93320-24D01
LOCK,CLAMP
700 ₽/шт
13
09139-05038
Болт
129 ₽/шт
14
09443-06082
.spring
15
08319-3105A
Гайка
1 880 ₽/шт
16
02142-0512A
Болт
85 ₽/шт
17
09169-05019
Шайба
1 640 ₽/шт
18
09250-08013
CAP(OD:12)
1 410 ₽/шт
19
93131-24D10
.molding, inner
20
93135-24D00
.hinge, trunk rear
21
02142-0516B
Болт
85 ₽/шт
22
08319-21057
Гайка
97 ₽/шт
23
93117-24D00
.cushion, trnk outer
24
93210-24830-19A
.lid set, trunk (red)
25
68131-06C50-33J
..emblem (black)
26
95440-24D00
..hook, trunk lid
27
03241-1512B
Болт
82 ₽/шт
28
68319-33E02
Label,general Warning
1 155 ₽/шт
29
68611-24D20
Label, warning trunk
30
86932-73060
Ярлык топлива
162 ₽/шт
31
68332-24D00
Label, tire air pressure
