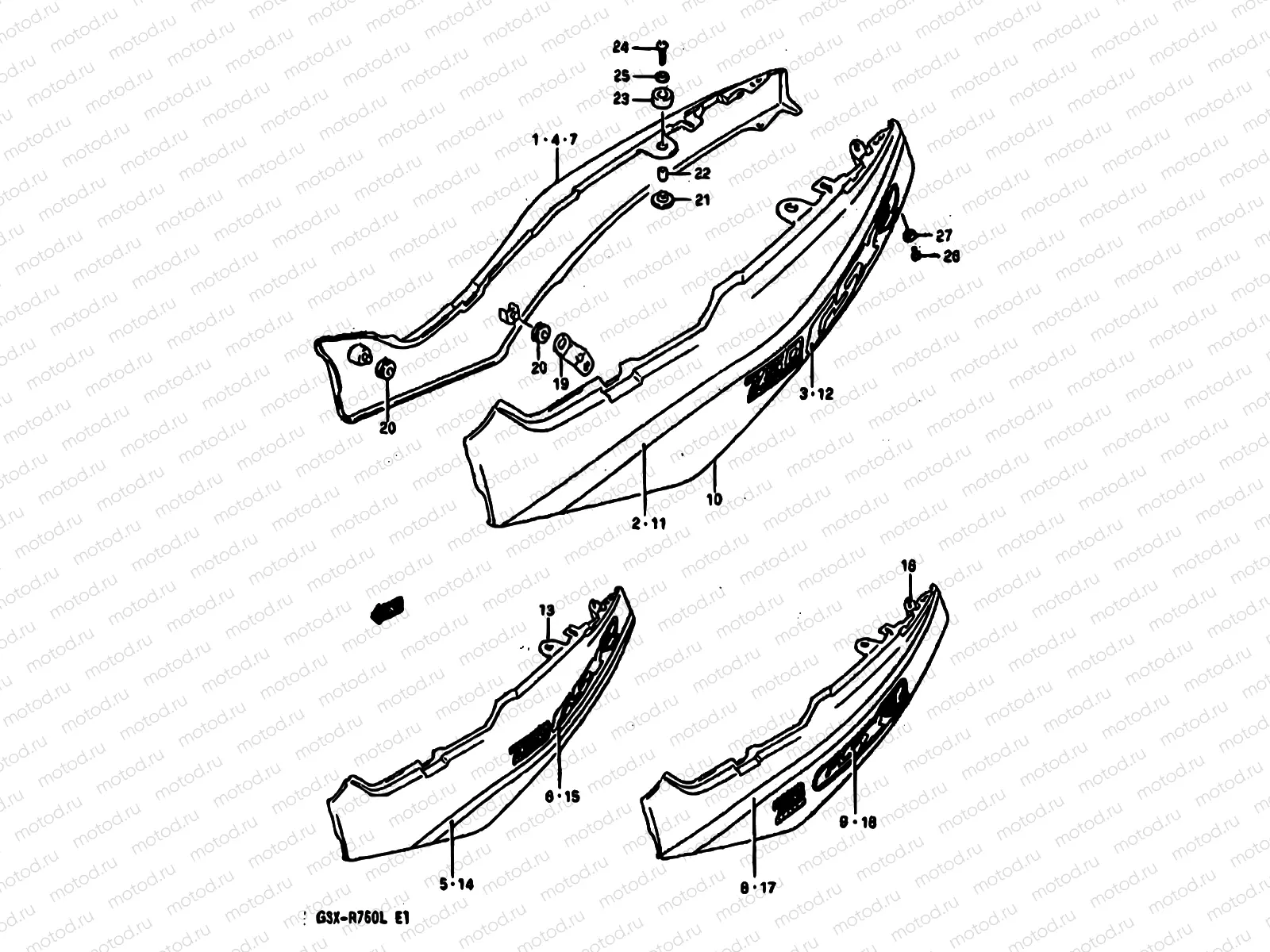

39A - FRAME COVER (MODEL K)

39A - FRAME COVER (MODEL K)
Например: 47111-17C00
1
47111-17C00
OVER,FRAME R
1
47110-17C31-2FF
over, frame rh
2
68135-17C10-22R
.tape, frame cover rh (white)
3
68131-17C20-2GZ
.emblem, rh
4
47110-17C40-7JJ
over, frame rh
4
47110-17C41-7JJ
over, frame rh
5
68130-17C10-019
.tape, frame cover rh (black)
6
68131-17C20-7JJ
.emblem, rh
7
47110-17C51-3CH
over, frame rh
7
47110-17C52-3CH
over, frame rh
8
68135-17C20-17U
.tape, frame cover rh (gray)
9
68131-17C40-3CS
.emblem, rh
10
47211-17C00
10
47210-17C31-2FF
over, frame lh
11
68145-17C10-22R
.tape, frame cover lh (white)
12
68141-17C20-2GZ
.emblem, lh
13
47211-17C00
13
47210-17C41-7JJ
over, frame lh
14
68140-17C10-019
.tape, frame cover lh (black)
15
68141-17C20-7JJ
.emblem, lh
16
47210-17C51-3CH
over, frame lh
17
68145-17C20-17U
.tape, frame cover lh (gray)
18
68141-17C40-3CS
.emblem, lh
19
43815-17C1V
Bracket,frame c
20
09320-08509
Cushion(8X22X7)
210 ₽/шт
21
45326-17C00
USHION,FRAME COVER LWR
786 ₽/шт
22
09180-06286
Кольцо/шайба
162 ₽/шт
23
45149-04A00
CUSHION,TAIL COVER UPR
162 ₽/шт
24
02142-0630B
Болт
1 520 ₽/шт
25
09160-06052
Шайба
136 ₽/шт
26
02142-0512A
Болт
85 ₽/шт
27
09161-05017-LCP
Rondelle
