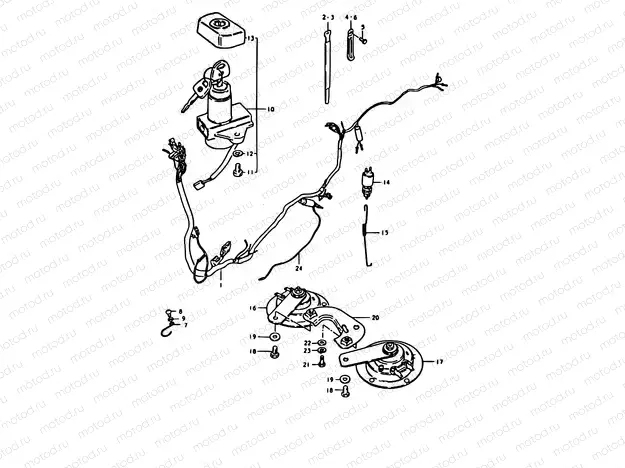

39 - WIRING HARNESS

39 - WIRING HARNESS

Например: 36610-49081

1

36610-49081

1

36610-49060

Wiring harness

2

09407-12402

Струбцина

211 ₽/шт

3

09407-18302

Clamp

221 ₽/шт

4

09404-06036

Clamp(L:80)

194 ₽/шт

5

01500-0612B

Болт

1 210 ₽/шт

6

09404-08420

Струбцина L:137

221 ₽/шт

7

36619-44002

Clip

8

02112-06127

Болт

81 ₽/шт

8

02122-0612B

Болт

82 ₽/шт

9

08322-0106A

Шайба

81 ₽/шт

10

37100-49012

11

07130-06167

Болт

1 840 ₽/шт

12

08321-01067

Шайба, стопорная

81 ₽/шт

13

37155-49011

.cover

14

37610-53011

ПЕРЕКЛЮЧАТЕЛЬ

2 502 ₽/шт

15

09443-06018-XC0

Spring

16

38502-49010

Horn, low pitched

17

38501-49010

Horn, high pitched

18

01500-08127

Болт

81 ₽/шт

19

08322-01087

Шайба

81 ₽/шт

20

38590-49002

Bracket, horn

21

09100-08143

BOLT(8X14)

129 ₽/шт

22

08322-01087

Шайба

81 ₽/шт

23

08321-01087

Пластина замка

81 ₽/шт

24

36853-45001

Проводка

485 ₽/шт
