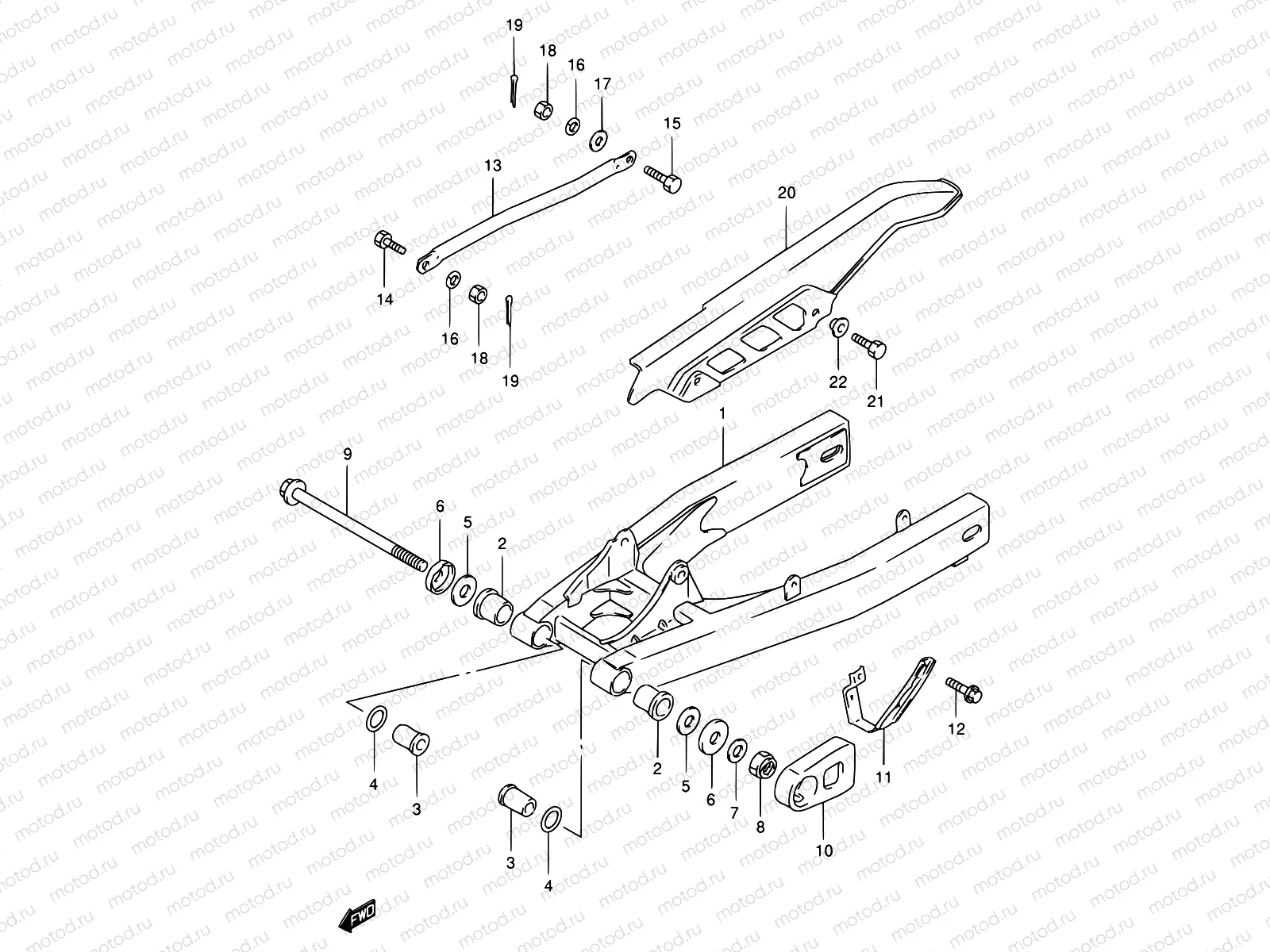

39 - REAR SWINGING ARM

39 - REAR SWINGING ARM
Например: 61000-48740-13L
1
61000-48740-13L
Swinging arm assy, rear (silver)
1
61100-48740
Swinging arm, rear
2
61261-05301
Втулка
1 139 ₽/шт
3
61251-05300
SPACER,RR SWGARM PIVOT
1 208 ₽/шт
4
09286-20001
SEAL,OIL(20X27X5)
179 ₽/шт
5
08211-14341
Шайба
1 720 ₽/шт
6
61262-45002
CVR,RR SWGARM DUST SEAL(OD:40)
544 ₽/шт
7
08322-0114B
Шайба
1 370 ₽/шт
8
08319-2114A
Гайка
2 390 ₽/шт
9
61211-05302
SHAFT,RR SWINGINGARM PIVOT
1 462 ₽/шт
10
61273-05201
KETTINGGELEIDER
11
61341-48504
Направляющая chain
1 785 ₽/шт
12
01580-0816A
Болт
97 ₽/шт
13
64311-48700-13L
TORQUELINK,RR
1 279 ₽/шт
13
64311-48700
Torque link, rear
14
09111-08015
BOLT(8X22)
1 840 ₽/шт
15
09111-08013
BOLT(8X26.5)
178 ₽/шт
16
08321-0108B
Пластина замка
81 ₽/шт
17
08322-0108A
Шайба
85 ₽/шт
18
09140-08008
ШАЙБА
97 ₽/шт
19
04111-2020A
Штифт
81 ₽/шт
20
61311-01A03
Корпус натяжения
3 825 ₽/шт
21
01550-0610B
Болт
85 ₽/шт
22
09169-06026
Пластина замка
119 ₽/шт
