Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI DL 1000 V-Strom SUZUKI DL1000 K4 V-Strom SUZUKI (VIN: JS1BS111) 39 - FUEL TANK

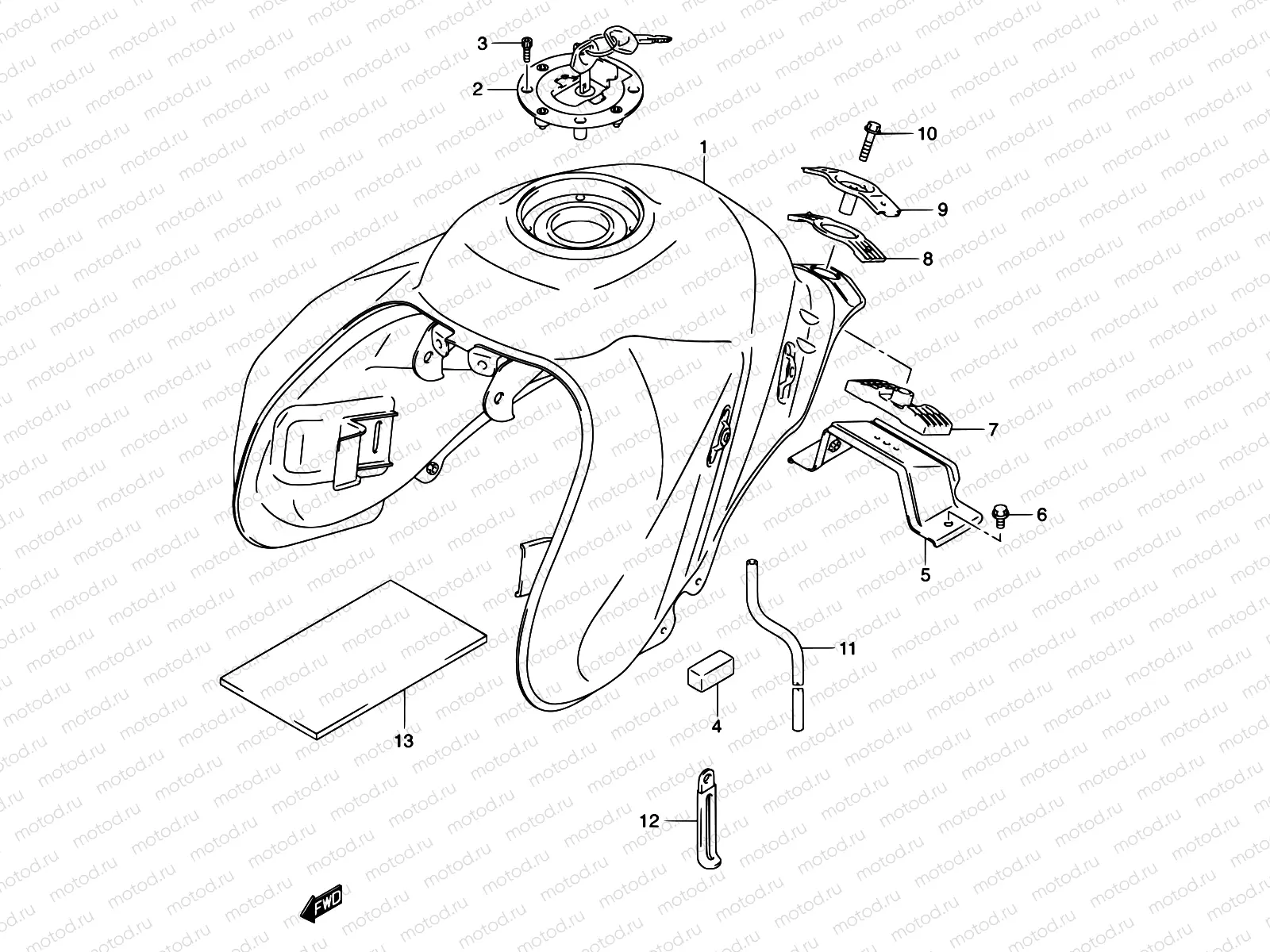

39 - FUEL TANK

39 - FUEL TANK

Например: 44110-06G42-13L

1

44110-06G42-13L

TANK ASSY,FUEL(SILVER)

113 322 ₽/шт

1

44100-06G41-YU8

1

44110-06G10-YU9

Tank,fuel(yello

1

44100-06G41-YD8

TANK ASSY,FUEL(SILVER)

105 468 ₽/шт

1

44110-06G42-13L

TANK ASSY,FUEL(SILVER)

113 322 ₽/шт

1

44100-06G41-YAY

TANK ASSY,FUEL(BLACK)

136 697 ₽/шт

1

44110-06G00-Y7H

Tank, fuel (blue)

1

44110-06G00-YU9

Tank, fuel (gray)

1

44110-06G00-YBA

Tank, fuel (blue)

1

44100-06G41-YHG

TANK ASSY,FUEL(GRAY)

136 697 ₽/шт

1

44100-06G40-YHL

Tank assy,fuel

1

44110-06G00-YHG

Tank, fuel (gray)

1

44110-06G00-YHL

Tank, fuel (red)

2

44201-33811

Fuel cap

3

09106-05017

БОЛТ

113 ₽/шт

4

44541-06G00

CUSHION,FUEL TANK SIDE

993 ₽/шт

5

44550-06G10

BRACKET,FUEL TANK RR

2 424 ₽/шт

6

01550-0816B

Болт крепёжный

97 ₽/шт

7

44545-06G00

CUSHION,FUEL TANK RR LWR

931 ₽/шт

8

44542-06G00

CUSHION,FUEL TANK RR UPR

841 ₽/шт

9

44530-06G00

Кронштейн верзний

1 224 ₽/шт

10

01550-0835A

Болт

119 ₽/шт

11

44423-06G00

Шланг

1 105 ₽/шт

12

09404-06039

Clamp(L:65)

194 ₽/шт

13

44194-06G00

SHIELD,FUEL TANK CTR

1 785 ₽/шт
