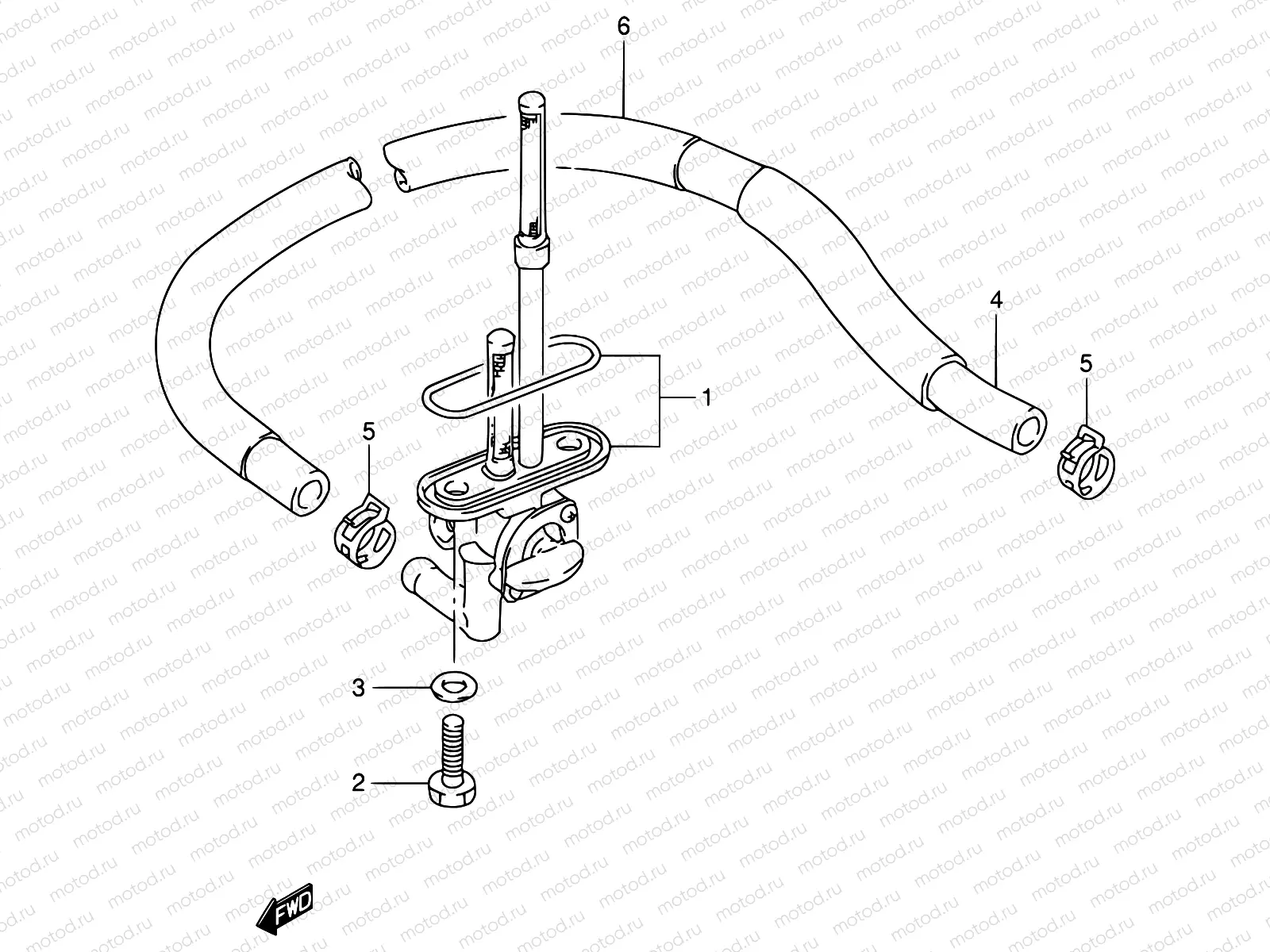

39 - FUEL COCK (MODEL N/P/R)

39 - FUEL COCK (MODEL N/P/R)
Например: 44300-38A72
1
44300-38A72
Robinet d'essence
2
02112-06207
ШАЙБА
85 ₽/шт
3
09168-06026
ШАЙБА ФОРСУНКИ
97 ₽/шт
3
09168-06023
ПРОКЛАДКА
162 ₽/шт
4
44320-38A02
Шланг топливный
1 357 ₽/шт
5
09401-11415
CLIP
113 ₽/шт
6
44311-38A01
Шланг топливный
1 189 ₽/шт
