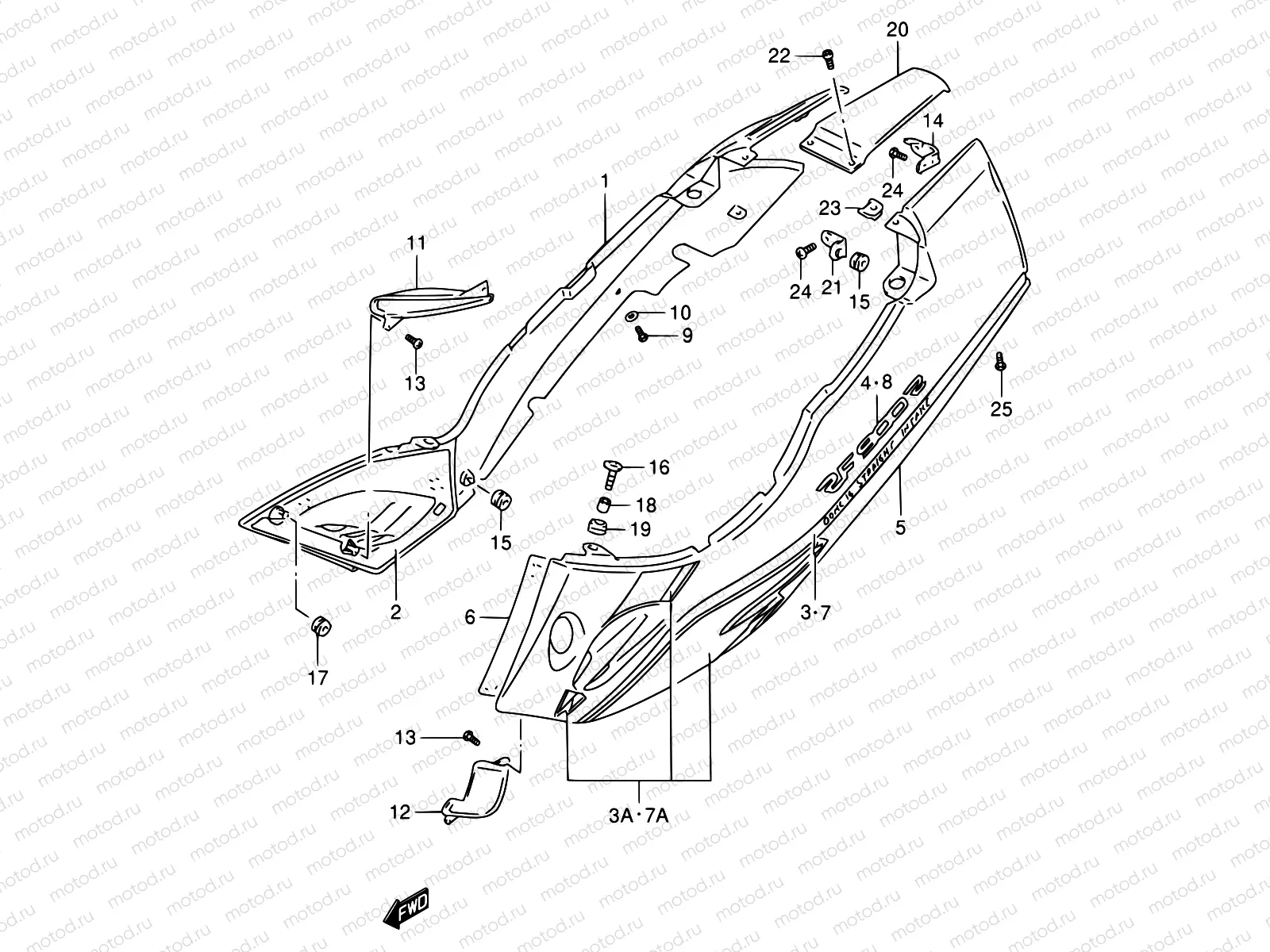

39 - FRAME COVER (MODEL R/S)

39 - FRAME COVER (MODEL R/S)

Например: 47100-31E00-19A

1

47100-31E00-19A

Cover,frame r.

1

47100-31E00-33J

Cover,frame,r.

1

47100-31E00-1HU

Cover,frame,r

1

47100-31E00-1UH

COVER ASSY.FRAME.R

1

47100-31E10-0FP

Cover,frame,r

2

47117-31E00

.shield, heat rh

3

68130-31E00-B7G

Tape set,frm.co

3

68130-31E00-B7H

RH TAPE SET

3

68130-31E00-D2A

TAPE SET,FRAME COVER STRIPE,R

3

68130-31E00-D3S

.tape set, rh

3

68130-31E00-D9E

RH TAPE SET

3

68130-31E10-D8M

Tape set,frame

4

68131-31E00-AF7

mblem

4

68131-31E00-B8U

mblem

4

68131-31E00-D1Z

mblem

4

68131-31E00-D3T

mblem

4

68131-31E00-D8P

mblem

5

47200-31E00-19A

Cover, frame lh (red)

5

47200-31E00-33J

Cover,frame,l.

5

47200-31E00-1HU

Cover,frame,l

5

47200-31E00-1UH

Cover, frame lh (green)

5

47200-31E10-0FP

Cover, frame lh (silver)

6

47217-31E00

Shield,frm heat

7

68140-31E00-B7G

.tape set, lh

7

68140-31E00-B7H

.tape set, lh

7

68140-31E00-D2A

.tape set, lh

7

68140-31E00-D3S

.tape set, lh

7

68140-31E00-D9E

Tape set,fr.,l.

7

68140-31E10-D8M

.tape set, no.2 lh

8

68131-31E00-AF7

mblem

8

68131-31E00-B8U

mblem

8

68131-31E00-D1Z

mblem

8

68131-31E00-D3T

mblem

8

68131-31E00-D8P

mblem

9

02142-0512A

Болт

85 ₽/шт

10

09161-05017-LCP

Rondelle

11

47511-31E00

Cover,inner,r.

12

47611-31E00

Cover,inner,l.

13

03541-1412A

Болт

1 210 ₽/шт

14

47191-21E00

Bracket,frmc.,r

14

47192-21E00

Bracket,frmc.,l

15

09320-08527

Cushion

1 640 ₽/шт

16

09116-06131

BOLT(6X25)

1 210 ₽/шт

17

47161-21E01

Damper

18

09180-06265

Кольцо/шайба

211 ₽/шт

19

09320-08525

Cushion

3 210 ₽/шт

20

47311-31E00-19A

Cover,frame,ctr

20

47311-31E00-33J

COVER,FRAME CTR

5 474 ₽/шт

20

47311-31E00-1HU

COVER,FRAME CTR

6 178 ₽/шт

20

47311-31E00-1UH

Cover,rr center

20

47311-31E00-0FP

Cover,frame,ctr

21

47193-21E00

Bracket,rr lamp

22

02142-0512A

Болт

85 ₽/шт

23

09148-05013

Гайка

97 ₽/шт

24

03541-1412A

Болт

1 210 ₽/шт

25

03241-1516A

ШАЙБА

82 ₽/шт
