Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX-R 750 SUZUKI GSX-R750 Y (E03,E28,E33) SUZUKI 38C - FUEL TANK (MODEL K3)

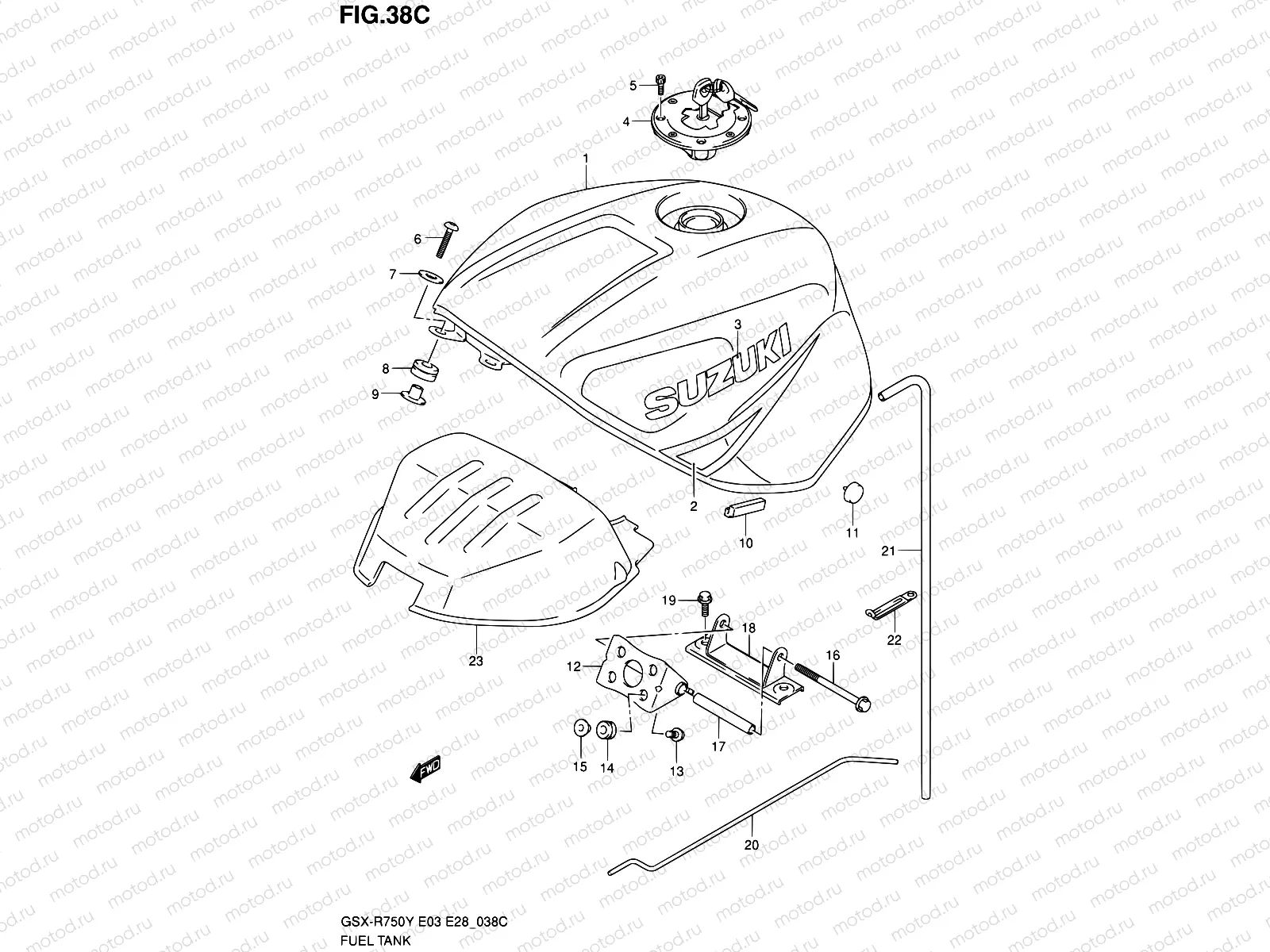

38C - FUEL TANK (MODEL K3)

38C - FUEL TANK (MODEL K3)

Например: 44100-35F80-LR5

1

44100-35F80-LR5

Tank assy,fuel

1

44100-35F80-CT5

ank assy,fuel

1

44100-35F80-KU2

Tank assy,fuel

1

44100-35F90-LR5

Tank assy, fuel

1

44100-35F90-CT5

ank assy, fuel

1

44100-35F90-KU2

Tank assy, fuel

2

68110-35F30-YBB

Autocollant (Blue)

2

68110-35F30-YU8

TAPE SET,FUEL TANK

2 366 ₽/шт

3

68111-12C30-YBD

EMBLEM,FUEL TANK

1 673 ₽/шт

3

68111-12C30-019

EMBLEM,FUEL TANK

1 673 ₽/шт

4

44201-33811

Fuel cap

4

44200-33890

CAP ASSY,FUEL TANK FILLER

23 069 ₽/шт

5

09106-05017

БОЛТ

113 ₽/шт

6

09139-06029

Болт

178 ₽/шт

7

09160-06054

Шайба

129 ₽/шт

8

44511-19F01

Cushion,fuel Tank Fr

4 280 ₽/шт

9

44512-19F00

Шайба подшипник

275 ₽/шт

10

44541-35F01

Cushion,fuel Tank Side

2 826 ₽/шт

11

44542-35F01

Cushion,fuel Tank Side No.2

921 ₽/шт

12

44530-35F00

BRACKET,FUEL TANK NO.1

2 698 ₽/шт

13

09116-06152

BOLT(6X20)

146 ₽/шт

14

09320-08001

Damper

15

09169-06062

Кольцо/шайба

114 ₽/шт

16

01550-0695B

Болт

2 310 ₽/шт

17

44561-35F00

Прокладка

848 ₽/шт

18

44550-35F10

BRACKET,FUEL TANK NO.2

3 167 ₽/шт

19

01550-0816B

Болт крепёжный

97 ₽/шт

20

44574-35F00

STAY,FUEL TANK

1 567 ₽/шт

21

44423-35F01

Hose,fuel Tank Water Drain

1 447 ₽/шт

22

09404-06039

Clamp(L:65)

194 ₽/шт

23

44191-40F11

SHIELD,FUEL TANK HEAT

17 360 ₽/шт
