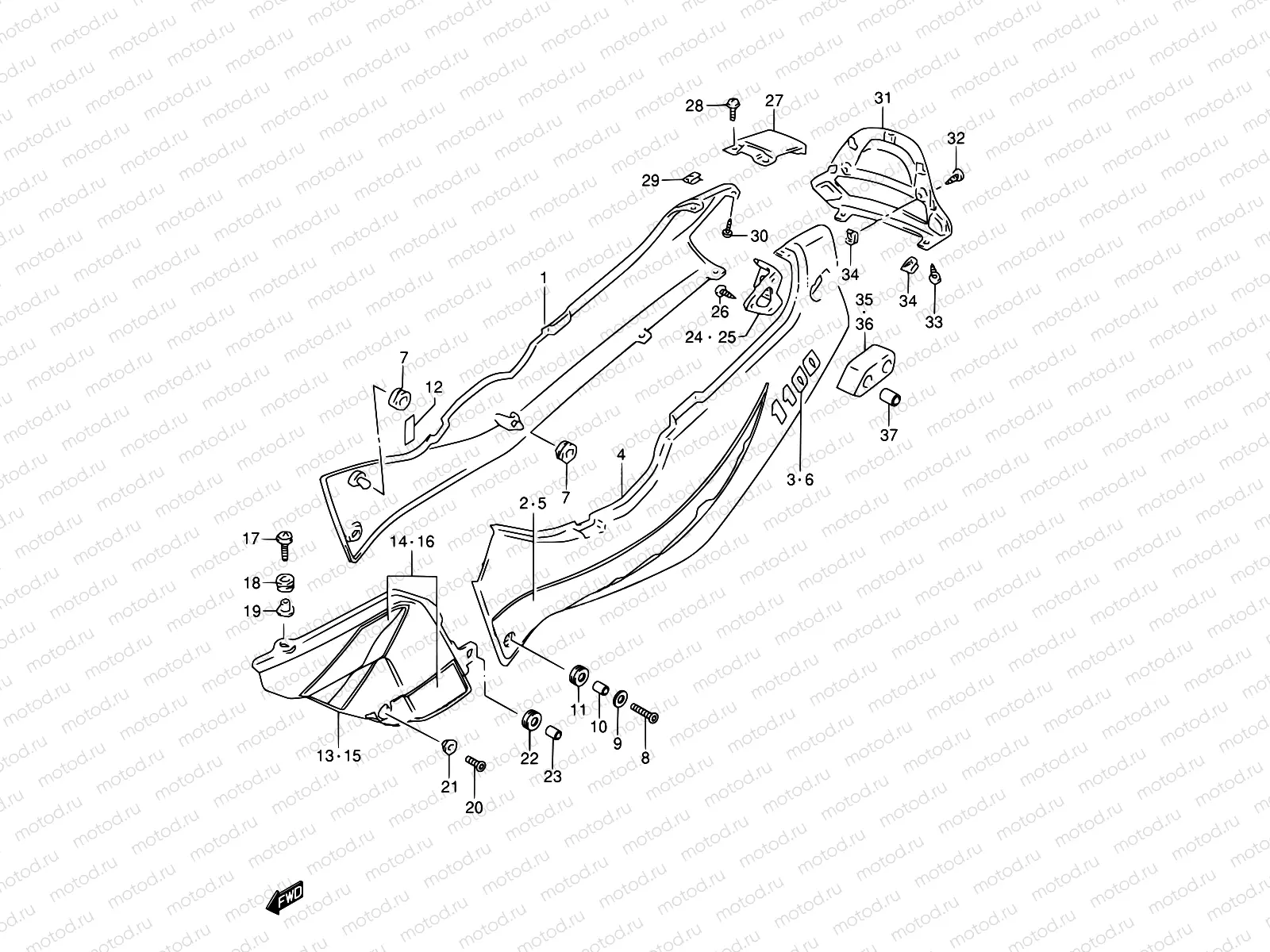

38C - FRAME COVER (MODEL T)

38C - FRAME COVER (MODEL T)
Например: 47100-46E60-0JW
1
47100-46E60-0JW
Cover,frame,r.
1
47100-46E60-17U
Cover,frame,r.
2
68135-46E40-E9P
.tape, front rh
2
68135-46E40-C3B
.tape, front rh
3
68131-46E30-Z75
mblem,frame,r.
3
68131-46E30-Z76
mblem,frame,r.
4
47200-46E60-0JW
Cover,frame,l.
4
47200-46E60-17U
Cover, frame lh (gray)
5
68145-46E40-E9P
.tape, front lh
5
68145-46E40-C3B
.tape, front lh
6
68141-46E30-Z75
.emblem, lh
6
68141-46E30-Z76
mblem,frame,l.
7
09320-08527
Cushion
1 640 ₽/шт
8
09139-06042
Болт
194 ₽/шт
9
09160-06084
Шайба 6.5X18X1
81 ₽/шт
10
09180-06283
Кольцо/шайба
162 ₽/шт
11
09320-09016
РЕЗИНКА
162 ₽/шт
12
44885-38A00
CUSHION
254 ₽/шт
13
47500-46E60-0JW
Cover,frmbody
13
47500-46E60-17U
Cover,frm body
14
68660-46E20-E9P
Tape set,frm,r.
14
68660-46E20-C3B
.tape, rh
15
47600-46E60-0JW
Cover,frm body
15
47600-46E60-17U
Cover,frm body
16
68670-46E20-E9P
Tape set,frm,l.
16
68670-46E20-C3B
.tape, lh
17
09136-06113
SCREW(6X25)
1 370 ₽/шт
18
09320-09016
РЕЗИНКА
162 ₽/шт
19
09169-06062
Кольцо/шайба
114 ₽/шт
20
09139-05025
БОЛТ НЕ КОЛЕСНЫЙ, МЕТАЛЛ
162 ₽/шт
21
09169-06040
Шайба
1 060 ₽/шт
22
09320-09016
РЕЗИНКА
162 ₽/шт
23
09180-06283
Кольцо/шайба
162 ₽/шт
24
45531-46E00
Bracket,rear ,r
25
45532-46E00
Bracket,rear ,l
26
03541-0410A
Болт
85 ₽/шт
27
47300-46E00-0JW
Cover,frame cnt
27
47300-46E00-17U
COVER ASSY,FRAME CTR
5 122 ₽/шт
28
02142-0512A
Болт
85 ₽/шт
29
09148-05013
Гайка
97 ₽/шт
30
03541-0410A
Болт
85 ₽/шт
31
47411-46E00
Cover,frame,rr
32
09139-05021
Винт (5X12)
81 ₽/шт
33
02142-0512A
Болт
85 ₽/шт
34
09148-05013
Гайка
97 ₽/шт
35
46238-46E00
Cushion,hndl r.
36
46239-46E00
Cushion,handle
37
09180-08180-XC0
Spacer,8.5x16x3
