Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX 550 SUZUKI GSX550EF H SUZUKI 38 - FUEL TANK (MODEL H)

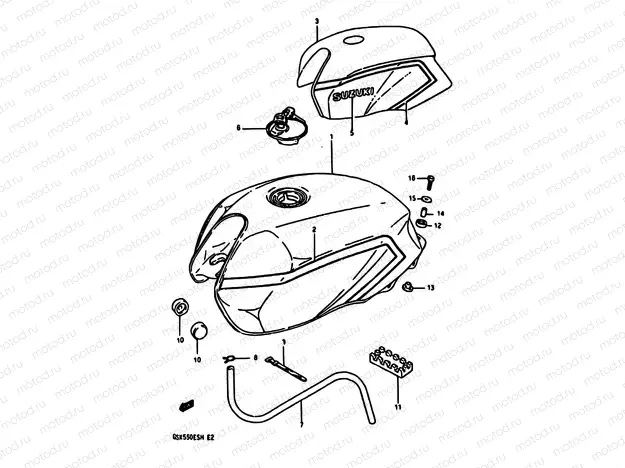

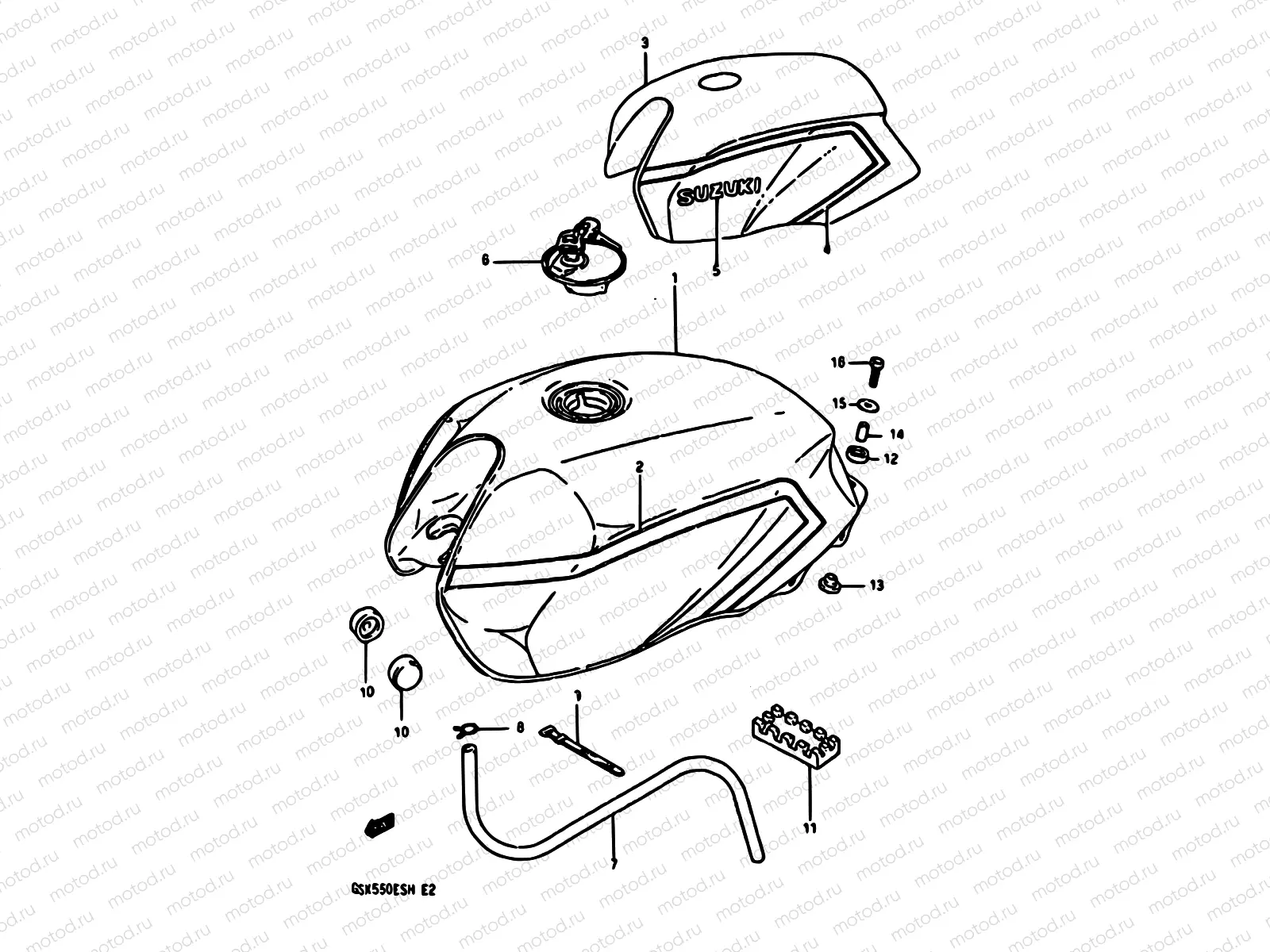

38 - FUEL TANK (MODEL H)

38 - FUEL TANK (MODEL H)

Например: 44110-43431-13L

1

44110-43431-13L

Tank assy,fuel

2

68110-43510-7JF

.tape set,fuel tank

2

68110-43510-9AP

.tape set,fuel tank

3

44110-43431-13L

Tank assy,fuel

4

68110-43510-7JF

.tape set,fuel tank

4

68110-43510-9AP

.tape set,fuel tank

5

68111-43400-064

EMBLEM

872 ₽/шт

6

44200-43410-KEY

Cap assy,fuel t

7

09352-50005-600

ШЛАНГ

436 ₽/шт

8

09401-08401

Хомут

113 ₽/шт

9

09407-18401

ХОМУТ РУЛ. НАК.

1 060 ₽/шт

10

09329-10026

ОПОРА КРЕПЛЕНИЯ ТОПЛИВНОГО БАКА

226 ₽/шт

11

44541-43400

Cushion,center

12

09320-14013

Валик топливного бака

221 ₽/шт

13

09320-10038

CUSHION

115 ₽/шт

14

09180-06308

SPACER(6.5X9X20)

1 960 ₽/шт

15

09160-06501

Шайба

102 ₽/шт

16

01500-0630A

Болт

1 330 ₽/шт
