Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600 V SUZUKI (VIN: JS1AD111, JS1AD311, JS1AD121) 38 - FRAME COVER (MODEL V)

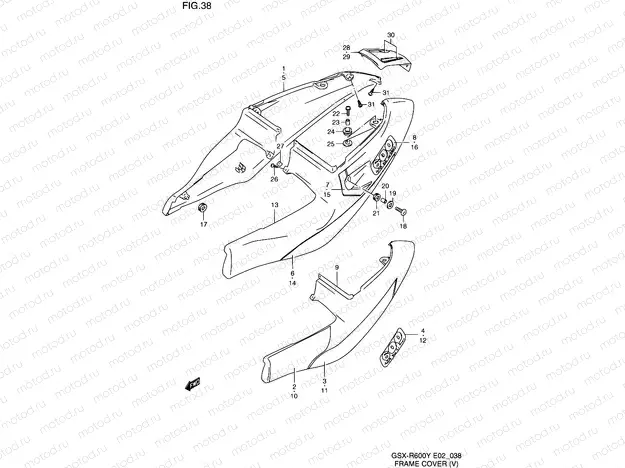

38 - FRAME COVER (MODEL V)

38 - FRAME COVER (MODEL V)

Например: 47110-34E10-019

1

47110-34E10-019

Cover comp,fram

1

47110-34E10-17U

Cover comp,fram

2

68135-34E10-1ZZ

Tape,frame

2

68135-34E10-33J

Tape,frame

3

68136-34E10-2YP

Tape,frame

3

68136-34E10-H5B

Tape,frame

4

68131-34E00-G9V

MBLEM,FRAME COVER

1 916 ₽/шт

4

68131-34E00-G9F

MBLEM,FRAME COVER

1 916 ₽/шт

5

47110-34E00-0JW

Cover comp,fram

6

68135-34E00-F3V

Tape,frame cove

7

68136-34E00-F3S

Tape,frame cove

8

68131-34E00-F3S

mblem,frame co

9

47210-34E10-019

Cover comp,fram

9

47210-34E10-17U

Cover comp,fram

10

68145-34E10-1ZZ

Tape,frame

10

68145-34E10-33J

Tape,frame

11

68146-34E10-2YP

Tape,frame

11

68146-34E10-H5B

Tape,frame

12

68131-34E00-G9V

MBLEM,FRAME COVER

1 916 ₽/шт

12

68131-34E00-G9F

MBLEM,FRAME COVER

1 916 ₽/шт

13

47210-34E00-0JW

Cover comp,fram

14

68145-34E00-F3V

Tape,frame cove

15

68146-34E00-F3S

Tape,frame cove

16

68131-34E00-F3S

mblem,frame co

17

09320-08527

Cushion

1 640 ₽/шт

18

09139-06071

Винт,6X20

3 480 ₽/шт

19

09160-06054

Шайба

129 ₽/шт

20

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

21

94433-26B01

Cushion

22

09136-06083

Винт 6X30

1 720 ₽/шт

23

09180-06286

Кольцо/шайба

162 ₽/шт

24

45149-04A00

CUSHION,TAIL COVER UPR

162 ₽/шт

25

45326-17C00

USHION,FRAME COVER LWR

786 ₽/шт

26

03241-1510B

Болт

1 290 ₽/шт

27

09148-05038

ГАЙКА

97 ₽/шт

28

47311-33E00-019

COVER,FRAME CTR

4 184 ₽/шт

28

47311-33E00

COVER,FRAME CTR(NON PAINT)

1 924 ₽/шт

29

47310-34E00-0JW

COVER COMP,FRAME CENTER

30

68165-34E00-F3S

TAPE SET,FRAME COVER CTR

5 373 ₽/шт

31

03541-1516A

Болт

1 210 ₽/шт
