Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI VL 800 Intruder C800 / Boulevard C50 SUZUKI VL800 K6 Intruder C800 / Boulevard C50 SUZUKI (VIN: JS1VS55A) 38 - FOOTREST (MODEL K6/K7/K8)

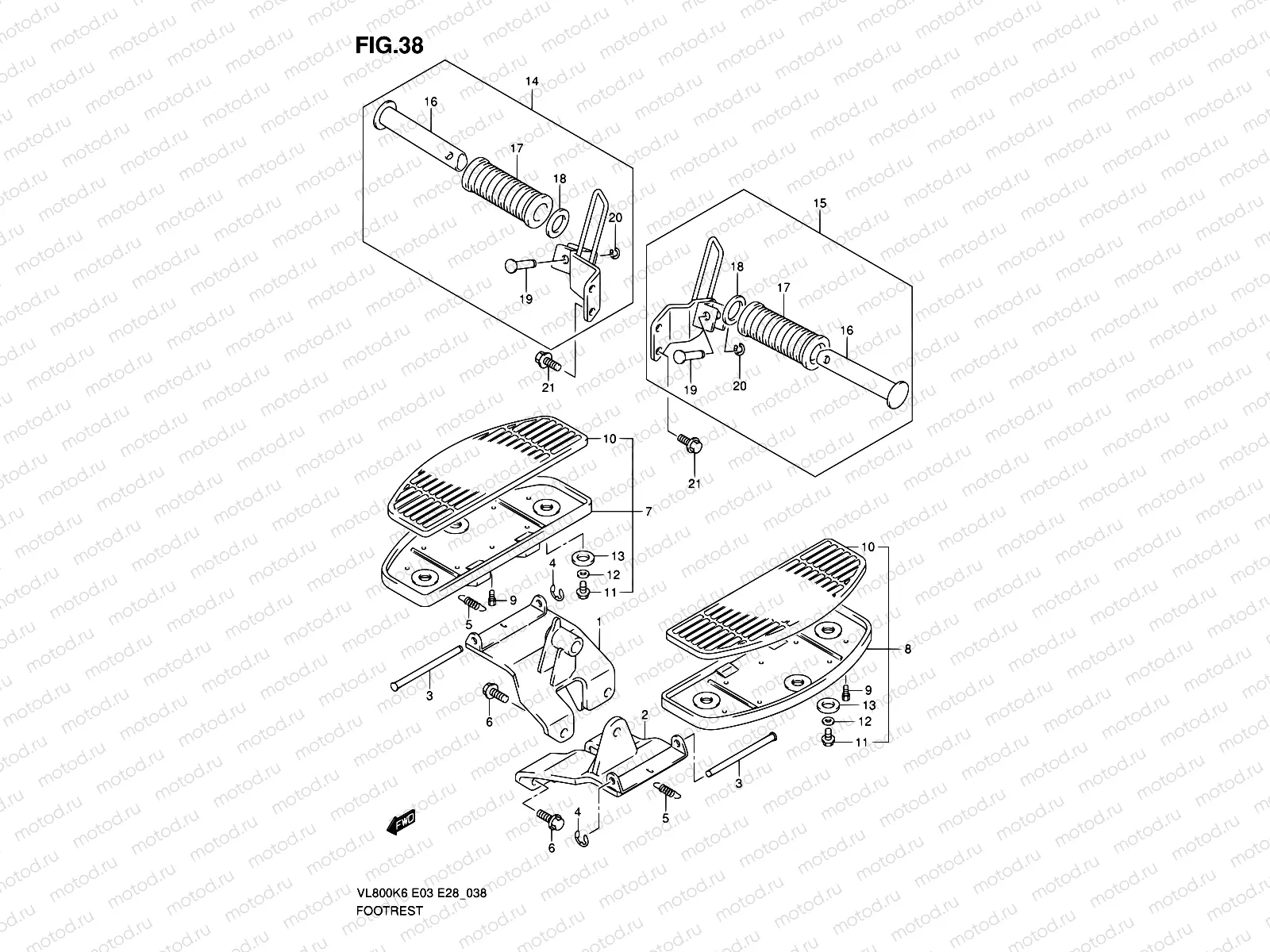

38 - FOOTREST (MODEL K6/K7/K8)

38 - FOOTREST (MODEL K6/K7/K8)

Например: 43510-41F30

1

43510-41F30

BRACKET,FR FOOTREST,R

5 239 ₽/шт

2

43520-41F30

BRACKET,FR FOOTREST,L

5 239 ₽/шт

3

43539-10F00

PIN,FR FOOTREST

493 ₽/шт

4

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

5

09443-11033

Пружина

2 740 ₽/шт

6

01580-1030B

Болт

114 ₽/шт

7

43501-41F11

ootrest Assy,fr,r

20 528 ₽/шт

8

43502-41F11

ootrest assy,f

9

43576-07D01

БОЛТ

1 066 ₽/шт

10

43550-41F10

RUBBER,FR FOOTREST

5 630 ₽/шт

11

01550-0610B

Болт

85 ₽/шт

12

09160-06054

Шайба

129 ₽/шт

13

09320-10077

Cushion

1 720 ₽/шт

14

43600-39G00

FOOTREST ASSY,PILLION,R

6 686 ₽/шт

15

43700-39G00

FOOTREST ASSY,PILLION,L

6 686 ₽/шт

16

43610-39G00

BAR,PILLION FOOTREST

1 236 ₽/шт

17

43612-39G00

УПОР ДЛЯ НОГ

765 ₽/шт

18

09160-19024

Шайба

129 ₽/шт

19

43636-25D00

PIN,PILLION FOOTREST

528 ₽/шт

20

08332-1104B

СТОПОРНОЕ КОЛЬЦО

282 ₽/шт

21

09103-08412

BOLT(8X16)

114 ₽/шт
