Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GSX-R 600 SUZUKI GSX-R600U3X K5 SUZUKI 38 - FOOTREST

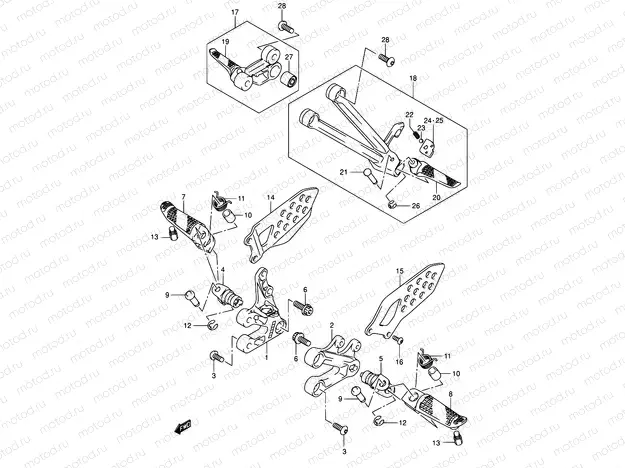

38 - FOOTREST

38 - FOOTREST

Например: 43511-29G00

1

43511-29G00

BRACKET,FR FOOTREST,R

9 775 ₽/шт

2

43521-29G00

BRACKET,FR FOOTREST,L

8 133 ₽/шт

3

09106-08167

Болт

178 ₽/шт

4

43530-35F10

HOLDER,FOOTREST,R

3 617 ₽/шт

5

43540-35F10

HOLDER,FOOTREST,L

6 120 ₽/шт

6

09106-10064

Болт крепёжный

194 ₽/шт

7

43516-35F00

BAR,FR FOOTREST,R

10 710 ₽/шт

8

43526-35F00

BAR,FR FOOTREST,L

3 675 ₽/шт

9

09208-08014

ШТИФТ

2 890 ₽/шт

10

09180-08149

Прокладка

258 ₽/шт

11

09448-18022

Пружина

211 ₽/шт

12

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

13

43576-07D01

БОЛТ

1 066 ₽/шт

14

43571-29G00

uard,fr footre

15

43576-29G00

UARD,FR FOOTREST,L

4 379 ₽/шт

16

43577-35F10

SCREW,FOOTREST GUARD,L

194 ₽/шт

17

43600-29G00

FOOTREST ASSY,PILLION,R

15 210 ₽/шт

18

43700-29G00

FOOTREST ASSY,PILLION,L

14 272 ₽/шт

19

43611-35F01

BAR,PILLION FOOTREST,R

4 301 ₽/шт

20

43621-35F01

BAR,PILLION FOOTREST,L

4 301 ₽/шт

21

09208-06007

PIN

2 110 ₽/шт

22

09440-05005

Пружина

113 ₽/шт

23

06111-07004

Шарик-защёлка №1

81 ₽/шт

24

43816-33E21

PLATE,PILLION FOOT,R

454 ₽/шт

25

43826-33E22

PLATE,PILLION FOOT,L

454 ₽/шт

26

08332-1104B

СТОПОРНОЕ КОЛЬЦО

282 ₽/шт

27

09319-08046

Bush,muffler su

28

09106-08150

Болт

178 ₽/шт
