Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI XF 650 Freewind SUZUKI XF650U Y Freewind SUZUKI (VIN: JS1AC211) 37C - FRAME COVER (MODEL Y)

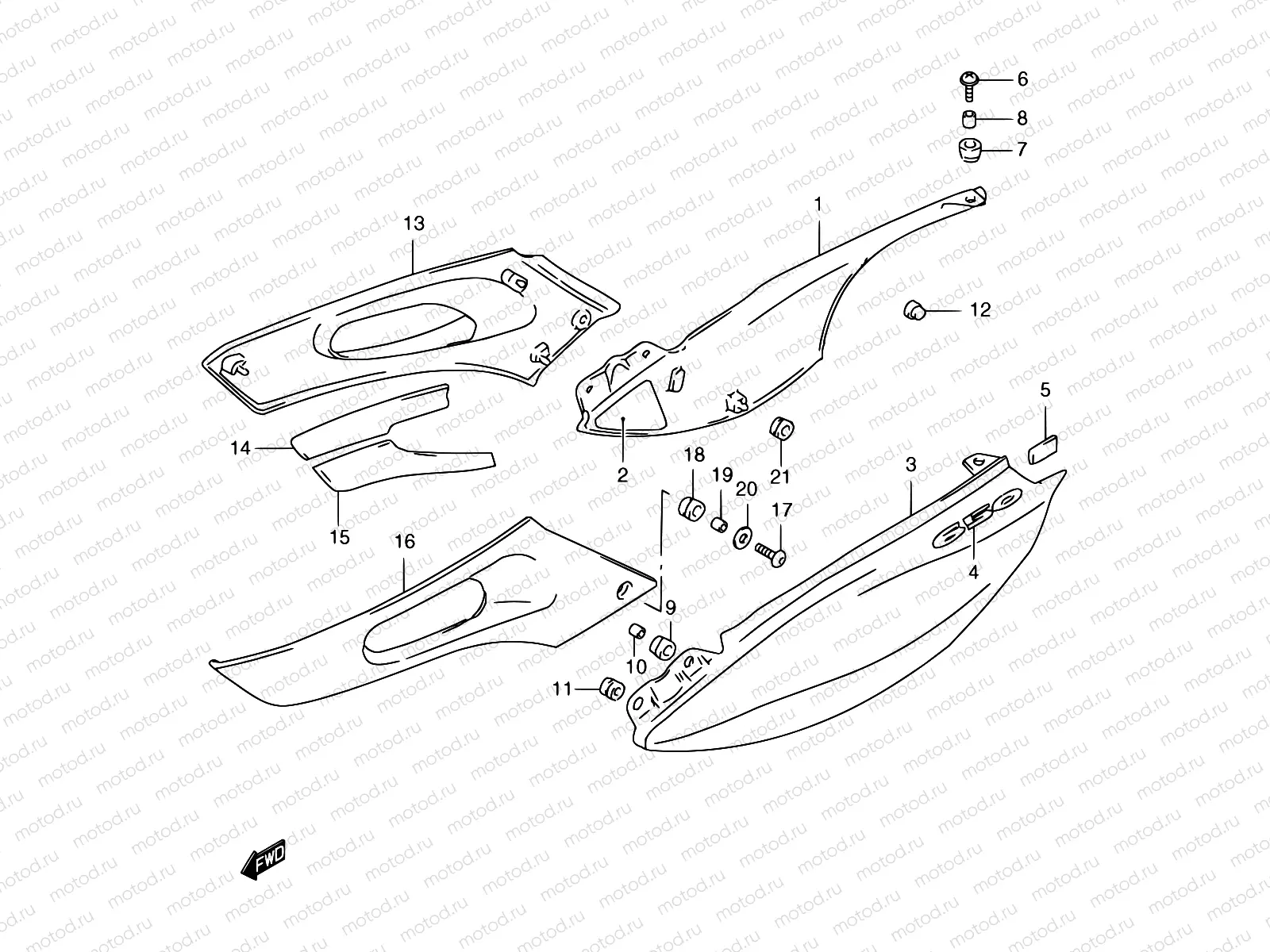

37C - FRAME COVER (MODEL Y)

37C - FRAME COVER (MODEL Y)

Например: 47111-04F02-Y7L

1

47111-04F02-Y7L

COVER,FRAME,R(BLUE)

17 595 ₽/шт

2

47168-04F00

Shield,fr.cover

3

47211-04F01

COVER,FRAME,L(NON PAINT)

4

68131-04F00-M4R

Emblem,frame cover

1 306 ₽/шт

4

68131-04F00-M4L

Emblem,frame cover

1 306 ₽/шт

4

68131-04F00-CH7

Emblem

4

68131-04F10-M4R

Emblem

4

68131-04F10-M4L

Emblem

4

68131-04F10-CH7

Emblem

5

53145-48B00

CUSHION,FR FENDER

172 ₽/шт

6

09136-06105

Болт

129 ₽/шт

7

09320-10045

CUSHION

210 ₽/шт

8

09180-06286

Кольцо/шайба

162 ₽/шт

9

09320-09016

РЕЗИНКА

162 ₽/шт

10

09180-06283

Кольцо/шайба

162 ₽/шт

11

09320-08527

Cushion

1 640 ₽/шт

12

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт

13

47511-04F00-291

COVER,FRAME FR,R

9 931 ₽/шт

14

47166-04F00

Shield, front rh upper

15

47167-04F00

Shield, front rh lower

16

47611-04F00-291

Cover,frame,f/l

17

09139-06042

Болт

194 ₽/шт

18

09320-09016

РЕЗИНКА

162 ₽/шт

19

09180-06283

Кольцо/шайба

162 ₽/шт

20

09160-06084

Шайба 6.5X18X1

81 ₽/шт

21

09320-08514

Damper
