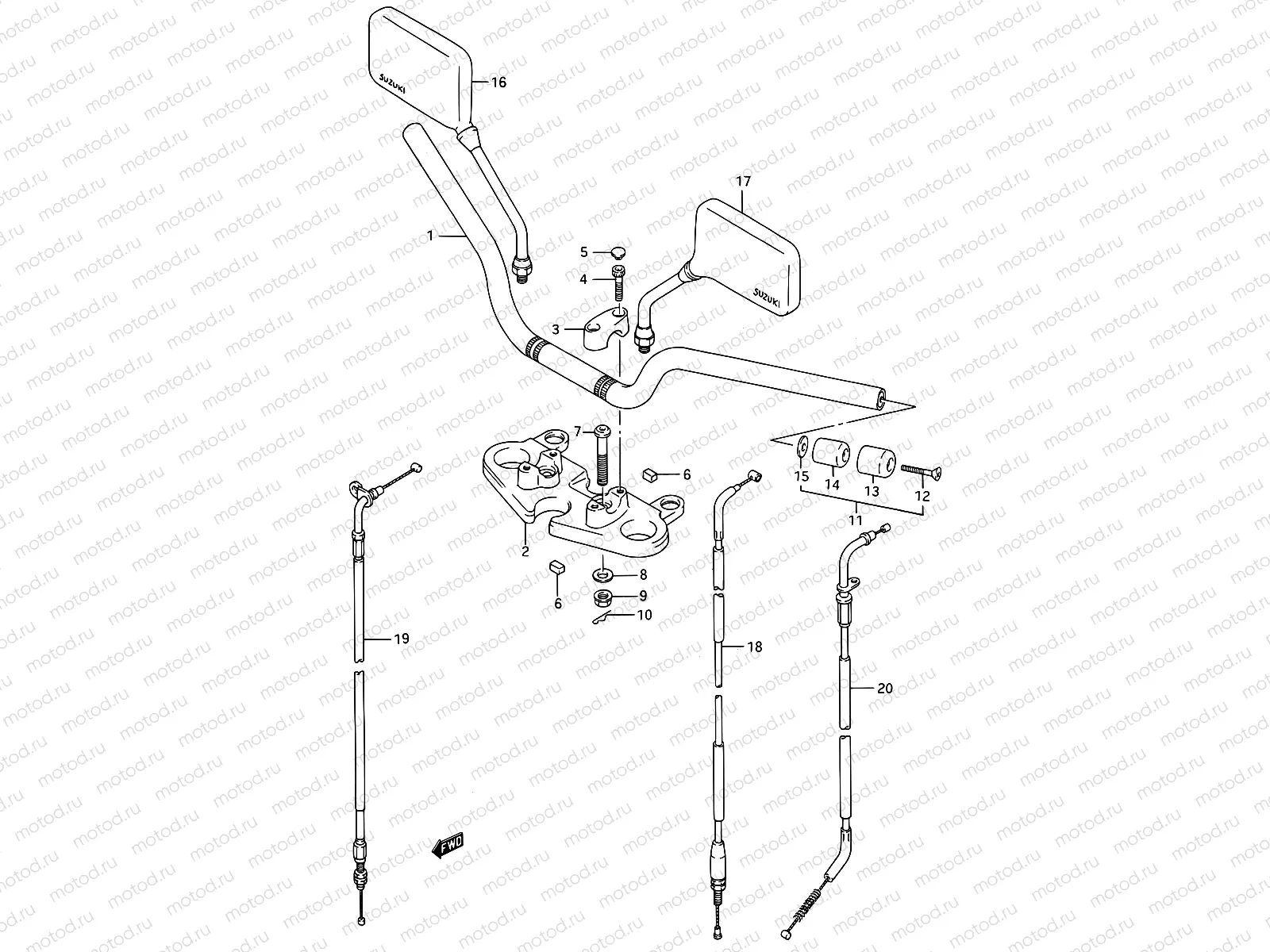

37B - HANDLEBAR (MODEL P/R/S/T)

37B - HANDLEBAR (MODEL P/R/S/T)
Например: 56110-01D51
1
56110-01D51
HANDLEBAR
8 798 ₽/шт
2
56221-01D50-0FP
HOLDER,HANDLEBAR LWR
19 355 ₽/шт
3
56211-34300-0FP
Holder,upper
4
07130-0830A
БОЛТ (хром)
2 070 ₽/шт
5
09250-06004
CAP(OD:14.5)
97 ₽/шт
6
56241-01D00
Валик держателя
352 ₽/шт
7
09106-10055
BOLT(10X66)
6 690 ₽/шт
8
09160-10094
WASHER(10.5X30X3.2)
119 ₽/шт
9
08319-31107
Гайка
210 ₽/шт
10
04111-2020A
Штифт
81 ₽/шт
11
56200-01831
Balancerset
12
02122-0660B
Болт
81 ₽/шт
13
56274-49310
CAP,HANDLE BALANCER
12 395 ₽/шт
14
56271-49310
BALANCER,HANDLEBAR
1 666 ₽/шт
15
56275-34401
SPACER,BALANCER
278 ₽/шт
16
56500-01D20
MIRROR ASSY,RR VIEW,R
6 217 ₽/шт
17
56600-01D20
MIRROR ASSY,RR VIEW,L
6 217 ₽/шт
18
58200-01D12
Cable Assy,clutch
3 050 ₽/шт
19
58300-01D10
Câble de gaz
20
58410-01D11
CABLE,STARTER
2 502 ₽/шт
