Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI XF 650 Freewind SUZUKI XF650 W Freewind SUZUKI (VIN: JS1AC121) 37A - FRAME COVER (MODEL W)

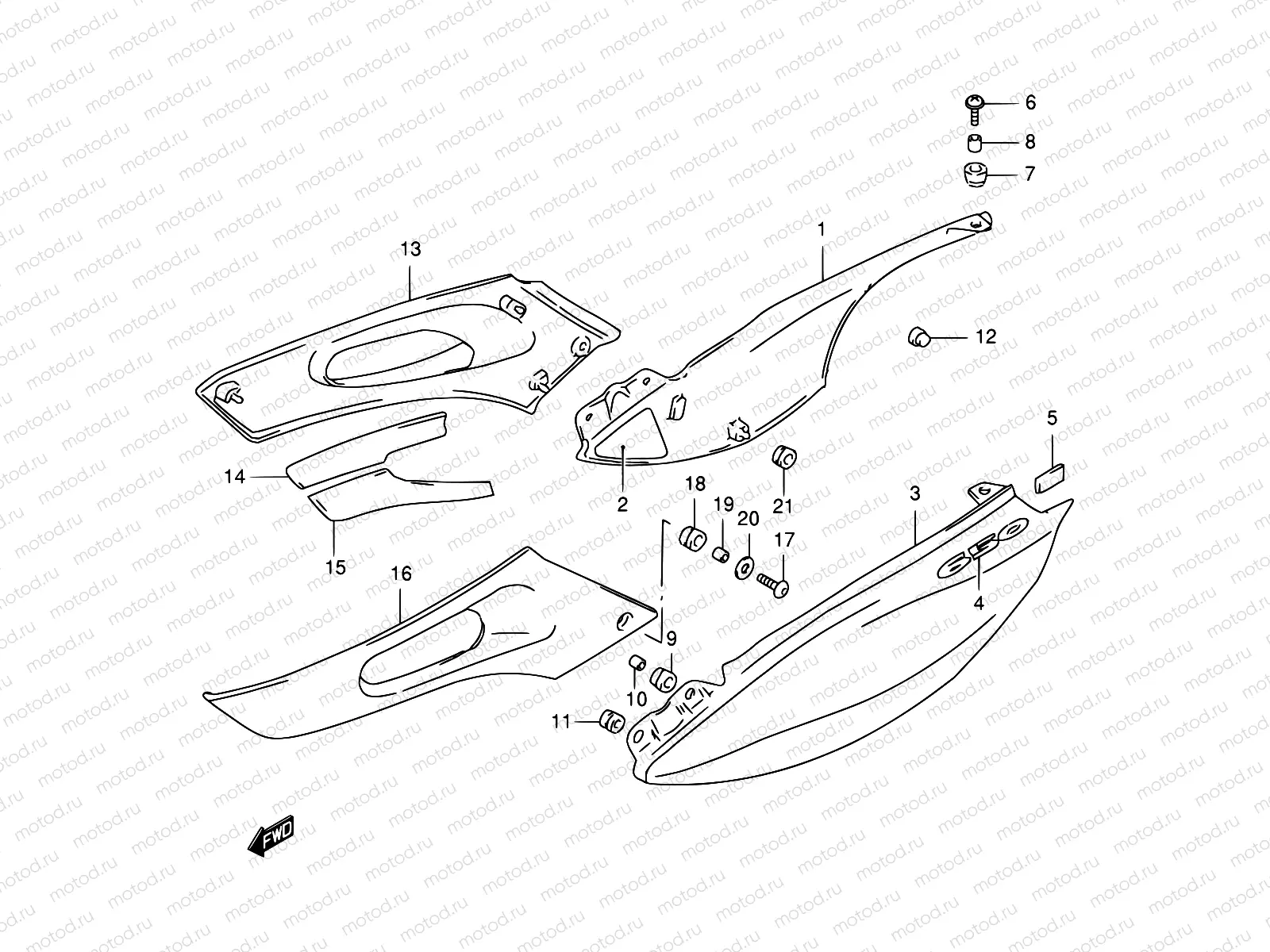

37A - FRAME COVER (MODEL W)

37A - FRAME COVER (MODEL W)

Например: 47111-04F02-Y2D

1

47111-04F02-Y2D

COVER,FRAME,R(SILVER)

1

47111-04F02-Z94

Cover, frame rh (orange)

2

47168-04F00

Shield,fr.cover

3

47211-04F01

COVER,FRAME,L(NON PAINT)

3

47211-04F01-Z94

COVER,FRAME,L(ORANGE)

4

68131-04F00-K1B

EMBLEM,FRAME COVER

1 306 ₽/шт

4

68131-04F00-J3Y

Emblem

5

53145-48B00

CUSHION,FR FENDER

172 ₽/шт

6

09136-06105

Болт

129 ₽/шт

7

09320-10045

CUSHION

210 ₽/шт

8

09180-06286

Кольцо/шайба

162 ₽/шт

9

09320-09016

РЕЗИНКА

162 ₽/шт

10

09180-06283

Кольцо/шайба

162 ₽/шт

11

09320-08527

Cushion

1 640 ₽/шт

12

09321-10018

САЙЛЕНТБЛОК

238 ₽/шт

13

47511-04F00-291

COVER,FRAME FR,R

9 931 ₽/шт

14

47166-04F00

Shield, front rh upper

15

47167-04F00

Shield, front rh lower

16

47611-04F00-291

Cover,frame,f/l

17

09139-06042

Болт

194 ₽/шт

18

09320-09016

РЕЗИНКА

162 ₽/шт

19

09180-06283

Кольцо/шайба

162 ₽/шт

20

09160-06084

Шайба 6.5X18X1

81 ₽/шт

21

09320-08514

Damper
