Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI RM 85 SUZUKI RM85L K3 (P03,P28) SUZUKI (VIN: LM1RD17C) 37 - REAR WHEEL (RM85K2/K3)

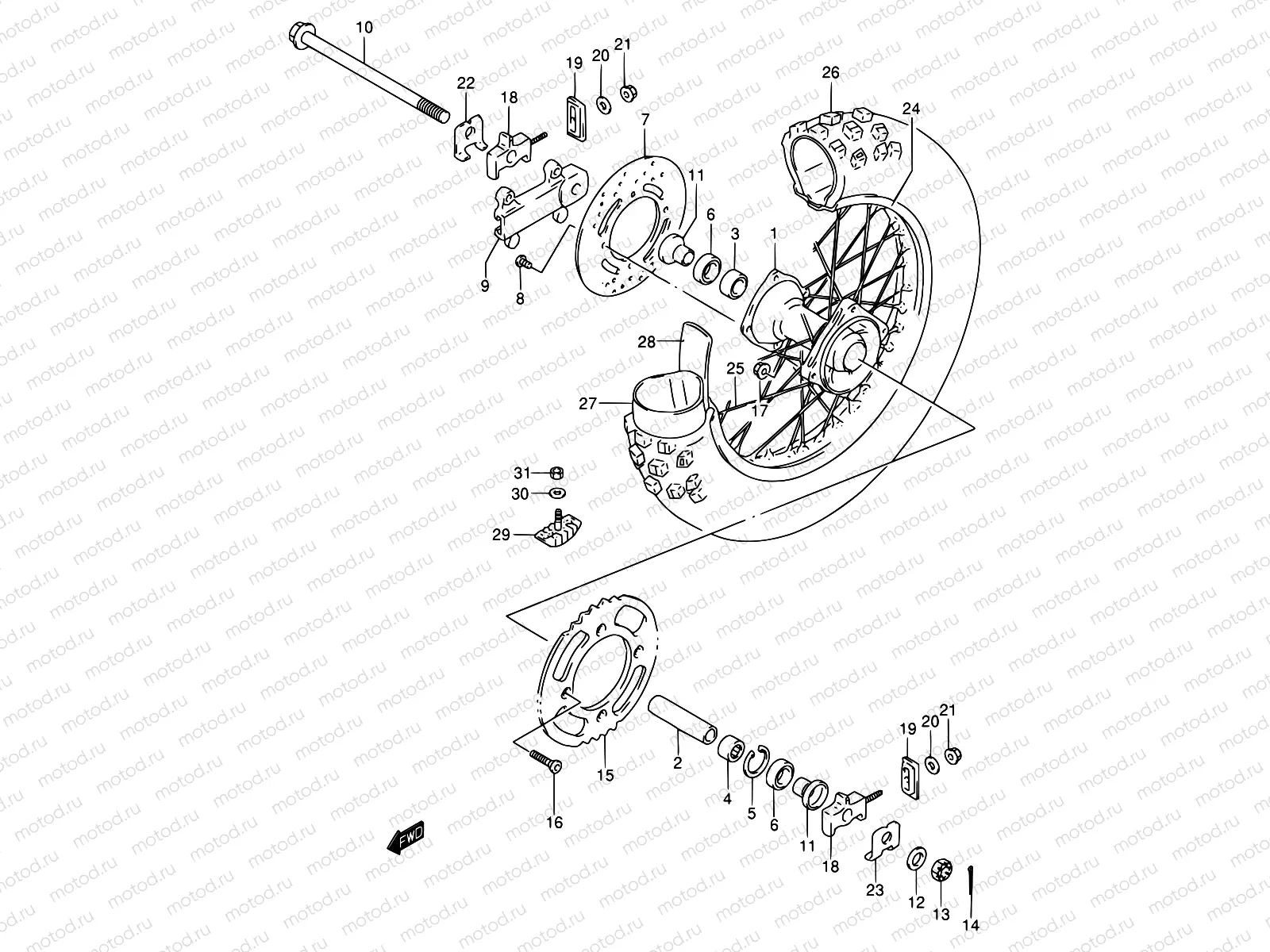

37 - REAR WHEEL (RM85K2/K3)

37 - REAR WHEEL (RM85K2/K3)

Например: 64111-02B43

1

64111-02B43

HUB,RR WHEEL

18 768 ₽/шт

2

64731-02B40

SPACER,RR HUB BEARING

1 267 ₽/шт

3

08123-60027

BEARING

1 139 ₽/шт

4

09262-15021

Подшипник

1 396 ₽/шт

5

08331-41359

Стопорное кольцо (пружинное)

170 ₽/шт

6

09283-20024

Уплотнение

614 ₽/шт

7

69211-02B41

DISC,RR BRAKE

20 137 ₽/шт

8

02122-0612B

Болт

82 ₽/шт

9

69721-02B42

racket,rear ax

10

64711-02B40

AXLE,RR

5 901 ₽/шт

11

64741-02B41

SPACER,RR AXLE

5 330 ₽/шт

12

09160-14062

Шайба

1 720 ₽/шт

13

09141-14004

Гайка

3 210 ₽/шт

14

04111-3030A

Стопор

81 ₽/шт

15

64511-03B00

SPROCKET,RR(47T)

10 166 ₽/шт

15

64511-03B10

SPROCKET,RR(46T)

10 166 ₽/шт

15

64511-03B20

SPROCKET,RR(48T)

10 166 ₽/шт

15

64511-03B30

SPROCKET,RR(49T)

10 166 ₽/шт

16

09120-08010

БОЛТ

162 ₽/шт

17

09159-08067

Гайка

344 ₽/шт

18

61410-02B02

ADJUSTER,CHAIN

17 595 ₽/шт

19

61421-02B0V

PLATE,CHAIN ADJUSTER

696 ₽/шт

20

08322-0106A

Шайба

81 ₽/шт

21

08319-2106A

Гайка

114 ₽/шт

22

64712-02B00

WASHER,CHAIN ADJUSTER RH

246 ₽/шт

23

64713-02B00

WASHER,CHAIN ADJUSTER,L

246 ₽/шт

24

65311-02B40

Rim,rr wheel

25

65320-02B51

SPOKE ASSY,RR WHEEL

4 457 ₽/шт

26

65110-02B70

TIRE,RR(90/100 14)

14 936 ₽/шт

27

65200-02B70

TUBE ASSY,WHEEL INNER

2 405 ₽/шт

28

65261-02B40

PROTECTOR,WHL INR TUBE

348 ₽/шт

29

65270-43D00

STOPPER,BEAD(1.85)

2 665 ₽/шт

30

08322-0108A

Шайба

85 ₽/шт

31

08310-0008B

Гайка

85 ₽/шт
