Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 350 SUZUKI DR350 V (E01) SUZUKI 37 - HANDLEBAR

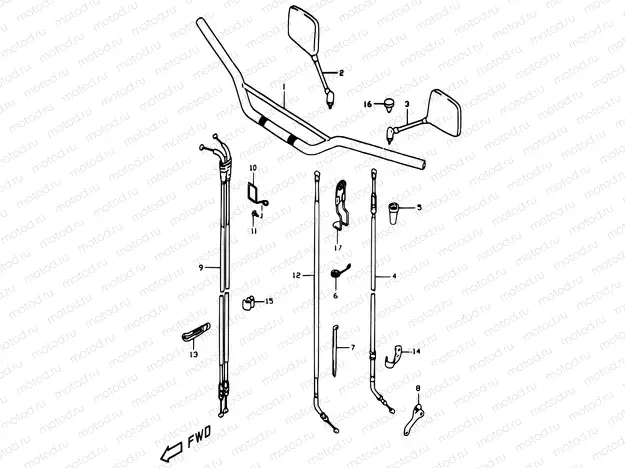

37 - HANDLEBAR

37 - HANDLEBAR

Например: 56110-14D50-291

1

56110-14D50-291

Handlebar (BLACK)

1

56110-14D60-291

Handlebar (BLACK)

2

56500-12D12

SPIEGEL R

3

56600-12D12

Mirror assy, rear view lh

4

58200-14D01

CABLE ASSY,CLUTCH

7 650 ₽/шт

5

58273-31001

ПЫЛЬНИК ТРОСА СЦЕПЛЕНИЯ

187 ₽/шт

6

58294-15D00

GELEIDER

7

09407-14407

ЗАЖИМ

221 ₽/шт

8

58634-14D00

Стопор муфты

719 ₽/шт

9

58301-14D02

Câble de gaz

10

58294-14D00

Guide, cable

11

01550-0610B

Болт

85 ₽/шт

12

58900-14D10

CABLE ASSY,DECOMP

2 717 ₽/шт

13

09404-06039

Clamp(L:65)

194 ₽/шт

14

58285-14D01

CLAMP,CLUTCH CABLE

15

09408-00066

ХОМУТ МАЛЫЙ

119 ₽/шт

16

56524-23K10

Cap gsx-r 125/

17

58620-15D20

Guide, clutch cable
