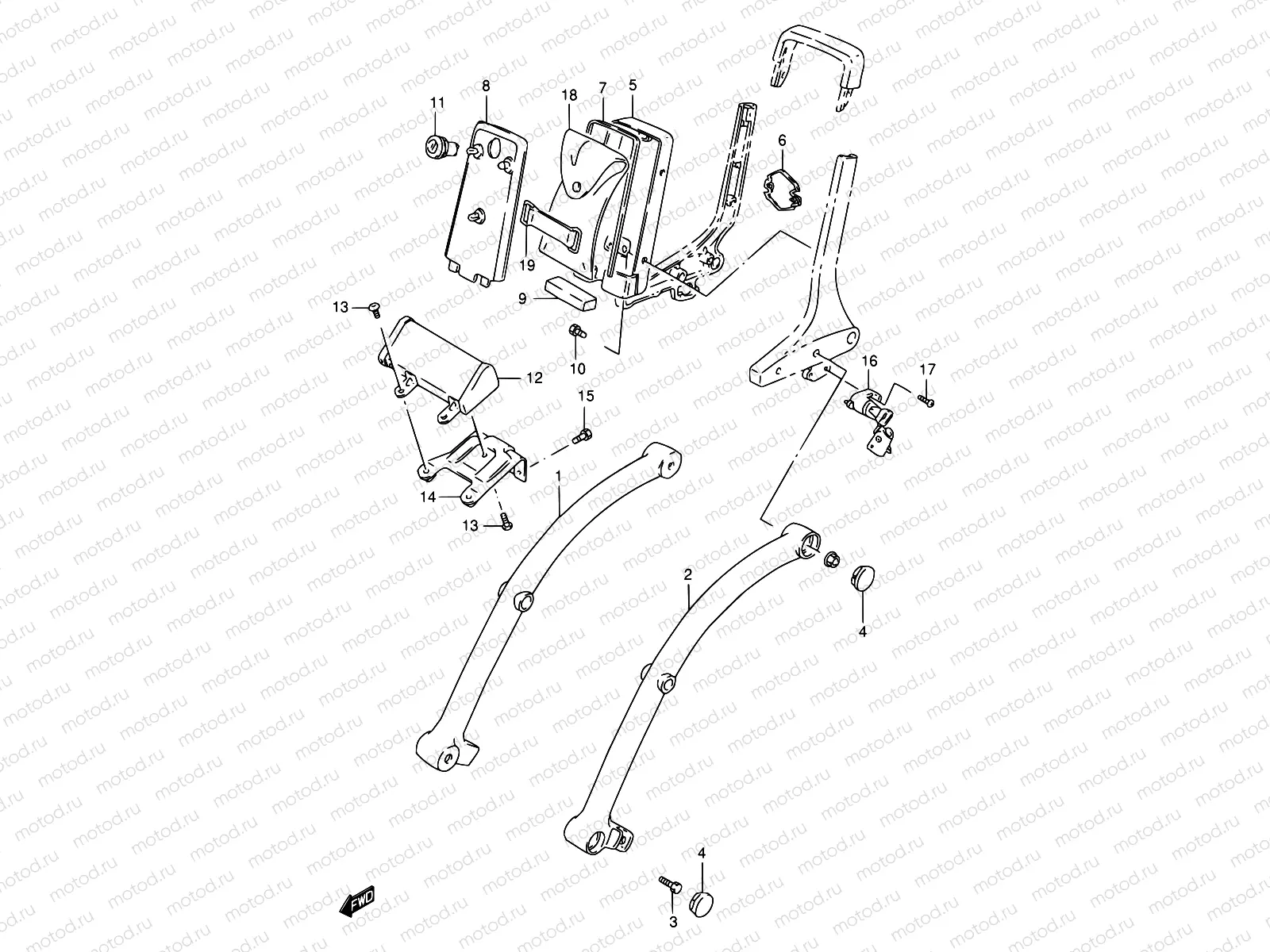

37 - FRAME HANDLE GRIP (MODEL T/V/W/X/Y/K1)

37 - FRAME HANDLE GRIP (MODEL T/V/W/X/Y/K1)
Например: 41610-38B10
1
41610-38B10
GRIP,FRAME HANDLE,R
33 431 ₽/шт
2
41620-38B10
Grip comp,frame
3
01500-0820A
Болт
85 ₽/шт
4
95673-24A00
CAP,PIPE CO-RIDER GRIP
291 ₽/шт
4
09250-06010
CAP(OD:11)
1 250 ₽/шт
5
47430-38B11-22S
Holder tool,rr.
6
68261-38A30
EMBLEM,TOOL HOLDER RR
2 463 ₽/шт
7
47437-38B00
MOLDING,TOOL HOLDER RR
528 ₽/шт
8
47441-38B00
HOLDER,TOOL FR
3 060 ₽/шт
9
47438-38B00
CUSHION,TOOL BACK
1 818 ₽/шт
10
01550-0612B
БОЛТ
81 ₽/шт
11
95700-24831
LOCK SET,TOOL HOLDER
5 005 ₽/шт
12
41550-38B00
Holder,tool
13
09139-06027
Винт (6х12)
194 ₽/шт
14
41560-38B00
racket,tool hl
15
01580-0816A
Болт
97 ₽/шт
16
95700-38821
LOCK SET,HELMET
3 499 ₽/шт
17
02112-05127
Болт
81 ₽/шт
18
09800-21071
Tool assy
18
09800-21070
Tool assy
19
09462-00034
ХОМУТ
510 ₽/шт
