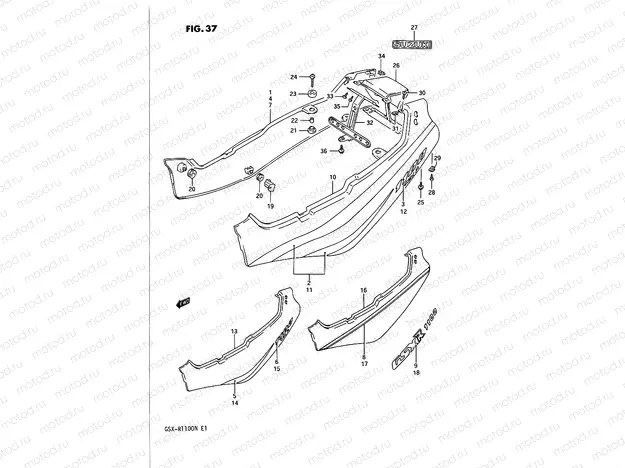

37 - FRAME COVER (MODEL M)

37 - FRAME COVER (MODEL M)

Например: 47110-41C00-3SL

1

47110-41C00-3SL

over, frame rh

2

68130-41C01-3SR

.tape, frame cover rh

3

68131-41C00-E95

mblem,fr cover

4

47110-41C10-3EE

over,frame,rh

5

68135-41C01-0FP

.tape, frame cover rh (silver)

6

68131-41C00-H03

Emblem,fr cover

7

47110-41C20-3CH

over, frame rh

7

47110-41C20-05X

over, frame rh

8

68135-18D11-H13

Tape,cvr strp,r

8

68135-18D11-H17

TAPE,FRAME COVER,R

9

68131-41C10-H08

Emblem

9

68131-41C10-H15

EMBLEM,FRAME COVER

2 346 ₽/шт

10

47210-41C00-3SL

over,frame,lh

11

68140-41C01-3SR

.tape, frame cover lh

12

68131-41C00-E95

mblem,fr cover

13

47210-41C10-3EE

over, frame lh

14

68145-41C01-0FP

Tape,frm cvr,lh

15

68131-41C00-H03

Emblem,fr cover

16

47210-41C20-3CH

over, frame lh

16

47210-41C20-05X

over,frame,l

17

68145-18D11-H13

.tape, lh

17

68145-18D11-H17

.tape, lh

18

68131-41C10-H08

Emblem

18

68131-41C10-H15

EMBLEM,FRAME COVER

2 346 ₽/шт

19

43815-41C0V

Bracket,frame c

20

09320-08509

Cushion(8X22X7)

210 ₽/шт

21

45326-17C00

USHION,FRAME COVER LWR

786 ₽/шт

22

09180-06286

Кольцо/шайба

162 ₽/шт

23

45149-04A00

CUSHION,TAIL COVER UPR

162 ₽/шт

24

09136-06083

Винт 6X30

1 720 ₽/шт

25

09136-06017

Винт 6X16

85 ₽/шт

26

47310-41C00-0NG

DEKSEL

26

47310-41C00-28V

DEKSEL

26

47310-41C20-36X

over,frame

27

68166-31310-13L

Emblem,"suzuki"

375 ₽/шт

28

03141-1412B

Болт

82 ₽/шт

29

09148-04024

Гайка

97 ₽/шт

30

03241-1512B

Болт

82 ₽/шт

31

09148-05019

Гайка

102 ₽/шт

32

47410-41C00

Plate,electric

33

03241-1512B

Болт

82 ₽/шт

34

09148-05038

ГАЙКА

97 ₽/шт

35

03541-0412A

ШАЙБА

85 ₽/шт

36

09116-06109

Болт

1 490 ₽/шт
