Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI TL 1000 SUZUKI TL1000R K2 SUZUKI (VIN: JS1VT52A) 36D - FUEL TANK (MODEL K2)

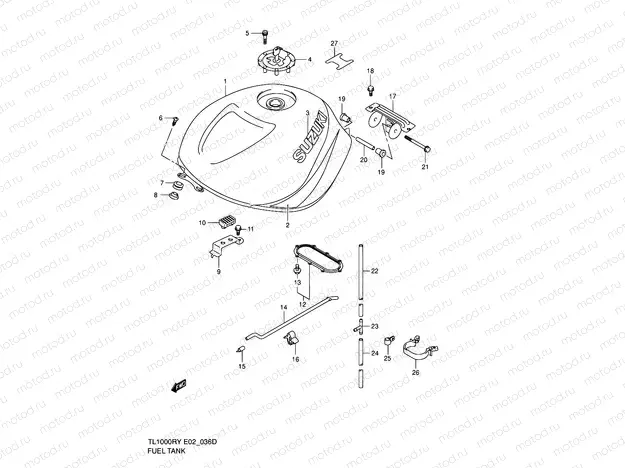

36D - FUEL TANK (MODEL K2)

36D - FUEL TANK (MODEL K2)

Например: 44100-02FQ0-L99

1

44100-02FQ0-L99

Tank assy, fuel

1

49100-02FA0-Y9H

TANK ASSY,FUEL(YELLOW)

90 508 ₽/шт

2

68110-02F20-1LE

.tape set,fuel tank (blue)

2

68110-02F20-YD8

.tape set,fuel tank (silver)

3

68111-12C30-0JW

EMBLEM,FUEL TANK

3 400 ₽/шт

3

68111-12C30-Y7L

EMBLEM,FUEL TANK

1 673 ₽/шт

4

44200-33871

Cap set,fuel ta

5

09106-05017

БОЛТ

113 ₽/шт

6

09139-06029

Болт

178 ₽/шт

7

09320-09009

РЕЗИНКА

187 ₽/шт

8

09169-06062

Кольцо/шайба

114 ₽/шт

9

44531-02FA0

BRACKET,FUEL TANK SIDE CUSHION

700 ₽/шт

10

45149-31300

CUSHION,SEAT(40X20X15)

510 ₽/шт

11

01550-0616B

БОЛТ

81 ₽/шт

12

44590-02841

Packing Set,fuel Pump

3 988 ₽/шт

13

09103-05017

BOLT(5X10)

2 230 ₽/шт

14

44574-33E01

STAY,FUEL TANK

3 315 ₽/шт

15

09251-05006

CAP(OD:11)

3 480 ₽/шт

16

09403-05310

CLAMP

2 030 ₽/шт

17

44550-02FA1

Bracket,fueltnk

18

01550-0816B

Болт крепёжный

97 ₽/шт

19

44541-02F01

Damper (Fuel tank)

20

44561-33E10

SPACER,FUEL TANK RR

1 427 ₽/шт

21

01550-0895B

Болт

2 620 ₽/шт

22

44423-02F02

Hose,fuel Tank Drain

1 372 ₽/шт

23

09367-08005

Соединение 3-х стороннее

2 420 ₽/шт

24

09352-70104-600

Hose(7X10.2X600)

561 ₽/шт

25

09403-14408

CLAMP

3 870 ₽/шт

26

09403-24302

CLAMP

3 050 ₽/шт

27

44261-02F00

LABEL,FUEL TANK INNER

344 ₽/шт
