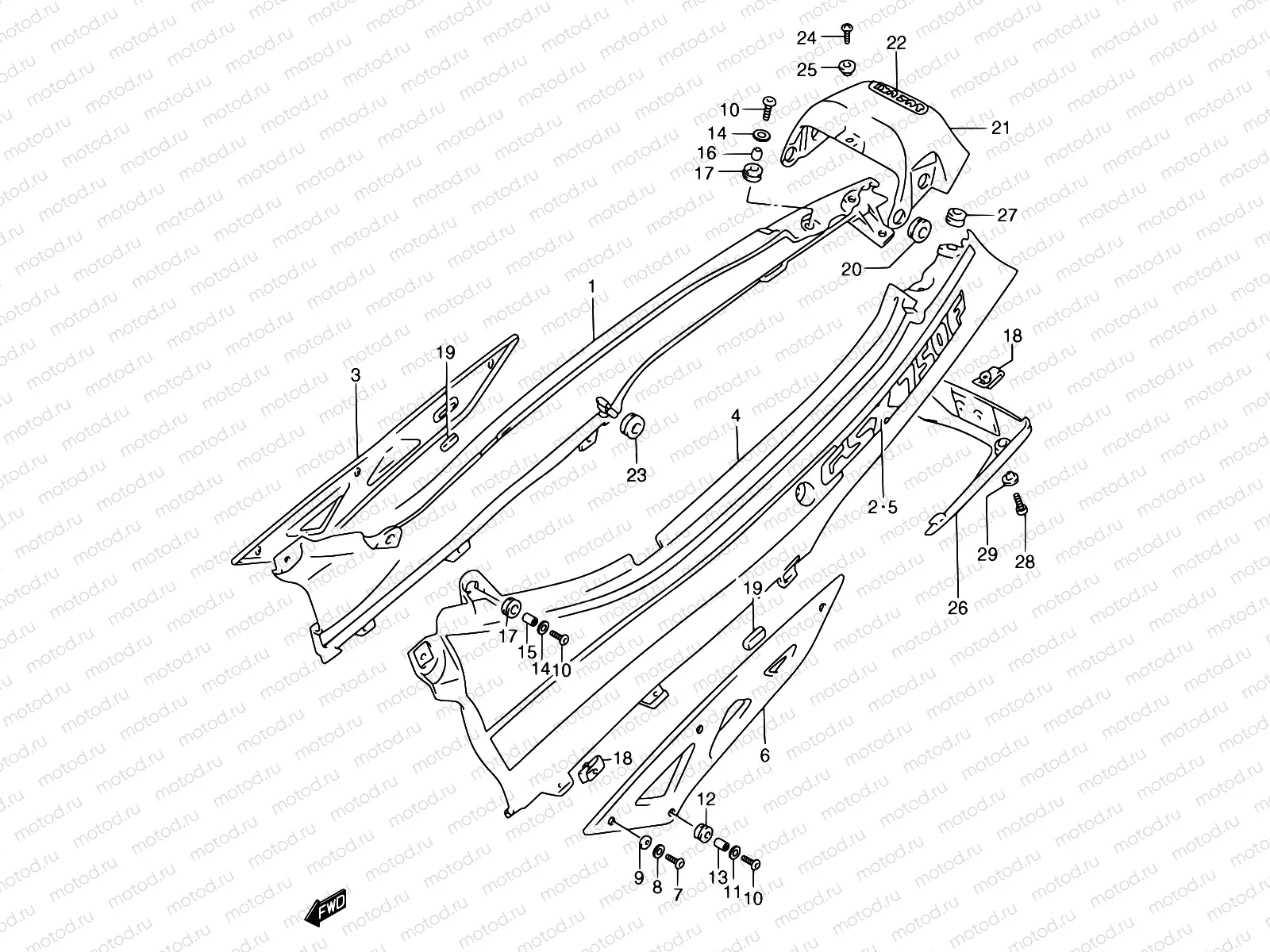

36A - FRAME COVER (MODEL M)

36A - FRAME COVER (MODEL M)
Например: 47110-21C00-33J
1
47110-21C00-33J
over, frame rh (black)
1
47110-21C00-28V
over, frame rh (red)
1
47111-20C01
OVER, FRAME RH (BLACK)
2
68130-20C21-0ZF
.tape set, rh
2
68130-20C21-0ZG
.tape set, rh
2
68130-20C21-0ZH
.tape set, rh
3
47131-20C00
over,frame r
4
47210-21C00-33J
over, frame lh (black)
4
47210-21C00-28V
over, frame lh (red)
4
47211-20C01
OVER, FRAME LH (BLUE)
5
68140-20C21-0ZF
.tape set, lh
5
68140-20C21-0ZG
.tape set, lh
5
68140-20C21-0ZH
.tape set, lh
6
47231-20C00
over frame l
7
09120-06005
Screw
8
09160-06129
Шайба,6.5X16X1
102 ₽/шт
9
09320-06501
Шайба
2 420 ₽/шт
10
09139-06030
Винт (6X16)
194 ₽/шт
11
09160-06054
Шайба
129 ₽/шт
12
09320-08509
Cushion(8X22X7)
210 ₽/шт
13
09180-06092
SPACER(6.2X8.3X6.1)
226 ₽/шт
14
09160-06109
Шайба
85 ₽/шт
15
09180-06283
Кольцо/шайба
162 ₽/шт
16
09180-06038
ВТУЛКА
1 020 ₽/шт
17
09320-09016
РЕЗИНКА
162 ₽/шт
18
47153-19C01
PLATE,FRAME COVER
395 ₽/шт
19
47161-20C00
ZITTING
20
09308-16006
Втулка
1 720 ₽/шт
21
47311-20C01
OVER, FRAME CENTER (GREEN)
21
47310-21C00-28V
over, frame center (red)
22
68271-34A00-13L
Emblem,suzuki
22
68271-34A00-0JW
EMBLEM
1 141 ₽/шт
23
09320-08527
Cushion
1 640 ₽/шт
24
02142-0610B
Винт держатель
85 ₽/шт
25
09169-06011
Пластина замка
759 ₽/шт
26
47321-20C00
over,frame rr.
27
94433-26B01
Cushion
28
02142-0616A
Болт
81 ₽/шт
29
09169-06011
Пластина замка
759 ₽/шт
