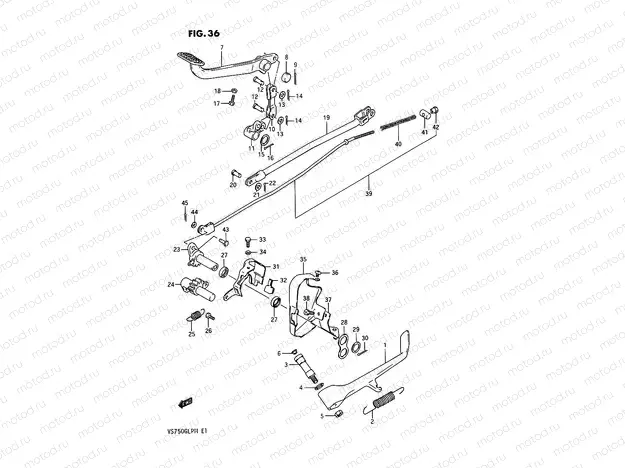

36 - PROP STAND - REAR BRAKE (MODEL F)

36 - PROP STAND - REAR BRAKE (MODEL F)

Например: 42310-38A00

1

42310-38A00

Stand, prop

2

09443-15026-XC0

Spring

3

42341-38B01

OLT,PROP STAND

708 ₽/шт

4

09181-15158

ШАЙБА САТЕЛЛИТОВ ДИФФЕРЕНЦИАЛА

194 ₽/шт

5

08310-00107

Гайка

85 ₽/шт

6

43575-34500

CAP

170 ₽/шт

7

43100-38A00

Pedal assy, brake

8

43135-07A02

CAP,BRAKE PEDAL

559 ₽/шт

9

04111-3030A

Стопор

81 ₽/шт

10

43230-38A02

LINK,BRAKE ROD NO.1

1 443 ₽/шт

11

43260-38A00

rm, brake pedal link no.1

12

09200-08055

PIN

2 310 ₽/шт

13

08322-01087

Шайба

81 ₽/шт

14

04111-2015A

Штифт

81 ₽/шт

15

09160-16043

Шайба

1 020 ₽/шт

16

04111-3030A

Стопор

81 ₽/шт

17

01500-06207

Болт

81 ₽/шт

18

08310-00067

Гайка

81 ₽/шт

19

43270-38A00

Link, brake rod no.2

20

09200-08055

PIN

2 310 ₽/шт

21

08322-01087

Шайба

81 ₽/шт

22

04111-2015A

Штифт

81 ₽/шт

23

43120-38A00

rm, brake rod

24

43280-38A00

rm, brake pedal link no.2

25

09443-13018

Пружина

2 310 ₽/шт

26

01500-0620A

Болт

81 ₽/шт

27

09284-17002

Seal

28

43285-38A00

Plate, brake pedal arm

29

09160-17036

Washer

30

04111-3030A

Стопор

81 ₽/шт

31

43250-38A00

Cover, brake rod arm inner

32

43255-38A00

Grommet, brake cover

33

01500-06107

Болт

85 ₽/шт

34

08321-01067

Шайба, стопорная

81 ₽/шт

35

43295-38A00

Cover, brake rod arm

36

02142-06107

Болт

85 ₽/шт

36

02142-0610B

Винт держатель

85 ₽/шт

37

43290-38A00

Bracket, brake rod arm cover

38

09128-06044

SCREW(6X10)

129 ₽/шт

39

43300-38A01

Rod assy, rear brake

40

09440-09004

SPRING

129 ₽/шт

41

09209-13018

Стопор

204 ₽/шт

42

09150-06010

Гайка

194 ₽/шт

43

09200-08056

.pin

44

08322-01087

Шайба

81 ₽/шт

45

04111-2020A

Штифт

81 ₽/шт
