Главная Каталог товаров SUZUKI EPC 700 cm³ - 1099 cm³ SUZUKI GSX 750 SUZUKI GSX750F K (E03,E28,E33) SUZUKI 36 - FRAME COVER (MODEL K/L)

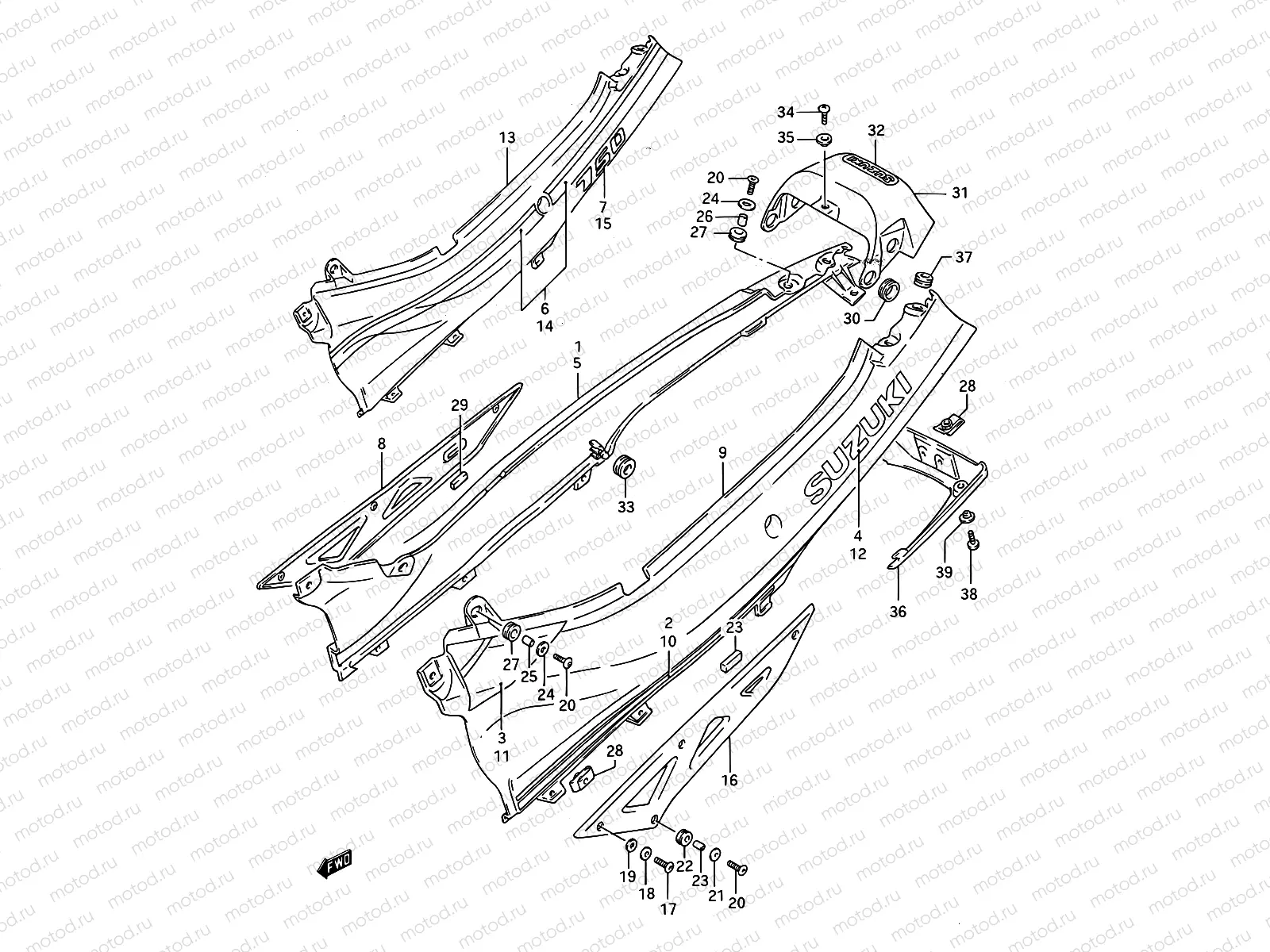

36 - FRAME COVER (MODEL K/L)

36 - FRAME COVER (MODEL K/L)

Например: 47110-20C10-24V

1

47110-20C10-24V

over, frame rh (blue)

1

47110-20C11-24V

over, frame rh (blue)

1

47110-20C10-0FP

over, frame rh (silver)

1

47110-20C11-0FP

over, frame rh (silver)

2

68135-20C00-3DB

.tape, rh no.1

2

68135-20C00-69L

.tape, rh no.1

3

68136-20C00-3CW

.tape, rh no.2

3

68136-20C00-3CY

.tape, rh no.2

4

68111-43400-13L

Emblem,fuel tan

4

68111-43400-019

Emblem (Black)

8

47131-20C00

over,frame r

9

47211-20C01

OVER, FRAME LH (BLUE)

9

47210-20C11-24V

over, frame lh (blue)

9

47211-20C01

OVER, FRAME LH (BLUE)

9

47210-20C11-0FP

over, frame lh (silver)

10

68145-20C00-3DB

.tape, lh no.1

10

68145-20C00-69L

.tape, lh no.1

11

68146-20C00-3CW

.tape, lh no.2

11

68146-20C00-3CY

.tape, lh no.2

12

68111-43400-13L

Emblem,fuel tan

12

68111-43400-019

Emblem (Black)

16

47231-20C00

over frame l

17

09120-06005

Screw

18

09160-06129

Шайба,6.5X16X1

102 ₽/шт

19

09320-06501

Шайба

2 420 ₽/шт

20

09139-06030

Винт (6X16)

194 ₽/шт

21

09160-06054

Шайба

129 ₽/шт

22

09320-08509

Cushion(8X22X7)

210 ₽/шт

23

09180-06092

SPACER(6.2X8.3X6.1)

226 ₽/шт

24

09160-06109

Шайба

85 ₽/шт

25

09180-06283

Кольцо/шайба

162 ₽/шт

26

09180-06038

ВТУЛКА

1 020 ₽/шт

27

09320-09016

РЕЗИНКА

162 ₽/шт

28

47153-19C01

PLATE,FRAME COVER

395 ₽/шт

29

47161-20C00

ZITTING

30

09308-16006

Втулка

1 720 ₽/шт

31

47311-20C01

OVER, FRAME CENTER (GREEN)

32

68271-34A00-13L

Emblem,suzuki

32

68271-34A01-20G

Emblem,"suzuki"

399 ₽/шт

33

09320-08527

Cushion

1 640 ₽/шт

34

02142-0610B

Винт держатель

85 ₽/шт

35

09169-06011

Пластина замка

759 ₽/шт

36

47321-20C00

over,frame rr.

37

94433-26B01

Cushion

38

02142-0616A

Болт

81 ₽/шт

39

09169-06011

Пластина замка

759 ₽/шт
