Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VL 1500 Boulevard C90 SUZUKI VL1500 K9 Boulevard C90 SUZUKI 36 - FOOTREST

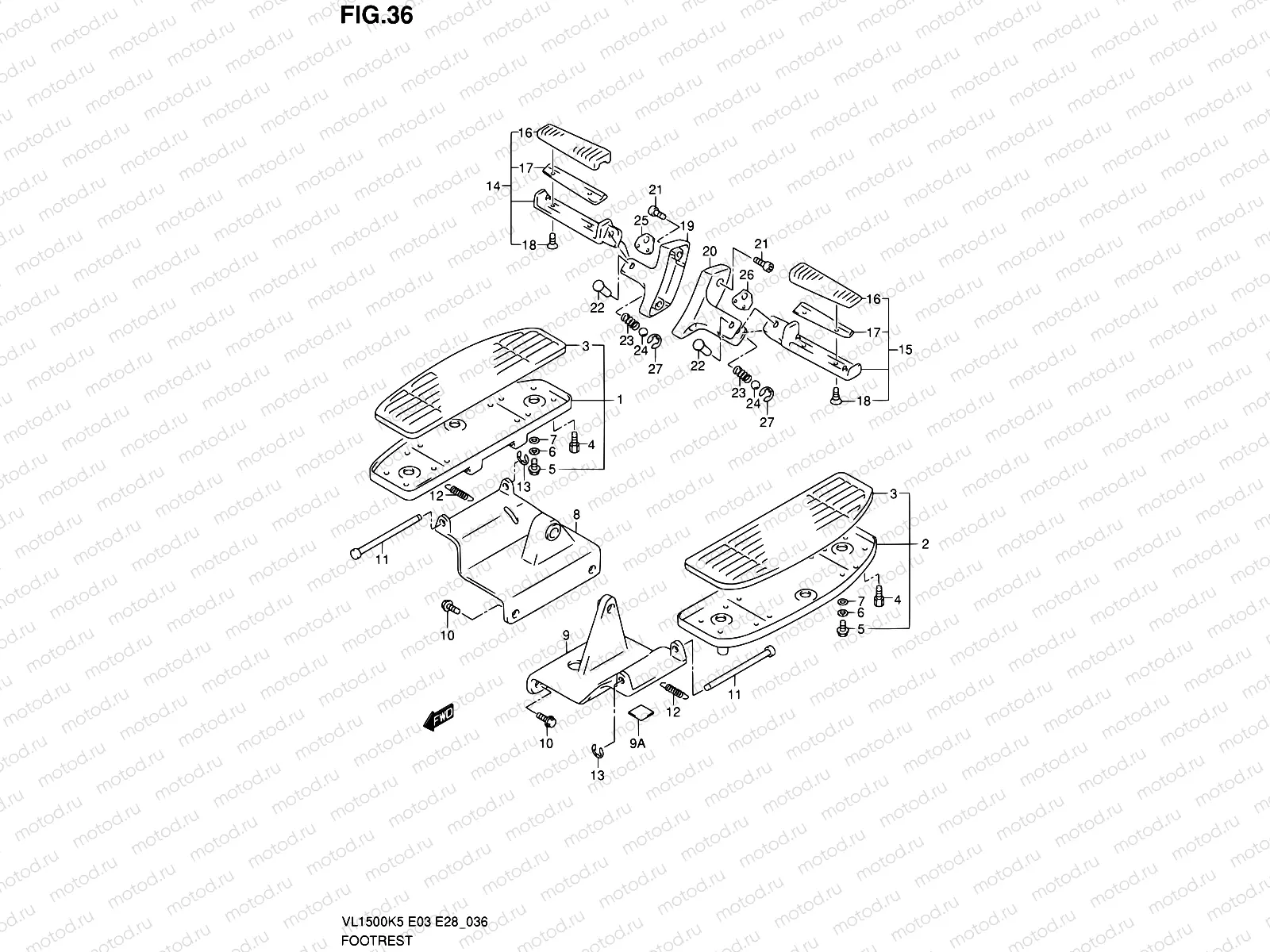

36 - FOOTREST

36 - FOOTREST

Например: 43501-10F12

1

43501-10F12

ootrest Assy,front,r

15 484 ₽/шт

2

43502-10F12

Repose pieds (FRONT LH)

3

43550-10F10

Резина

4 653 ₽/шт

4

43576-07D01

БОЛТ

1 066 ₽/шт

5

01550-0610B

Болт

85 ₽/шт

6

09160-06158

Шайба

1 090 ₽/шт

7

09320-10077

Cushion

1 720 ₽/шт

8

43510-10F00

BRACKET,FR FOOTREST,R

15 796 ₽/шт

9

43520-10F00

BRACKET,FR FOOTREST,L

15 796 ₽/шт

9

61544-94500

Уплотнение

106 ₽/шт

10

01580-1035B

Болт

2 620 ₽/шт

11

43539-10F00

PIN,FR FOOTREST

493 ₽/шт

12

09443-11033

Пружина

2 740 ₽/шт

13

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт

14

43600-38E01

Repose pieds (PILLION RH)

15

43700-38E01

Footrest Assy,pillion,l

11 645 ₽/шт

16

43612-38A10

Footrest rubber (pillion)

17

43632-38A00

PLATE,RUBBER STOPPER

368 ₽/шт

18

09127-05017

Болт

1 370 ₽/шт

19

43811-10F10

BRACKET,PILLION FOOTREST,R

35 360 ₽/шт

20

43821-10F10

BRACKET,PILLION FOOTREST,L

35 360 ₽/шт

21

09106-08165

БОЛТ

242 ₽/шт

22

09208-08010

PIN(8X33.2)

1 720 ₽/шт

23

09440-05005

Пружина

113 ₽/шт

24

06111-07004

Шарик-защёлка №1

81 ₽/шт

25

43816-10F00

PLATE,PILLION FOOTREST,R

430 ₽/шт

26

43826-10F00

PLATE,PILLION FOOTREST,L

430 ₽/шт

27

08332-1106B

СТОПОРНОЕ КОЛЬЦО

102 ₽/шт
