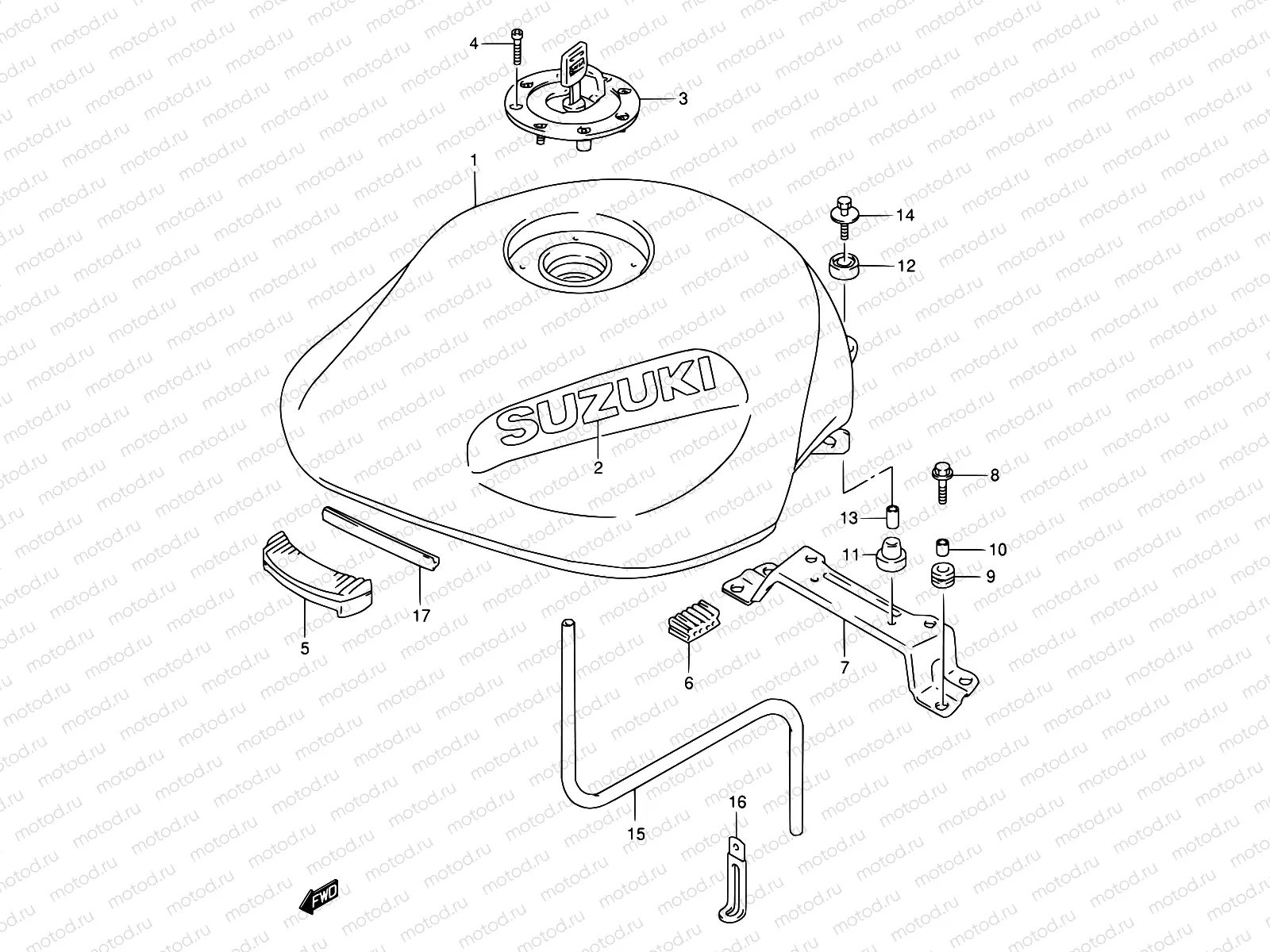

35A - FUEL TANK (MODEL V/W/X)

35A - FUEL TANK (MODEL V/W/X)

Например: 44100-26E10-28V

1

44100-26E10-28V

Tank assy,fuel

1

44100-26E10-Y0V

Tank assy,fuel

92 752 ₽/шт

1

44100-26E10-33J

Tank assy,fuel

2

68111-47C10-29F

Emblem,tank

2

68111-47C10-13L

EMBLEM

1 286 ₽/шт

2

68111-47C10-24G

EMBLEM

1 544 ₽/шт

2

68111-47C10-019

EMBLEM

1 263 ₽/шт

3

44201-01833

Fuel cap

4

09106-05017

БОЛТ

113 ₽/шт

5

44511-34A00

CUSHION,FUEL TANK FR

3 655 ₽/шт

6

45149-31300

CUSHION,SEAT(40X20X15)

510 ₽/шт

7

44530-26E00

Кронштейн топливного бака

3 597 ₽/шт

8

09116-06150

БОЛТ

136 ₽/шт

9

09320-09009

РЕЗИНКА

187 ₽/шт

10

09169-06062

Кольцо/шайба

114 ₽/шт

11

09320-10038

CUSHION

115 ₽/шт

12

09320-14017

CUSHION

114 ₽/шт

13

09180-06271

Кольцо/шайба

172 ₽/шт

14

09116-06172

Болт

153 ₽/шт

15

09352-70104-00B

Hose(7X10.2X2000)

1 406 ₽/шт

16

09404-10417

Струбцина L:97

1 330 ₽/шт

17

68241-04X50-00B

MOLDING

1 696 ₽/шт
