Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI VS 1400 Intruder SUZUKI VS1400GLF N Intruder (E03,E28,E33) SUZUKI 35A - FUEL TANK (MODEL L/M/N)

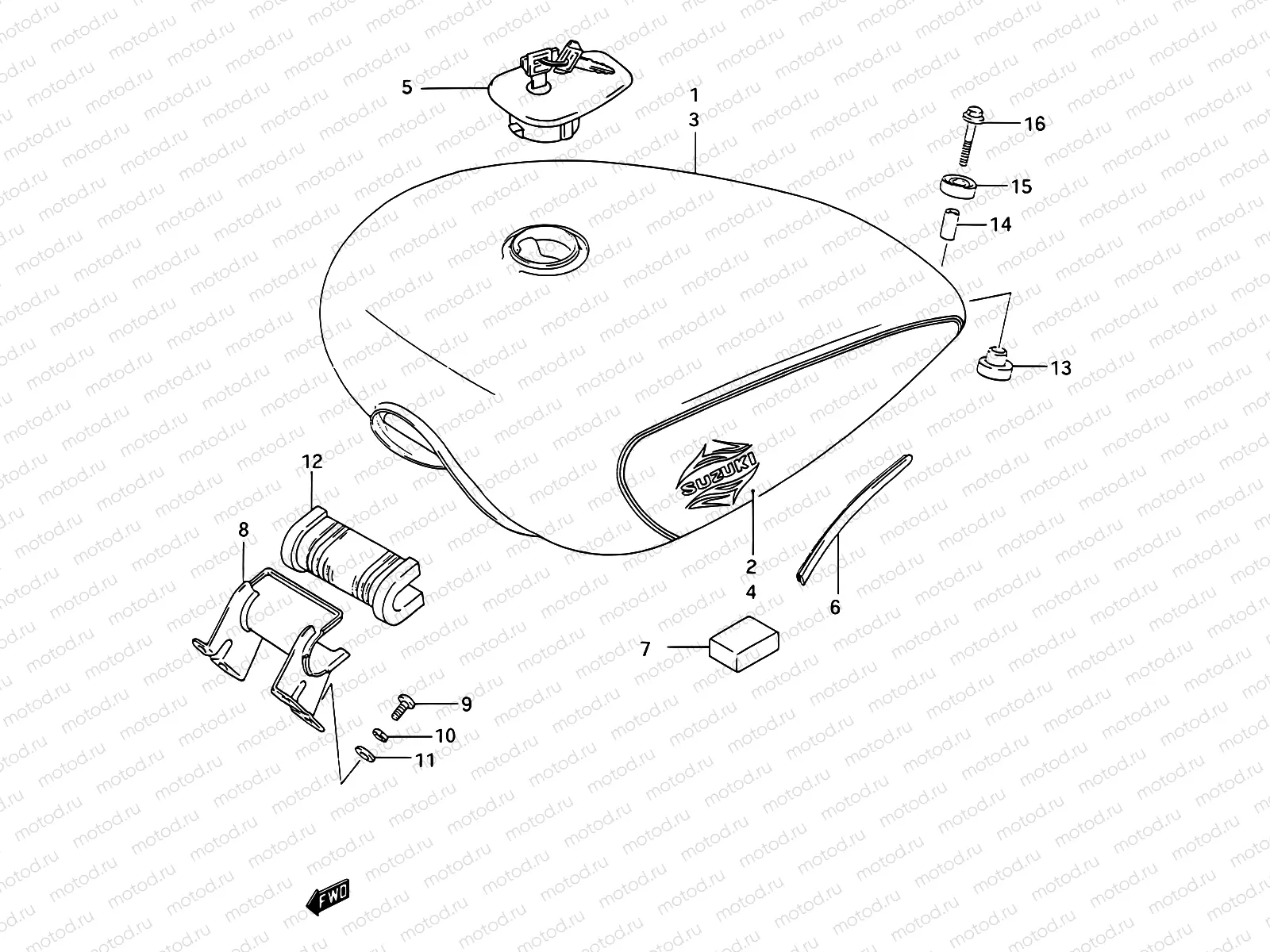

35A - FUEL TANK (MODEL L/M/N)

35A - FUEL TANK (MODEL L/M/N)
Например: 44100-38B70-13Z
1
44100-38B70-13Z
Fuel tank (Black)
1
44100-38B70-24D
Fuel tank (Maroon)
2
68110-38B00-1KM
.tape set, fuel tank
2
68110-38B00-1KN
.tape set, fuel tank
5
44200-38820
CAP SET,FUEL TANK
9 384 ₽/шт
5
44200-38851
Cap set,tank
5
997SO-38870
6
68241-04X50-00B
MOLDING
1 696 ₽/шт
7
56314-48B10
CUSHION
210 ₽/шт
8
44250-38B00-019
Кронштейн
3 597 ₽/шт
9
02142-0616A
Болт
81 ₽/шт
10
08321-0106A
Шайба
81 ₽/шт
11
08322-0106A
Шайба
81 ₽/шт
12
44511-38B01
CUSHION,FUEL TANK FR
1 036 ₽/шт
13
09320-10038
CUSHION
115 ₽/шт
14
09180-06274
Кольцо/шайба
275 ₽/шт
15
09320-14013
Валик топливного бака
221 ₽/шт
16
01550-0635B
Болт
112 ₽/шт
