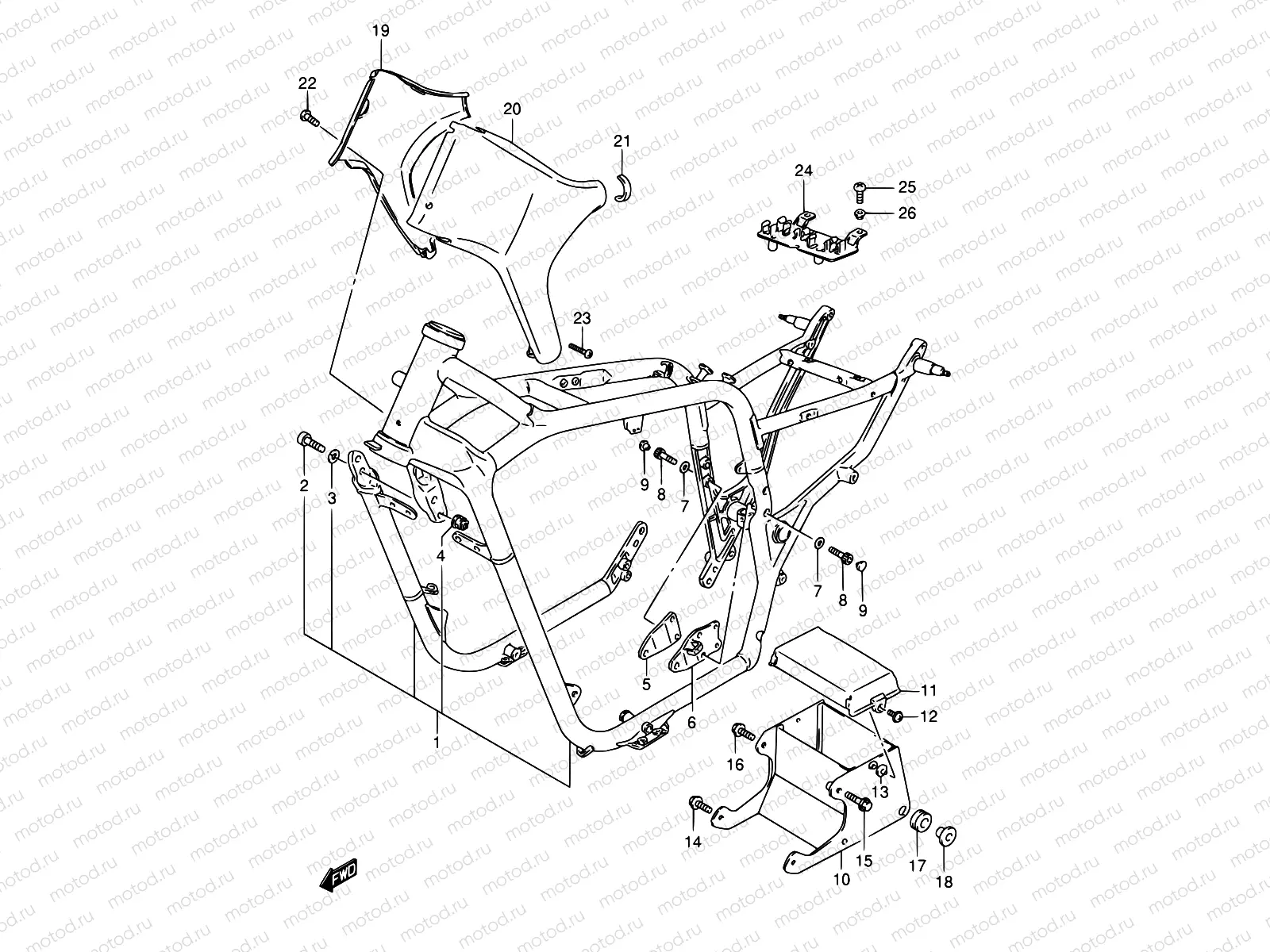

35A - FRAME (MODEL K5/K6/K7/K8)

35A - FRAME (MODEL K5/K6/K7/K8)
Например: 41101-38822-YAY
1
41101-38822-YAY
Frame set
1
41101-38822-YLC
Frame set (gold)
2
09106-10019
BOLT(10X33)
2 310 ₽/шт
3
09164-10010
Шайба
3 250 ₽/шт
4
08319-3110B
Гайка
1 920 ₽/шт
5
41951-38B00-YAY
Plate, no.4, rh (black)
5
41951-38B00-YLC
Plate, no.4, rh (gold)
6
41960-38B00-YAY
Plate, no.4, lh (black)
6
41960-38B00-YLC
Plate, no.4, lh (gold)
7
09164-08015
Шайба
162 ₽/шт
8
09106-08072
BOLT(8X32)
3 010 ₽/шт
9
09250-06004
CAP(OD:14.5)
97 ₽/шт
10
41540-38B02
HOLDER,BATTERY
11 104 ₽/шт
11
33658-38B00
Крышка аккумулятора
2 295 ₽/шт
12
09138-05012
Болт
97 ₽/шт
13
09169-05014
Шайба
2 181 ₽/шт
14
01550-0616B
БОЛТ
81 ₽/шт
15
01551-0820B
OLT
1 640 ₽/шт
16
09103-08222
BOLT(8X40)
179 ₽/шт
17
09320-12042
CUSHION
2 230 ₽/шт
18
09301-08009
Кольцо/шайба
3 400 ₽/шт
19
47350-38B01-YAY
Cover, frame head rh (black)
19
47350-38B01-YLC
over, frame head rh (gold)
20
47360-38B11-YAY
COVER,FRAME HEAD,L(BLACK)
16 930 ₽/шт
20
47360-38B11-YLC
over, frame head rh (gold)
21
47359-38B00
PROTECTOR,FRAME HEAD COVER
164 ₽/шт
22
09125-06117
Болт
1 330 ₽/шт
23
02112-0425B
Болт
85 ₽/шт
24
47411-38B02
HOLDER,COUPLER
1 263 ₽/шт
25
02142-0616B
Болт
1 060 ₽/шт
26
09169-06010
WASHER
211 ₽/шт
