Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI RG 125 Gamma SUZUKI RG125FU P Gamma SUZUKI 35A - FRAME COVER (MODEL P)

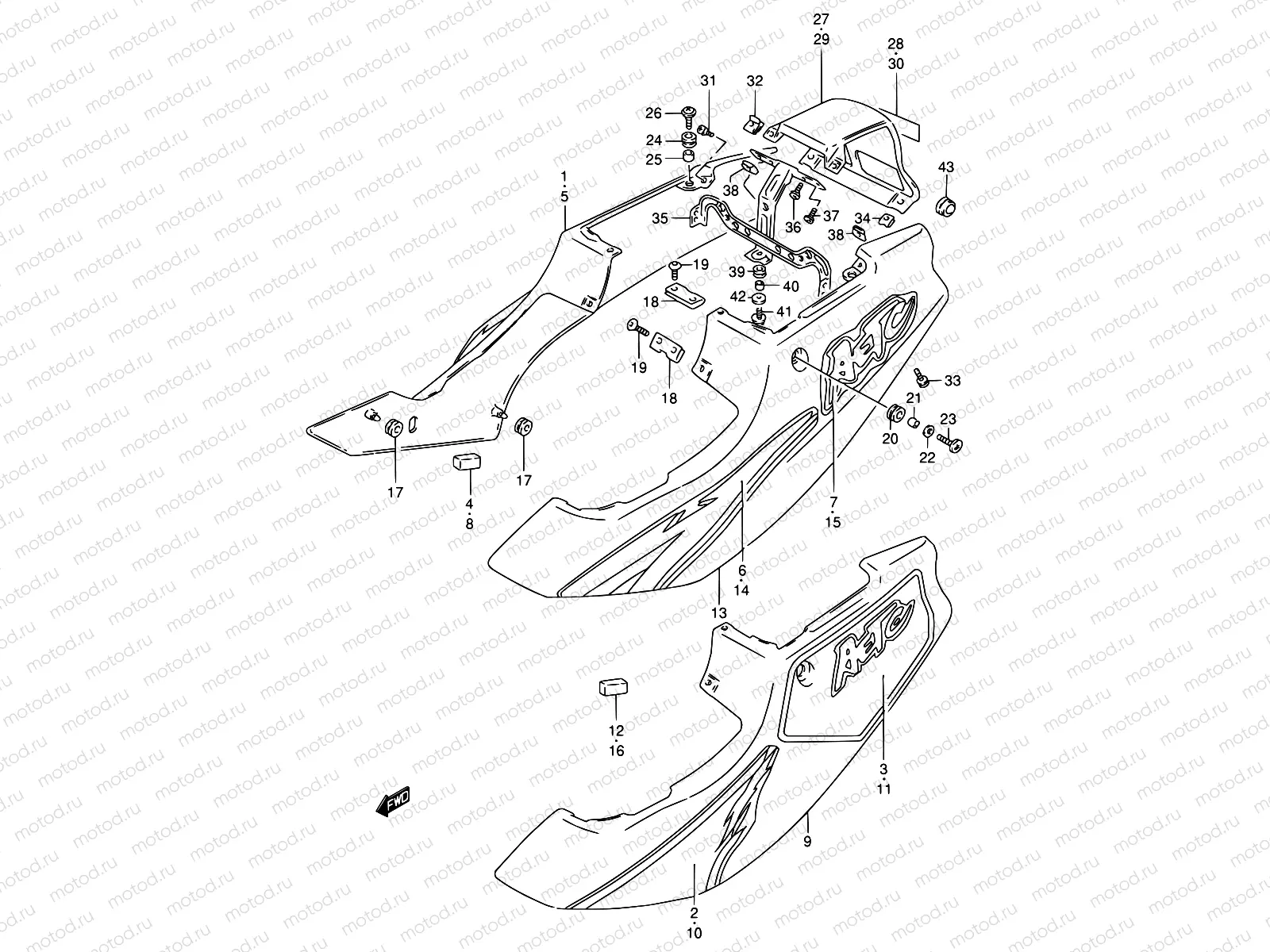

35A - FRAME COVER (MODEL P)

35A - FRAME COVER (MODEL P)

Например: 47110-19D80-0JW

1

47110-19D80-0JW

Cover, frame rh (white)

1

47110-19D90-0JW

Cover, frame rh (white)

2

68135-19D20-A5H

.tape, frame cover rh

3

68136-19D20-A5F

.tape, zekken rh

3

68136-19D30-A5F

.tape, zekken rh

4

47161-19D00

RUBBER,FRAME COVER

5

47110-19DV0-019

5

47110-19DB0-019

Cover, frame rh (black)

6

68135-19D10-A5E

.tape, frame cover rh

7

68131-19D20-A5F

.emblem

8

47161-19D00

RUBBER,FRAME COVER

9

47210-19D80-0JW

Cover, frame lh (white)

9

47210-19D90-0JW

Cover, frame lh (white)

10

68145-19D20-A5H

.tape, frame cover lh

11

68146-19D20-A5F

.tape, zekken lh

11

68146-19D30-A5F

.tape, zekken lh

12

47161-19D00

RUBBER,FRAME COVER

13

47210-19DV0-019

13

47210-19DB0-019

Cover, frame lh (black)

14

68145-19D10-A5E

.tape set, frame cover lh

15

68131-19D20-A5F

.emblem

16

47161-19D00

RUBBER,FRAME COVER

17

09320-08527

Cushion

1 640 ₽/шт

18

47168-12C00

Nut,cntr cover

19

02142-0510A

Болт

82 ₽/шт

20

94433-26B01

Cushion

21

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

22

09160-06054

Шайба

129 ₽/шт

23

09139-06050

Болт

187 ₽/шт

24

94433-26B01

Cushion

25

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

26

09136-06109

Болт

1 640 ₽/шт

27

47311-19D00-0JW

COVER,FRAME,CENTER

27

47310-19D90-0JW

COVER COMP,FRAME,CENTER

28

68166-04700-1LF

.emblem

29

47311-19D00-019

29

47310-19D90-019

Cover, frame center (black)

30

68166-19D00-N02

.emblem

31

03241-1512B

Болт

82 ₽/шт

32

09148-05019

Гайка

102 ₽/шт

33

03141-0512A

Болт

81 ₽/шт

34

09148-05038

ГАЙКА

97 ₽/шт

35

47410-22D12

Bracket,tail l.

36

03541-0412A

ШАЙБА

85 ₽/шт

37

03241-1512B

Болт

82 ₽/шт

38

09148-05019

Гайка

102 ₽/шт

39

09320-08501

САЙЛЕНТБЛОК

1 880 ₽/шт

40

09180-06248

Кольцо/шайба

179 ₽/шт

41

01500-06207

Болт

81 ₽/шт

42

09160-06084

Шайба 6.5X18X1

81 ₽/шт

43

09308-17002

Grommet
