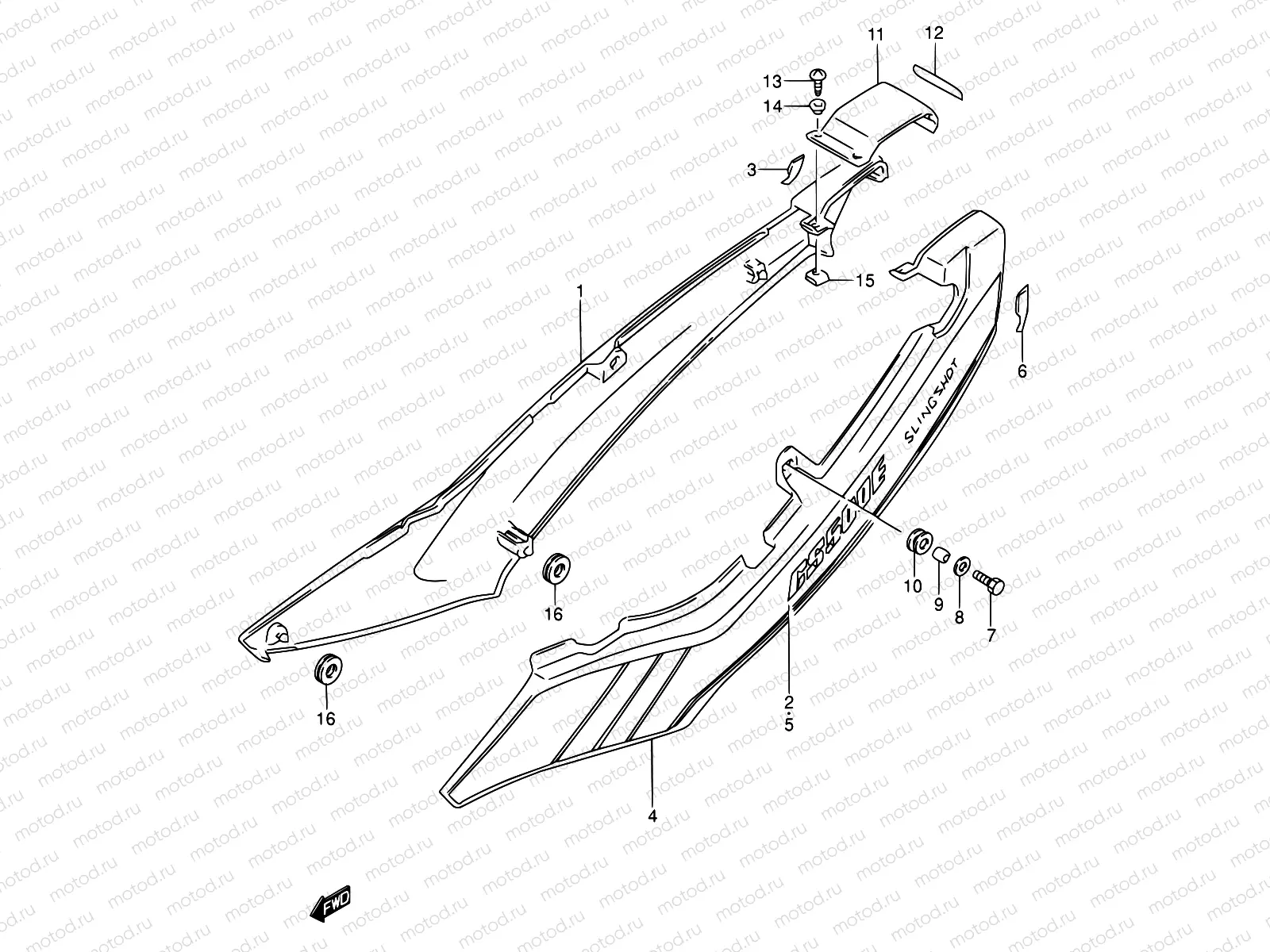

35A - FRAME COVER (MODEL M)

35A - FRAME COVER (MODEL M)
Например: 47110-01D50-0FL
1
47110-01D50-0FL
Cover, frame rh (green)
1
47110-01D50-0ZK
Cover, frame rh (blue)
1
47110-01D50-28V
Cover, frame rh (red)
1
47111-01D00
Cover,frame,r
2
68130-01D41-F95
Tape set,rh cvr
2
68130-01D41-F96
.tape set, rh
2
68130-01D41-F93
.tape set, rh
2
68130-01D41-F94
.tape set, rh
3
47119-01D00
Protector,frame
4
47210-01D50-0FL
Cover, frame lh (green)
4
47210-01D50-0ZK
Cover, frame lh (blue)
4
47210-01D50-28V
Cover, frame lh (red)
4
47211-01D00
Cover frame,lh
5
68140-01D41-F95
.tape set, lh
5
68140-01D41-F96
.tape set, lh
5
68140-01D41-F93
.tape set, lh
5
68140-01D41-F94
Tape set,frame
6
47219-01D00
PROTECTOR,FRAME COVER,L
571 ₽/шт
7
02112-06207
ШАЙБА
85 ₽/шт
8
09160-06109
Шайба
85 ₽/шт
9
09180-06283
Кольцо/шайба
162 ₽/шт
10
09320-09016
РЕЗИНКА
162 ₽/шт
11
47215-01D00
COVER,FRAME CTR(NON PAINT)
3 597 ₽/шт
11
47310-01D20-33J
Cover,fr center
12
68166-01D00-0JW
Эмблема
454 ₽/шт
13
03241-M0512-A
Vis
14
09161-05017-LCP
Rondelle
15
09148-05013
Гайка
97 ₽/шт
16
09320-08527
Cushion
1 640 ₽/шт
