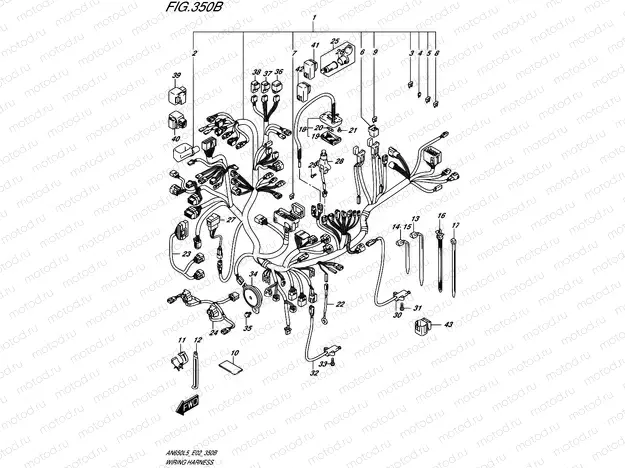

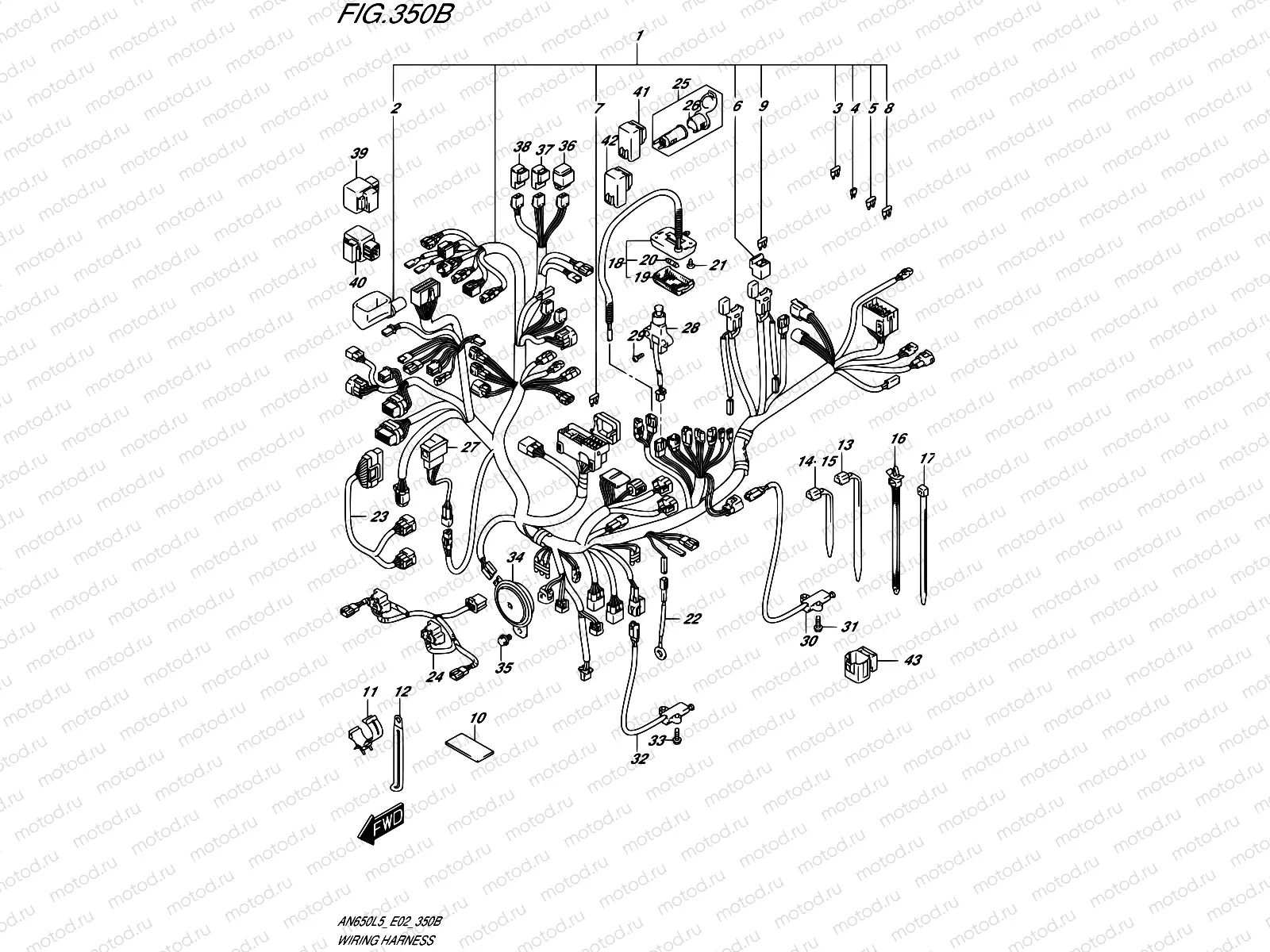

350B - WIRING HARNESS (AN650ZL5 E02)

350B - WIRING HARNESS (AN650ZL5 E02)

Например: 36610-26J31

1

36610-26J31

Harness,wiring

2

36618-41G00

Крышка

504 ₽/шт

3

09481-03502

FUSE(3A)

1 250 ₽/шт

4

09481-10504

Ограничитель,10A

1 250 ₽/шт

5

09481-15501-LCP

Fusible (10A)

6

36742-45G00

HOLDER

1 349 ₽/шт

7

09481-15501-LCP

Fusible (10A)

8

09481-20501-LCP

Fuse 5a

9

09481-40101

FUSE(40A)

4 970 ₽/шт

10

36920-08D00

PROTECTOR(30X60X3)

152 ₽/шт

11

09403-30403

CLAMP

2 270 ₽/шт

12

09404-06039

Clamp(L:65)

194 ₽/шт

13

09407-14403

КЛЕММА

221 ₽/шт

14

09407-22403

CLAMP(L:220)

1 370 ₽/шт

15

09407-18402

Струбцина (L:165)

211 ₽/шт

16

09407-11402

КОЛЬЦО

186 ₽/шт

17

09407-14407

ЗАЖИМ

221 ₽/шт

18

36210-10G00

LAMP ASSY,TRUNK BOX

4 966 ₽/шт

19

36212-79001

Линза

2 989 ₽/шт

20

09471-12073-LCP

BULB 12V.5W AN650

21

03541-0412A

ШАЙБА

85 ₽/шт

22

36851-26J02

Wire,oil Pressure Switch Lead

633 ₽/шт

23

36620-26J00

HARNESS,WIRING NO.2

12 786 ₽/шт

24

36856-26J01

Wire,headlamp l

25

39410-49F00-P4Z

TERMINAL,POWER SOURCE

2 522 ₽/шт

26

39441-49F00-P4Z

COVER

735 ₽/шт

27

37320-19H00

SWITCH ASSY,SEAT HEATER

8 680 ₽/шт

28

37980-14F00

SWITCH ASSY,TRUNK BOX LAMP

4 966 ₽/шт

29

02112-0516B

Болт

1 090 ₽/шт

30

37840-10G01

Switch Assy,side Stand

8 041 ₽/шт

31

01550-0620A

Болт

81 ₽/шт

32

37840-20E01

Switch Assy,side Stand

9 444 ₽/шт

33

01550-0620A

Болт

81 ₽/шт

34

38500-26J00

Звуковой сигнал

4 927 ₽/шт

35

01550-0812B

Болт

97 ₽/шт

36

38740-24X50

RELAY ASSY, HEAD LAMP

2 665 ₽/шт

37

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

38

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

39

38750-03G00

RELAY ASSY,DRIVE

8 602 ₽/шт

40

38750-10G00

RELAY ASSY,SCREEN

8 602 ₽/шт

41

38740-04J00

RELAY ASSY,HEADLAMP

2 287 ₽/шт

42

38740-26E01

Relay Assy,fuel Pump

2 287 ₽/шт

43

36654-06J40

CAP,TS

1 177 ₽/шт
